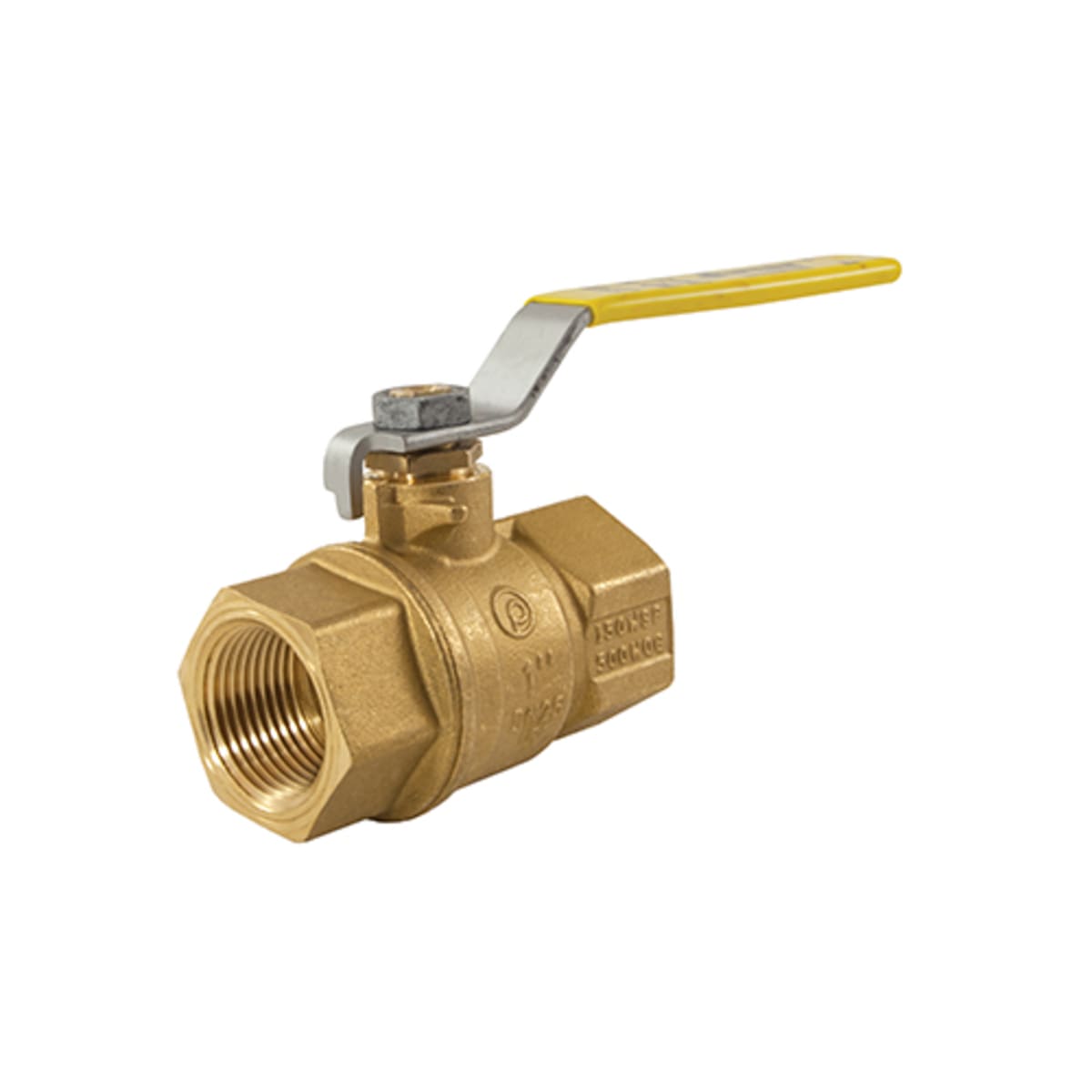

Jomar 100-704 Full Port, 2 Piece, Threaded Connection, 600 WOG

Product Description

The Jomar 100-704 is a full port, two-piece, threaded connection ball valve designed for fluid control applications. It features a sturdy brass body and an inlet to outlet length of two point seventy-one inches. This valve can handle pressures up to six hundred psi WOG, making it suitable for various plumbing and industrial uses.

• Blow-out proof stem
• Triple sealing stem with two FKM O-rings and PTFE seal
• Leak-proof stem lifetime warranty

Product Highlights

Jomar ball valves are built for reliability and efficiency in managing fluid flow. The valve’s full port design allows for maximum flow and minimal pressure loss.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 100-704

Technical Specifications

• Ball Material: TEA Coated Brass
• Body Material: Brass
• End Style: NPT
• Inlet to Outlet Length: 2.71 inches
• Nominal Size: 3/4 inches
• Pressure Rating: 600 psi WOG
• Trim Material: Brass Stem and Hostaflon TFM 1600 Seat
• Type: 2-Piece
