Jomar 100-645G Full Port, 2 Piece, Solder Connection, 600 WOG, Stainless Steel Ball and Stem

Product Description

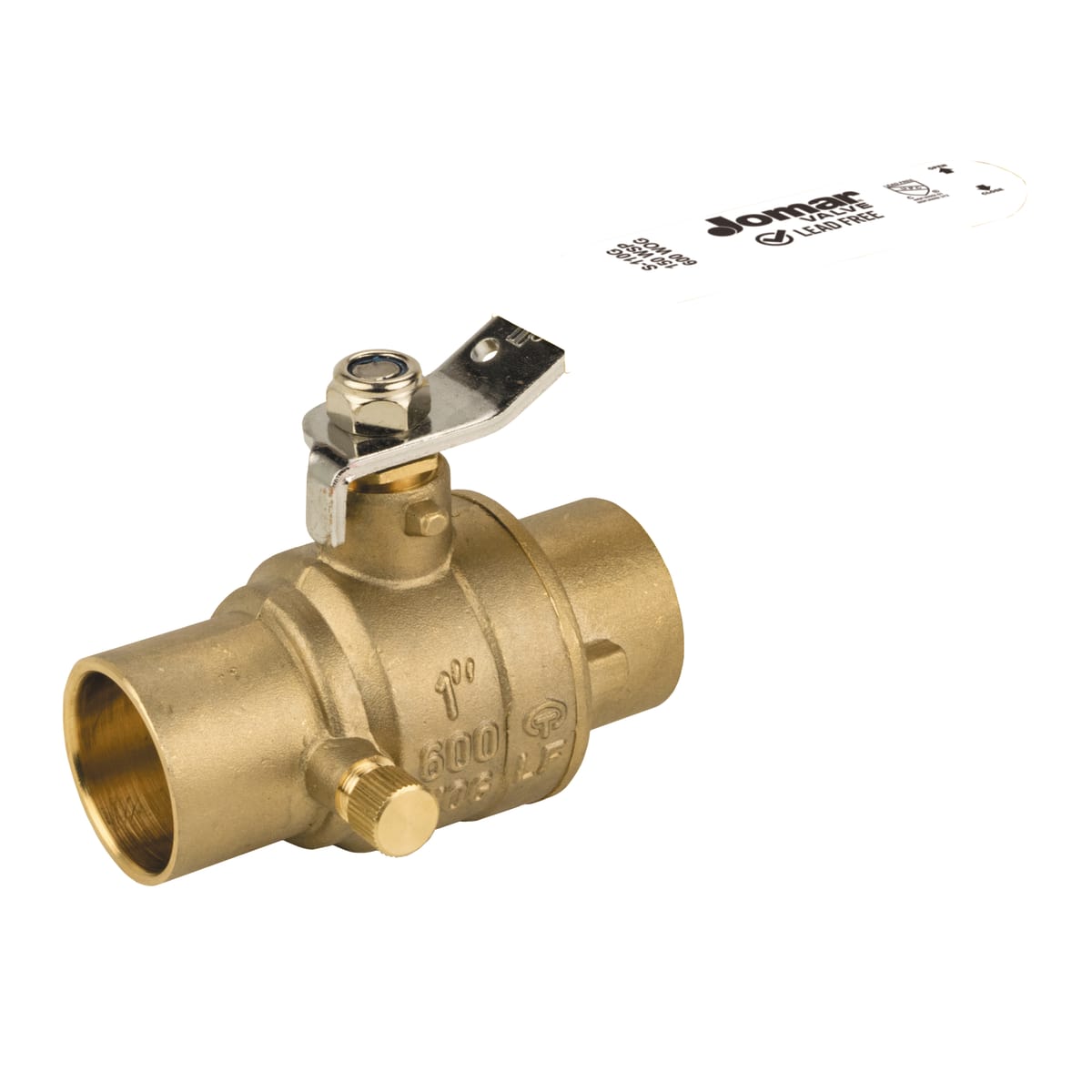

The Jomar 100-645G is a valve designed for use in plumbing systems. This ball valve features a two-piece construction and a solder connection. It operates effectively under a pressure rating of six hundred psi WOG, making it suitable for high-pressure applications. The body is made from brass, and it has a ball crafted from 304 stainless steel.

• Full Port design for maximum flow
• Durable stainless steel ball and stem
• Leak tested to ensure reliability

Product Highlights

This valve is ideal for various plumbing installations, offering durability and steadfast performance. With its robust construction, it ensures leak-free operation and longevity in demanding conditions.

Product Information

Standard Information

• Manufacturer: JOMAR
• Type: 2-Piece

Technical Specifications

• Ball Material: 304 Stainless Steel
• Body Material: Brass
• End Style: Solder
• Inlet to Outlet Length: 3.31 inches
• Nominal Size: 1 inch
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE/Buna-N
• Top to Inlet Center: 2.13 inches
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
