JOMAR 100-644G Full Port, 2 Piece, Solder Connection, 600 WOG, Stainless Steel Ball and S

Product Description

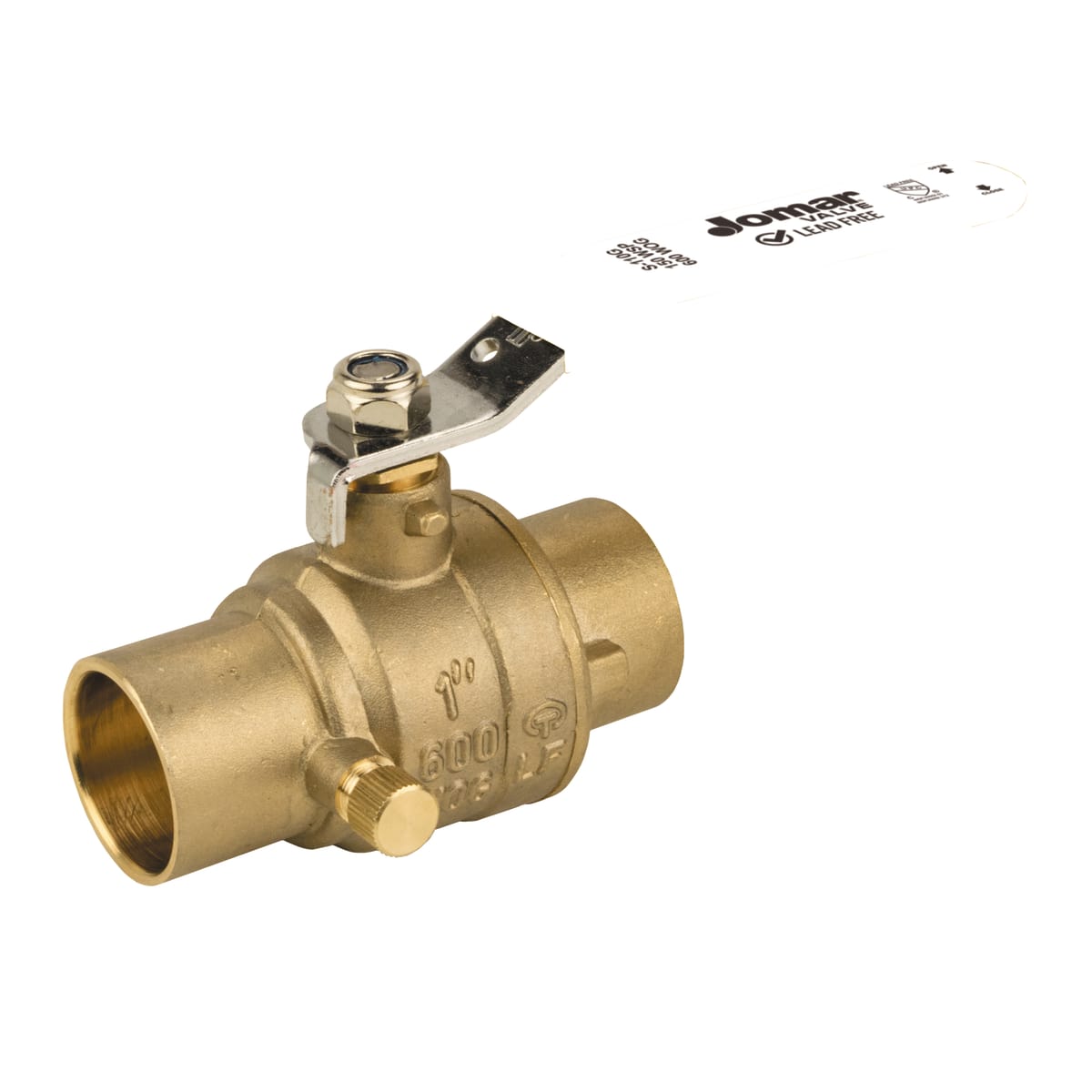

The JOMAR 100-644G is a ball valve designed for high performance and durability. This valve features a two-piece construction with a solder connection suitable for various piping applications.

• Full port design for maximum flow
• Constructed with a stainless steel ball and brass body
• Pressure rating of six hundred psi WOG

Product Highlights

This valve is ideal for plumbing systems, providing a reliable shutoff mechanism while minimizing flow restrictions.

Product Information

Standard Information

• Brand: JOMAR
• MPN: 100-644G

Technical Specifications

• Ball Material: 304 Stainless Steel
• Body Material: Brass
• End Style: Solder
• Inlet to Outlet Length: 2.76 inches
• Nominal Size: 3/4 inches
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE/Buna-N
• Top to Inlet Center: 1.97 inches
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Type: 2-Piece
