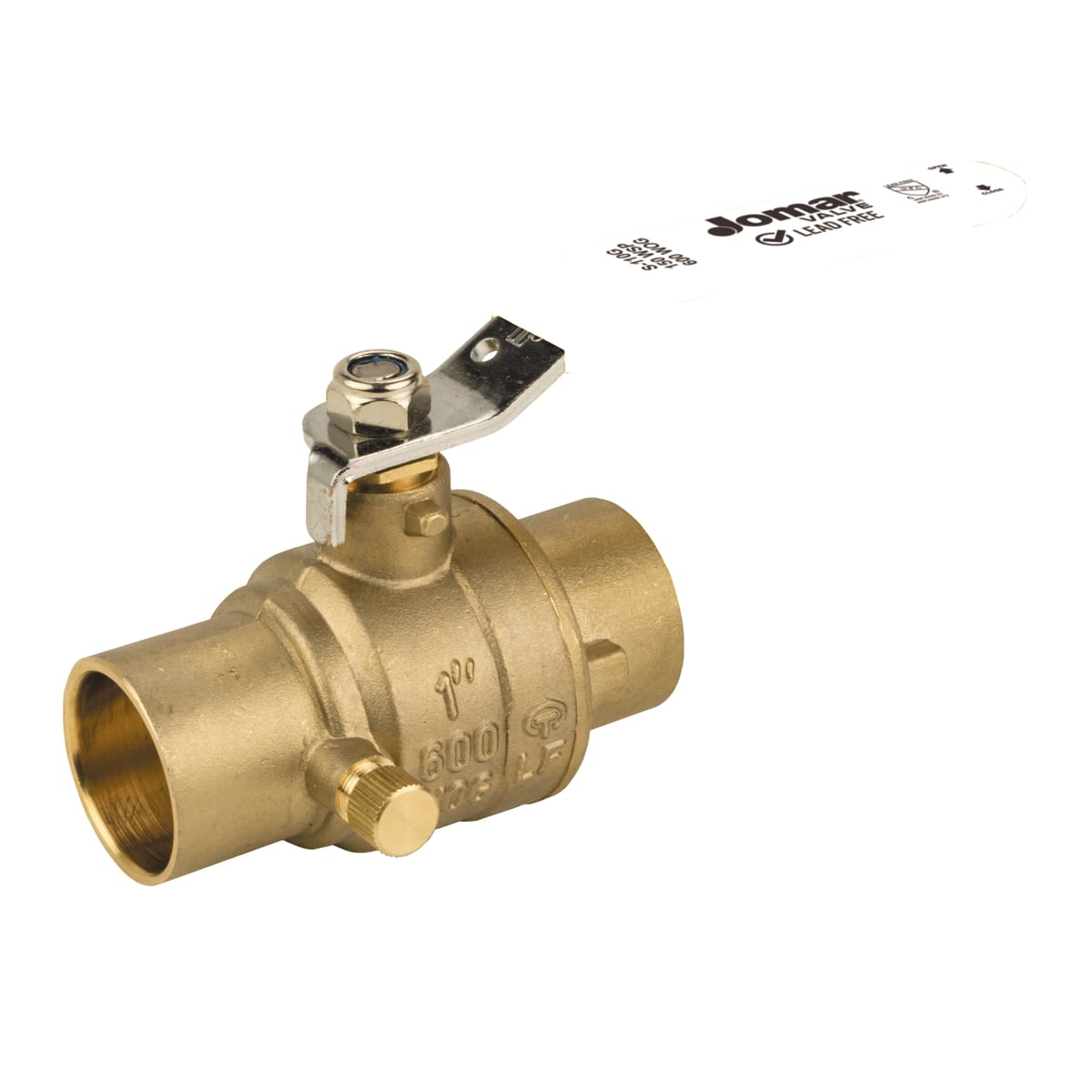

JOMAR 100-643G Full Port, 2 Piece, Solder Connection, 600 WOG, Stainless Steel Ball and Stem

Product Description

Jomar 100-643G is a two-piece ball valve designed for solder connection. This valve operates at a maximum pressure of six hundred psi WOG. The body is made of brass, and the ball is constructed from 304 stainless steel. Its design ensures a robust and leak-tested performance suitable for various plumbing applications.

• Two-piece construction
• Blow-out proof stem design
• PTFE/Buna-N softgoods

Product Highlights

This valve is suitable for heating, cooling, and plumbing applications, providing reliable flow control in piping systems.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 100-643G

Technical Specifications

• Ball Material: 304 Stainless Steel
• Body Material: Brass
• End Style: Solder
• Nominal Size: 1/2 in
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Softgoods Material: PTFE/Buna-N
• Inlet to Outlet Length: 1.93 in
• Top to Inlet Center: 1.54 in
