Jomar 100-602 Full Port, 2 Piece, Male x Female Connection, 600 WOG

Product Description

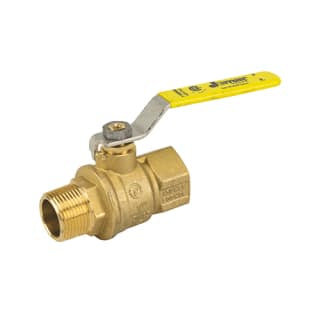

The Jomar 100-602 is a two-piece ball valve designed for efficient liquid flow management. The product features a full port and connections for male and female fittings. It has a pressure rating of 600 WOG, making it suitable for various applications in plumbing and piping systems.

• Chrome plated brass ball for durability
• Leak-proof stem with a lifetime warranty
• High vacuum rating of 29 in-Hg

Product Highlights

This valve is ideal for installations that require reliable performance under pressure. It is designed to minimize leaks and maximize flow.

Product Information

Standard Information

• Manufacturer: JOMAR
• Type: 2-Piece

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: MNPT x FNPT
• Nominal Size: 3/8 in
• Pressure Rating: 600 psi WOG
• Trim Material: Brass Stem and Hostaflon TFM 1600 Seat
• Inlet to Outlet Length: 2.26 in
• Top to Inlet Center: 1.41 in
• Softgoods Material: Hostaflon TFM/FKM
