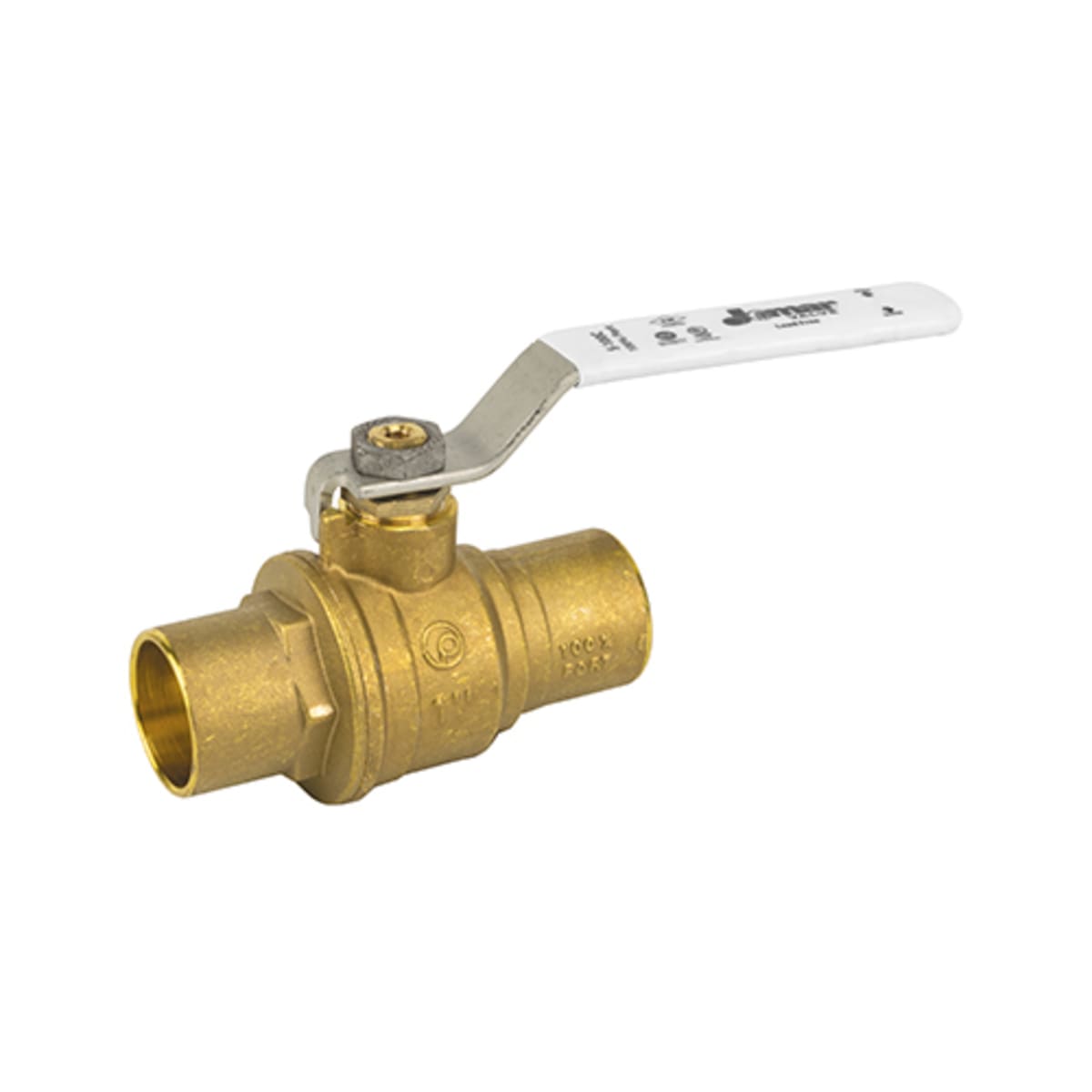

Jomar 100-419G 2 Piece, Full Port, Solder Connection, Dezincification Resistant Brass, 600 WOG

Product Description

The Jomar 100-419G is a 2-piece ball valve designed for solder connections. It offers a full port and is constructed from dezincification resistant brass to ensure durability and performance. This valve is rated to withstand pressure up to six hundred psi WOG. The inlet to outlet length measures seven point twenty-eight inches, with a top to inlet center of four point seventy-four inches.

• TEA coated brass ball
• Lifetime leak-proof stem warranty
• Manufactured to meet ASME/ANSI B16.18 standards

Product Highlights

The valve’s blow-out proof stem and low lead content make it a reliable choice for plumbing applications that require precise control and resistance to corrosion.

Product Information

Standard Information

• Manufacturer: JOMAR
• Type: 2-Piece

Technical Specifications

• Ball Material: TEA Coated Brass
• Body Material: Brass
• End Style: Solder
• Nominal Size: 2-1/2 inches
• Inlet to Outlet Length: 7.28 inches
• Top to Inlet Center: 4.74 inches
• Pressure Rating: 600 psi WOG
• Wetted Surfaces: Contains less than 0.25% lead
