Jomar 100-413G 2 Piece Full Port Solder Connection Dezincification Resistant Brass 600 WOG

Product Description

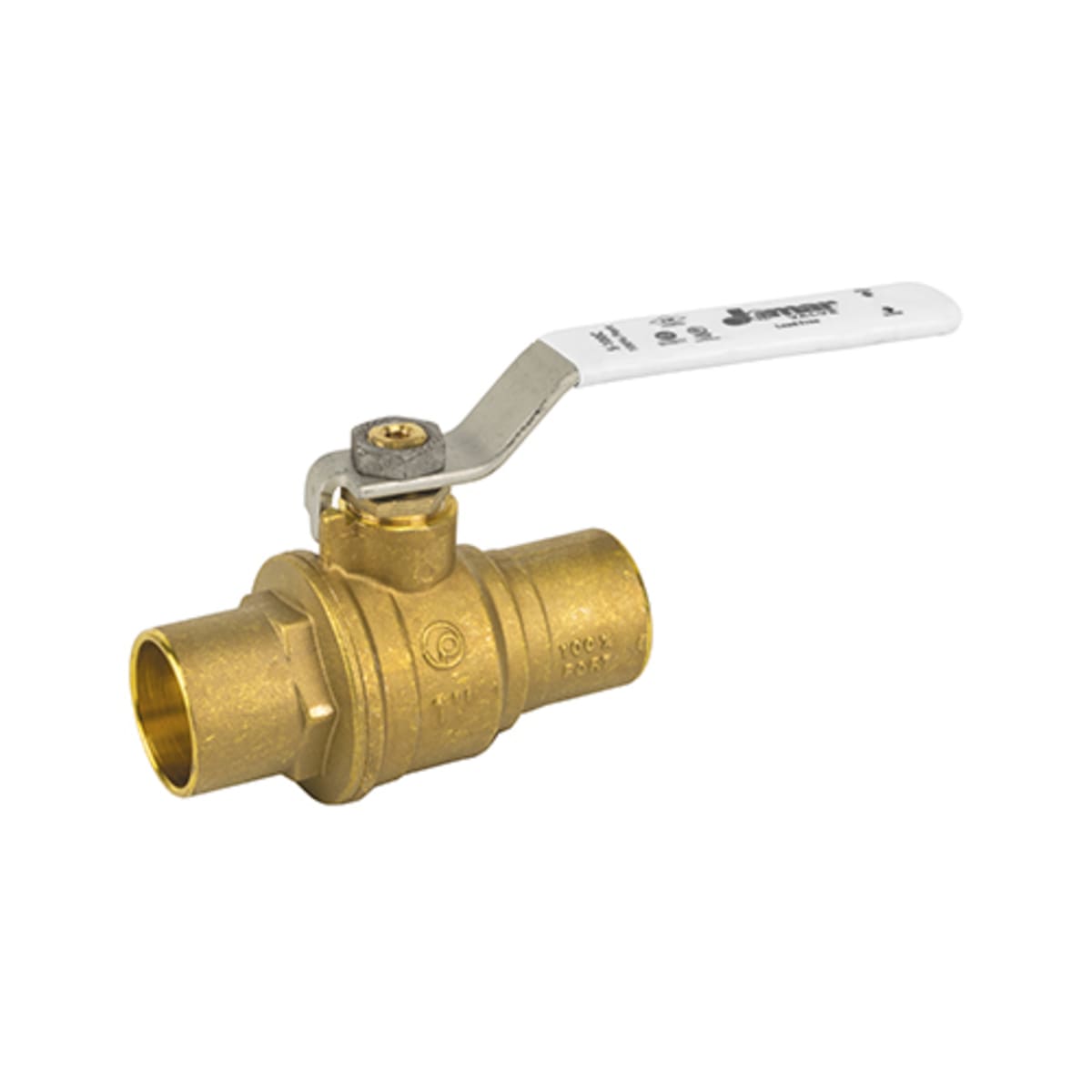

The Jomar 100-413G is a two-piece ball valve designed for solder connections. This valve is made of dezincification resistant brass and features a full port design. It is suitable for high water pressure environments with a rating of six hundred psi WOG. It has a length of two point four eight inches from inlet to outlet.

• Blow-out proof stem for secure operation
• Lifetime warranty on leak-proof stem
• Less than 0.25% lead content in wetted surfaces

Product Highlights

This valve includes a TEA coated brass ball and TFM/FKM soft goods for enhanced durability. With its triple sealing stem, this valve is perfect for plumbing systems requiring reliable performance.

Product Information

Standard Information

• Manufacturer: JOMAR
• UPC: 662527290564

Technical Specifications

• Nominal Size: 1/2 inches
• Orifice Size: 0.59 inches
• Inlet to Outlet Length: 2.48 inches
• Top to Inlet Center: 1.56 inches
• Body Material: Brass
• Ball Material: TEA Coated Brass
• Pressure Rating: 600 psi WOG
• Trim Material: Brass Stem
• Softgoods Material: TFM/FKM
• End Style: Solder
• Port Type: Full
• Type: 2-Piece
