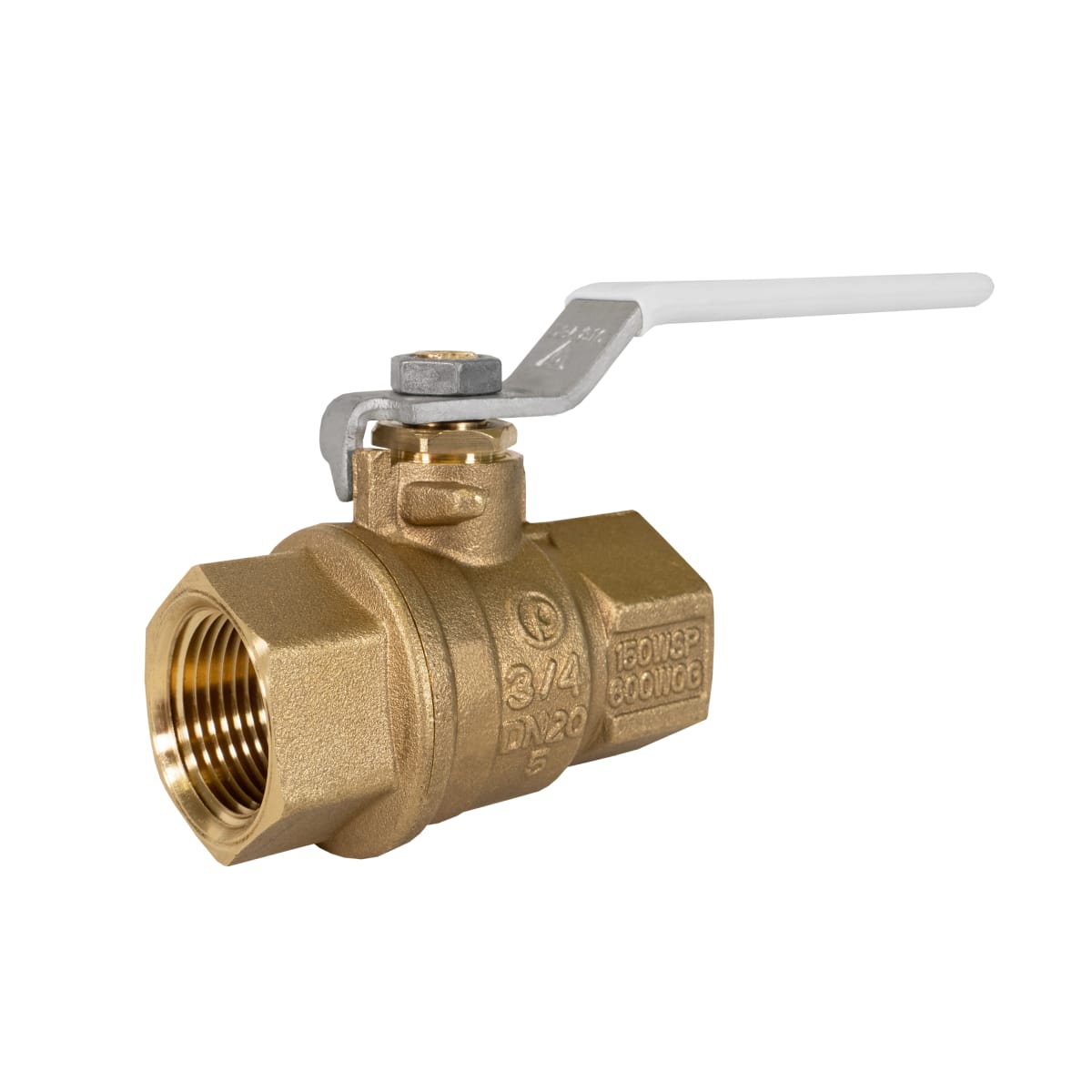

Jomar 100-404G 2 Piece Full Port Threaded Connection Dezincification Resistant Brass 600 WOG

Product Description

The Jomar 100-404G is a two-piece ball valve designed for threaded connections and dezincification resistance. It is suitable for applications with a pressure rating of six hundred psi water, oil, and gas. This valve features a compact design for easier installation and is made of lead-free brass, ensuring compliance with safety standards.

• Dezincification resistant brass
• Full port design for maximum flow
• Triple sealing stem with lifetime warranty

Product Highlights

This valve offers reliability and durability for piping systems. It is engineered to withstand high-pressure environments while minimizing leakage risks. Its construction includes Hostaflon TFM and FKM soft goods that contribute to overall performance.

Product Information

Standard Information

• Manufacturer: JOMAR
• Part Number: 100-404G

Technical Specifications

• Ball Material: TEA Coated Brass
• Body Material: Brass
• End Style: Thread
• Nominal Size: 3/4 in
• Orifice Size: 0.79 in
• Pressure Rating: 600 psi WOG
• Inlet to Outlet Length: 2.34 in
• Top to Inlet Center: 1.95 in
