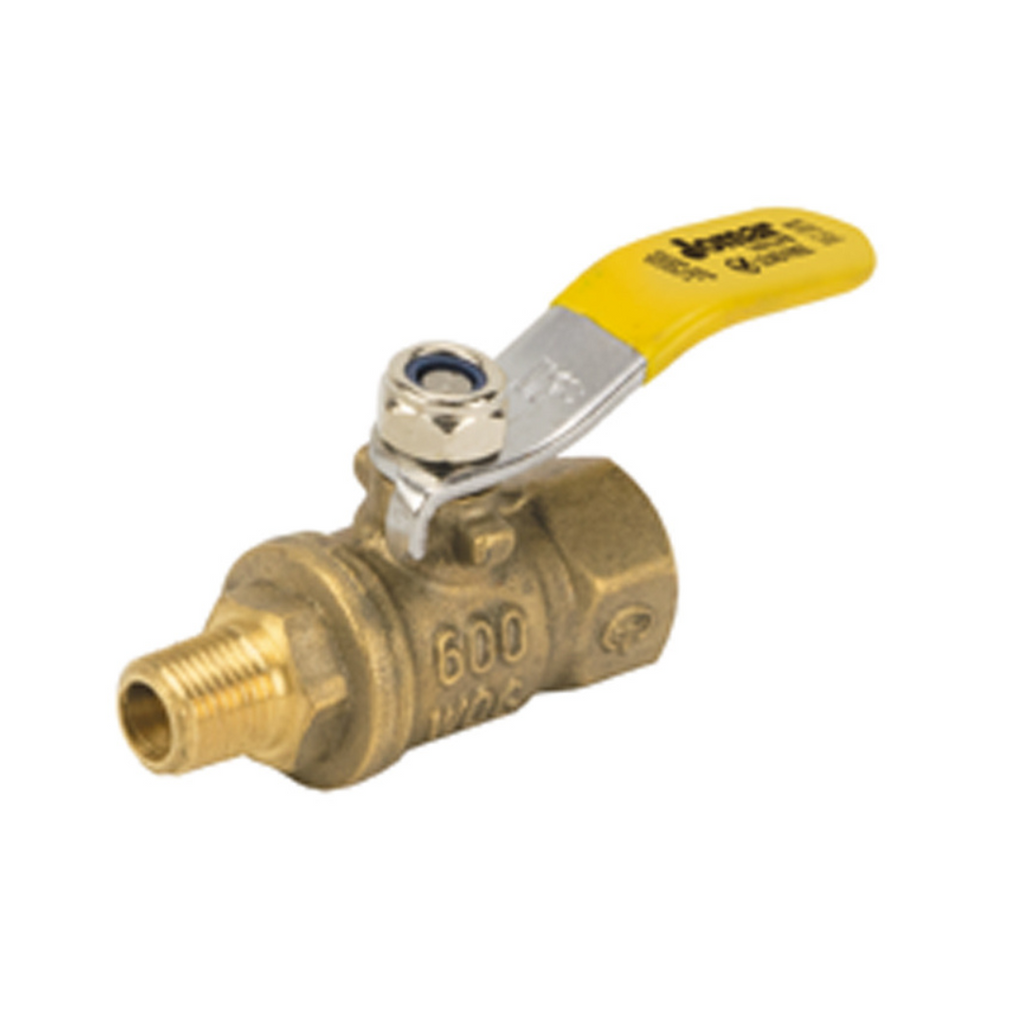

Jomar 100-400G Full Port, 2 Piece, Mini Valves, 600 WOG, Stainless Steel Ball and Stem

Product Description

The Jomar 100-400G is a mini ball valve designed for reliable use in various piping applications. This valve features a full port design and is crafted from durable materials to handle high-pressure environments.

• 2-piece construction for easy installation
• 600 WOG rating for safe operation
• Lever operated for straightforward control

Product Highlights

This valve is well-suited for both residential and commercial plumbing systems, offering a low-pressure drop and efficient flow management.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 100-400G

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: 304 Stainless Steel
• Body Material: Brass
• End Style: FNPT
• Inlet to Outlet Length: 1.65 inches
• Nominal Size: 1/4 inches
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: Buna-N
• Top to Inlet Center: 1.77 inches
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Type: 2-Piece
