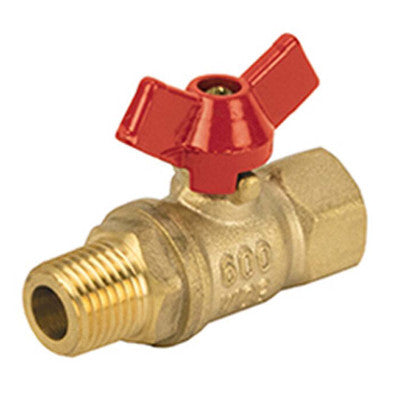

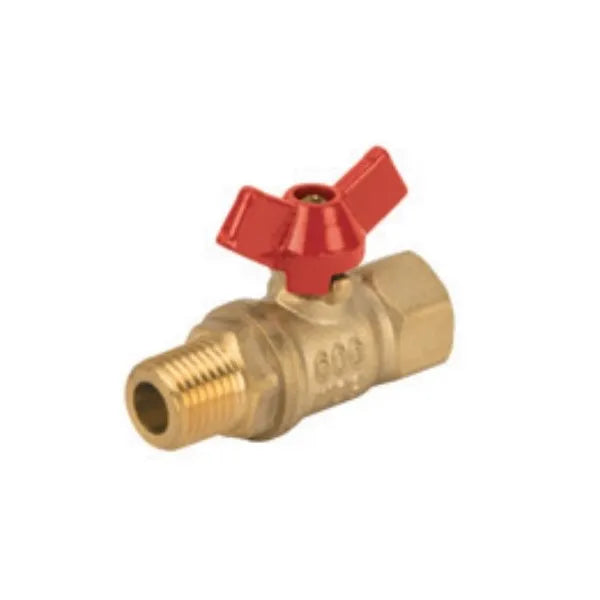

Jomar 100-399TH Mini Ball Valve 1/4 in FNPT x MNPT

Product Description

The JOMAR 100-399TH is a 2-piece full-port mini ball valve with FNPT x MNPT connection. This valve features a brass body, a tee handle operator, and a PTFE seat. It is designed for applications requiring reliable shutoff and flow control with a pressure rating of 600 PSI (WOG) and 150 PSI (SWP).

• Full Port
• Tee Handle
• Large raised wrench flats

Product Highlights

The JOMAR 100-399TH mini ball valve is ideal for use in various plumbing and industrial applications. It ensures durability and efficient operation.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-399TH
• Country of Origin: United States of America

Technical Specifications

• Nominal Size: 1/4 IN
• Connection Type: FNPT X MNPT
• Pressure Rating: 600 PSI (WOG), 150 PSI (SWP)
• Body Material: Brass
• Operator Type: Tee Handle
• Handle Material: Aluminum
• Stem Material: Brass
• Trim Material: Brass Stem and PTFE Seat
• Seat Material: PTFE
• Material Specification: Body, Ball, Stem: UNS C37700
• Finish/Color: Chrome Plated Ball
• Width: 2.01 IN
• Lead Free: No
• Other Physical Dimension: 1.1 IN Inlet Center To Top Of Handle, 1.33 IN Handle Length
• Port Type: Full
• End Style: MNPT x FNPT
• Ball Material: Brass
• Inlet to Outlet Length: 2.01 in
• Top to Inlet Center: 1.33 in
• Type: 2-Piece
• Actuator Type: T-Handle
• Brand: Jomar
• Max Pressure: 600 psi WOG, 150 psi steam
• Design Type: 2-Piece
