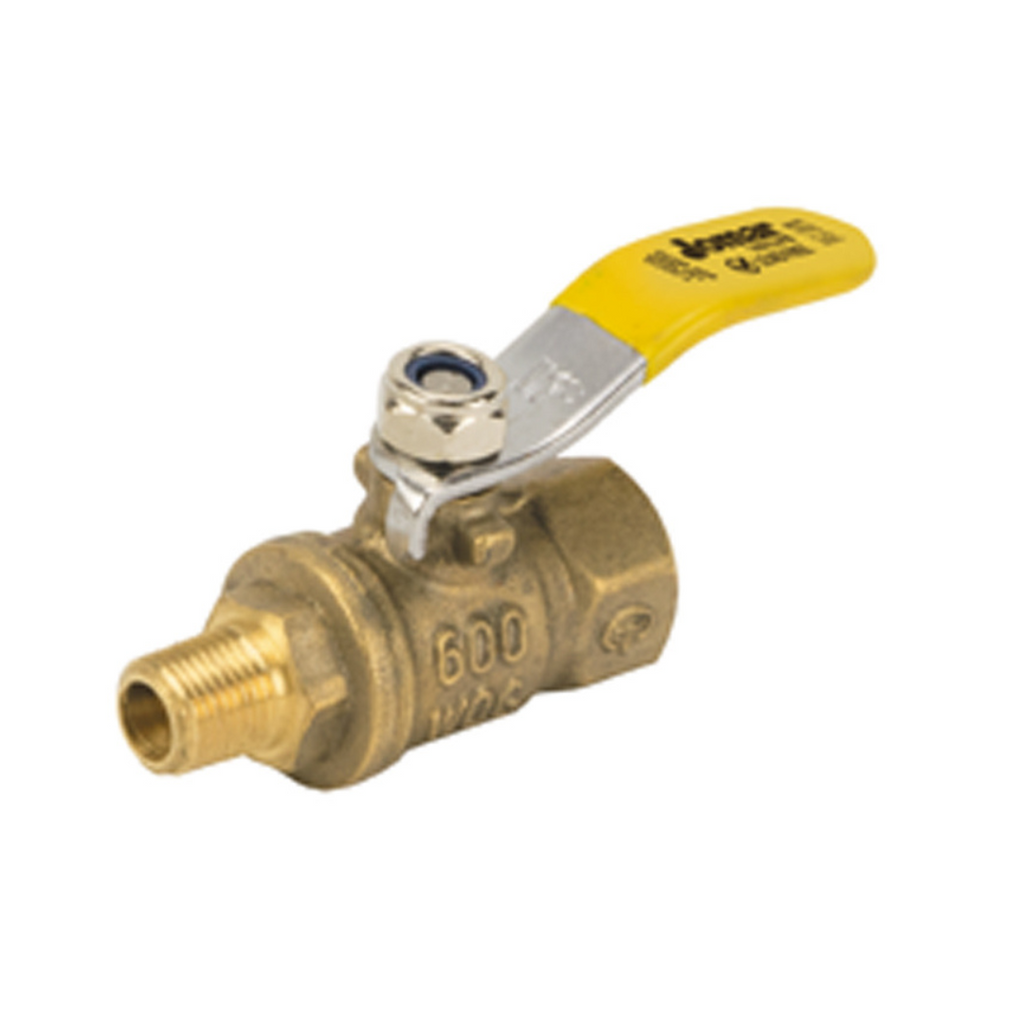

Jomar 100-399G Full Port, 2 Piece, Mini Valves, 600 WOG, Stainless Steel Ball and Stem

Product Description

The Jomar Valve 100-399G is a mini ball valve designed for durability and performance. It features a 2-piece structure with a full port design, suitable for various plumbing applications. This valve operates at a pressure rating of 600 psi WOG, making it reliable for high-pressure systems.

• Large raised wrench flats for easy handling
• 100% leak tested for assurance
• Constructed with materials that contain less than 0.25% lead content

Product Highlights

This mini valve is ideal for residential and commercial plumbing applications. The stainless steel ball and stem provide corrosion resistance while ensuring a secure and leak-free operation.

Product Information

Standard Information

• Manufacturer: Jomar
• Part Number: 100-399G

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: 304 Stainless Steel
• Body Material: Brass
• End Style: MNPT x FNPT
• Inlet to Outlet Length: 2.01 inches
• Nominal Size: 1/4 inches
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: Buna-N
• Top to Inlet Center: 1.77 inches
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Type: 2-Piece
