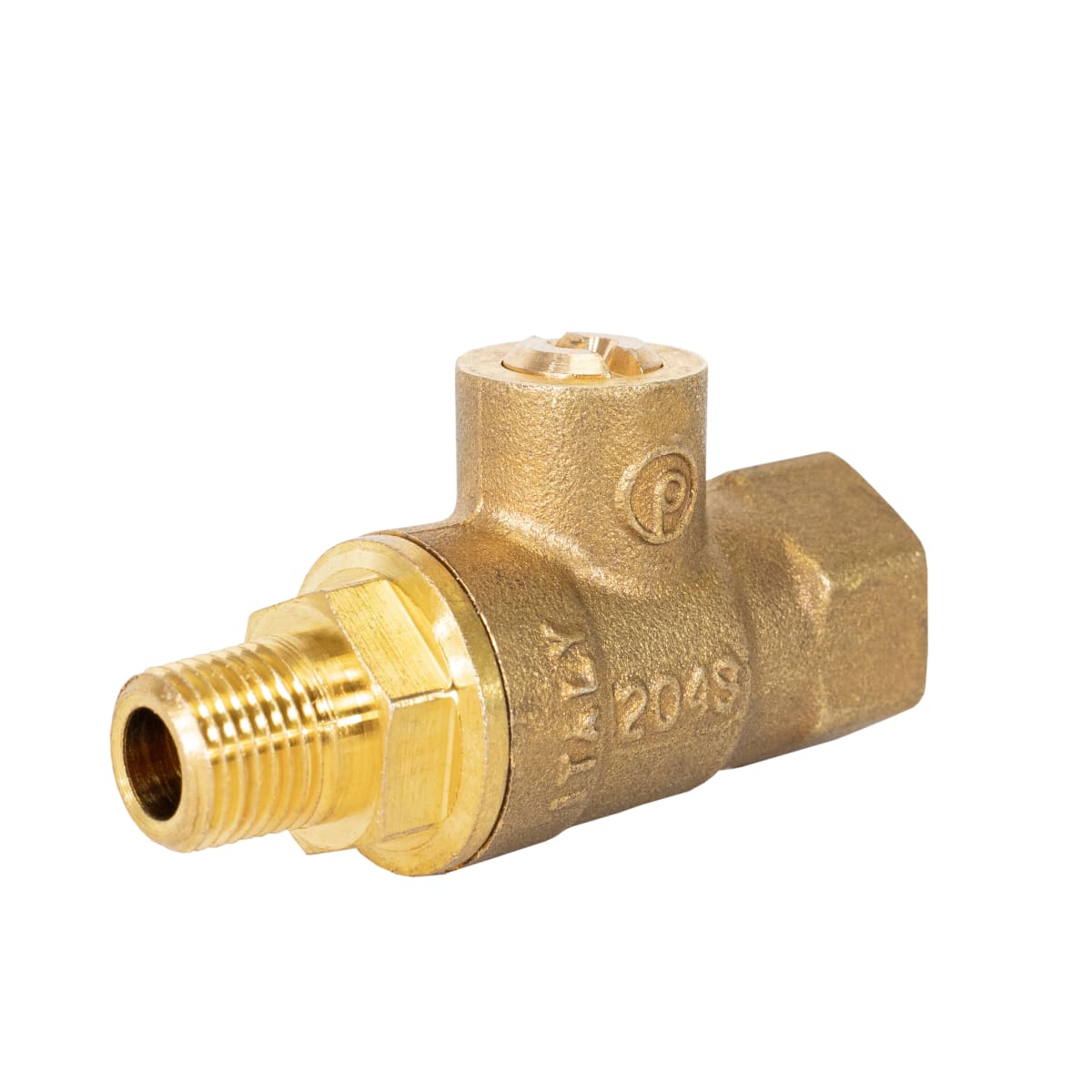

Jomar 100-300 Full Port, 2 Piece, Threaded Connection, Mini Valves, 600 WOG

Product Description

The Jomar valve 100-300 is a mini ball valve featuring a two-piece construction ideal for a variety of piping applications. This valve is designed for full port flow with a threaded connection that provides easy installation in your piping system. The valve operates at a maximum pressure of six hundred psi WOG, making it suitable for water, oil, and gas services.

• Lever operated actuator for easy control
• 100% leak tested for reliability
• CW617N brass end connection for durability

Product Highlights

The Jomar 100-300 mini ball valve is constructed with a chrome-plated brass ball, brass body, and a PTFE seat trim for long-lasting performance. It provides a reliable seal and is designed for both MNPT and FNPT end styles.

Product Information

Standard Information

• Manufacturer: Jomar
• MPN: 100-300

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: MNPT x FNPT
• Inlet to Outlet Length: 1.65 inches
• Nominal Size: 1/4 inches
• Orifice Size: 0.31 inches
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: FKM
• Top to Inlet Center: 1.14 inches
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
