Jomar 100-298 Full Port, 2 Piece, Threaded Connection, Mini Valves, 600 WOG

Product Description

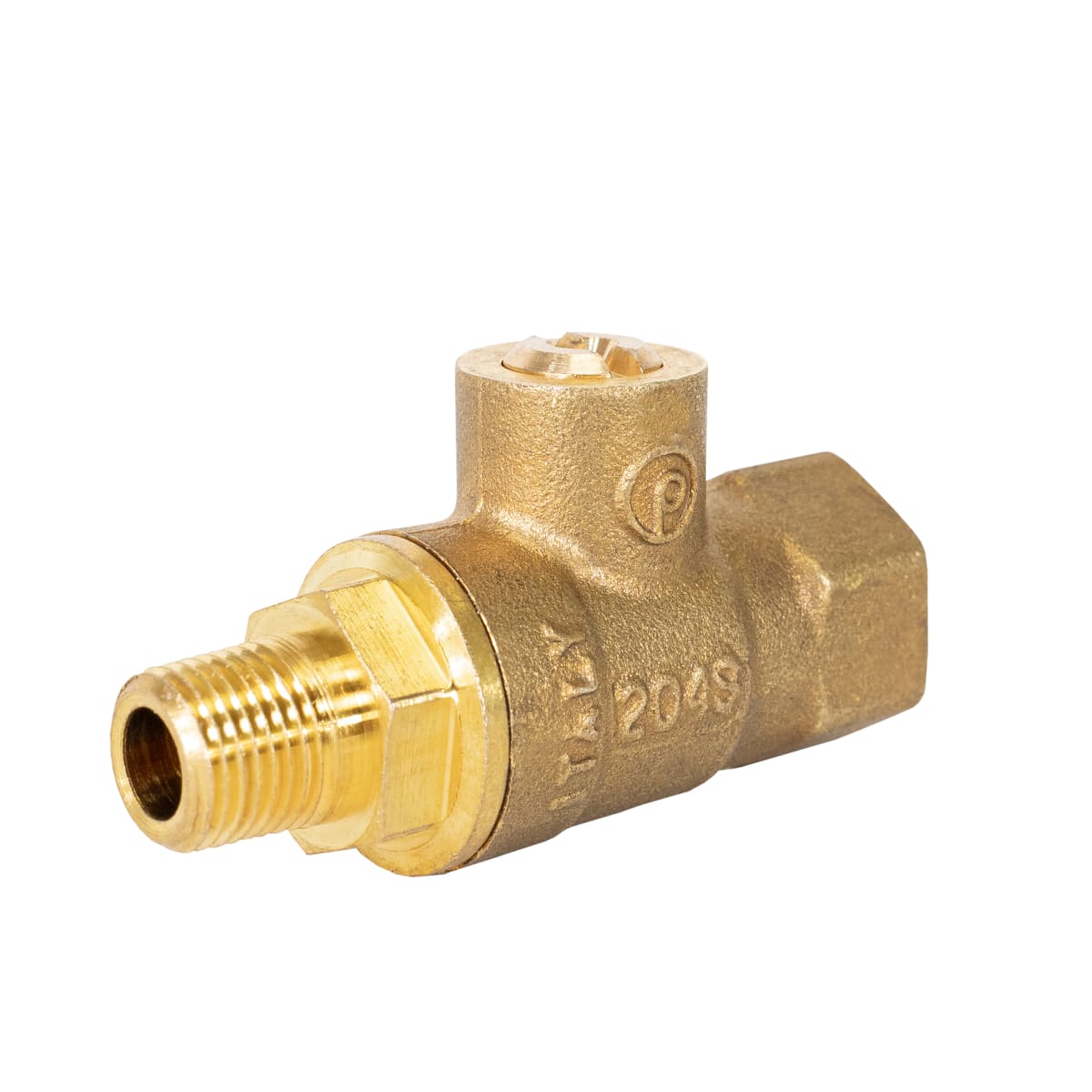

The Jomar Mini Ball Valve 100-298 features a two-piece construction with a full port design. This valve is suitable for applications requiring reliable flow control up to six hundred psi WOG. Built with a chrome-plated brass ball and a brass body, it is designed for MNPT to FNPT connections. The valve operates using a lever actuator for easy handling.

• Full port design maximizes flow
• Built with durable chrome-plated brass
• Leak proof with a lifetime warranty on the stem

Product Highlights

The valve’s lever actuator allows for quick on/off operation, making it ideal for various plumbing and piping applications. It is ANSI B1.20.1 compliant and CSA certified, ensuring safety and reliability in all conditions.

Product Information

Standard Information

• Manufacturer: Jomar
• MPN: 100-298

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: MNPT x FNPT
• Inlet to Outlet Length: 1.96 inches
• Nominal Size: 1/4 x 1/8 inches
• Orifice Size: 0.31 inches
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: FKM
• Top to Inlet Center: 1.14 inches
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
