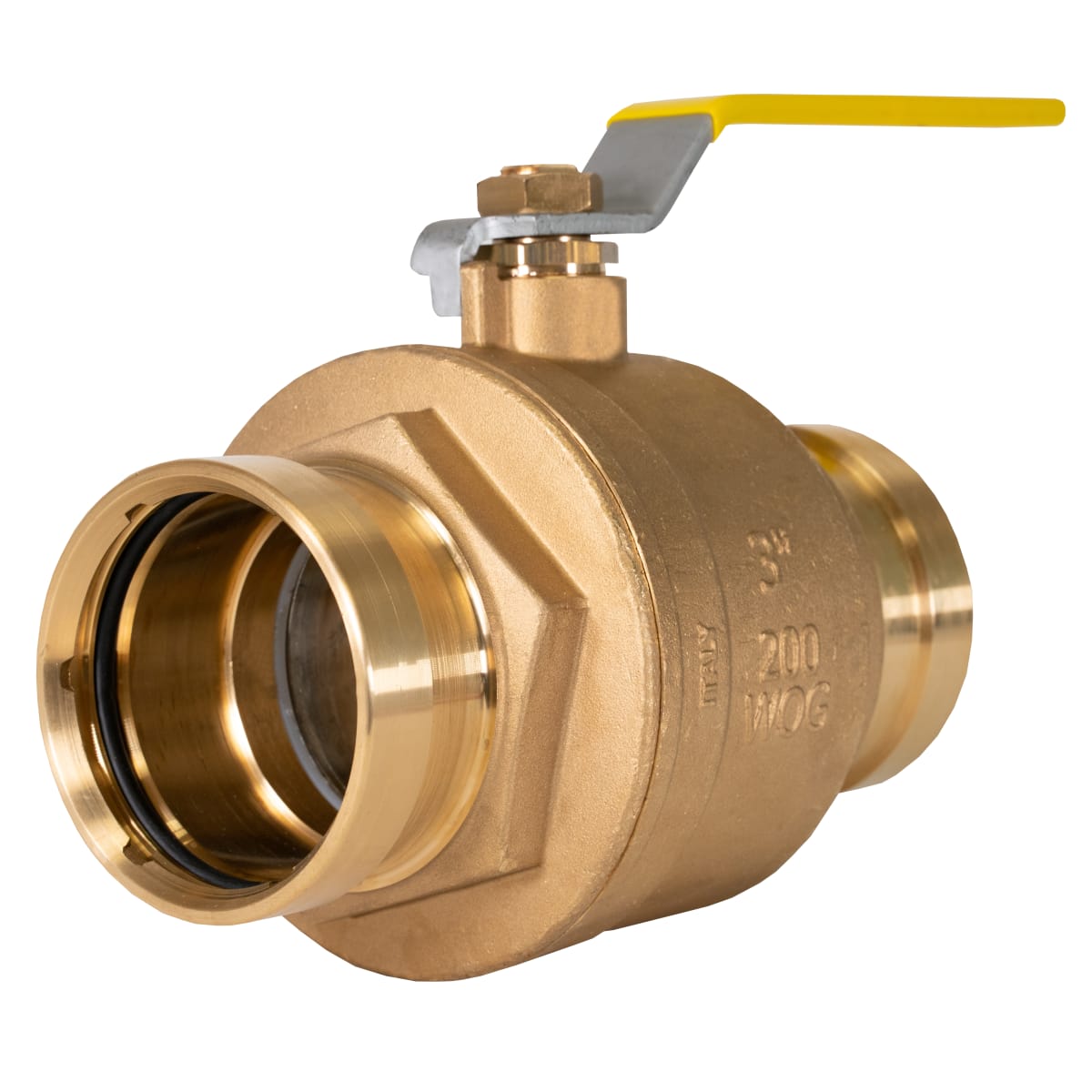

Jomar 100-211XLC Full Port, 2 Piece, Press XLC Connection, 200 WOG

Product Description

The Jomar 100-211XLC is a reliable ball valve designed for various applications involving gas, oil, or water. This two-piece ball valve features a full port design that ensures maximum flow capacity with minimal pressure drop. Constructed from durable brass, it is built to withstand pressures up to 200 psi.

• Full port design for maximum flow
• Constructed from corrosion-resistant brass
• Lever operated actuator for easy use

Product Highlights

The Jomar 100-211XLC is suitable for HVAC, plumbing, and industrial applications. It operates efficiently in high-temperature environments up to 250 degrees Fahrenheit, making it ideal for diverse job sites.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 100-211XLC

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Brass
• Body Material: Brass
• Pressure Rating: 200 psi
• Temperature Rating: 250 degrees Fahrenheit
• Nominal Size: 4 inches
• Orifice Size: 4 inches
• Connection Type: Press x Press
• Inlet to Outlet Length: 10.79 inches
• Top to Inlet Center: 5.9 inches
• Softgoods Material: EPDM
