JOMAR 100-210XLCG Full Port, 2 Piece, Press XLC Connection, Dezincification Resistant Brass

Product Description

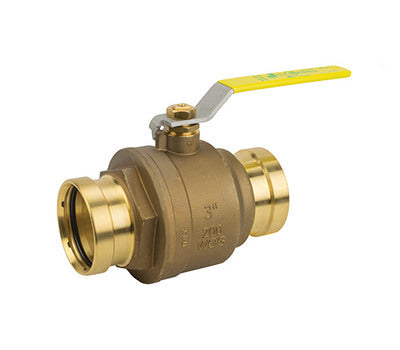

The JOMAR 100-210XLCG is a three-inch full port, two-piece ball valve designed for press XLC connections. This valve is made from dezincification resistant brass, ensuring durability and reliability in various media including gas, oil, and water. It operates at a pressure rating of two hundred psi and a temperature rating of two hundred fifty degrees Fahrenheit. The valve features a lever operated actuator for ease of use and offers a robust blow-out/leak proof system.

• Constructed with dezincification-resistant brass alloy
• Rated for gas, oil, and water media at high pressure
• Easy to operate with a lever actuated design

Product Highlights

Ideal for HVAC, plumbing, or industrial applications, the valve provides reliable performance with minimal maintenance.

Product Information

Standard Information

• Manufacturer: JOMAR

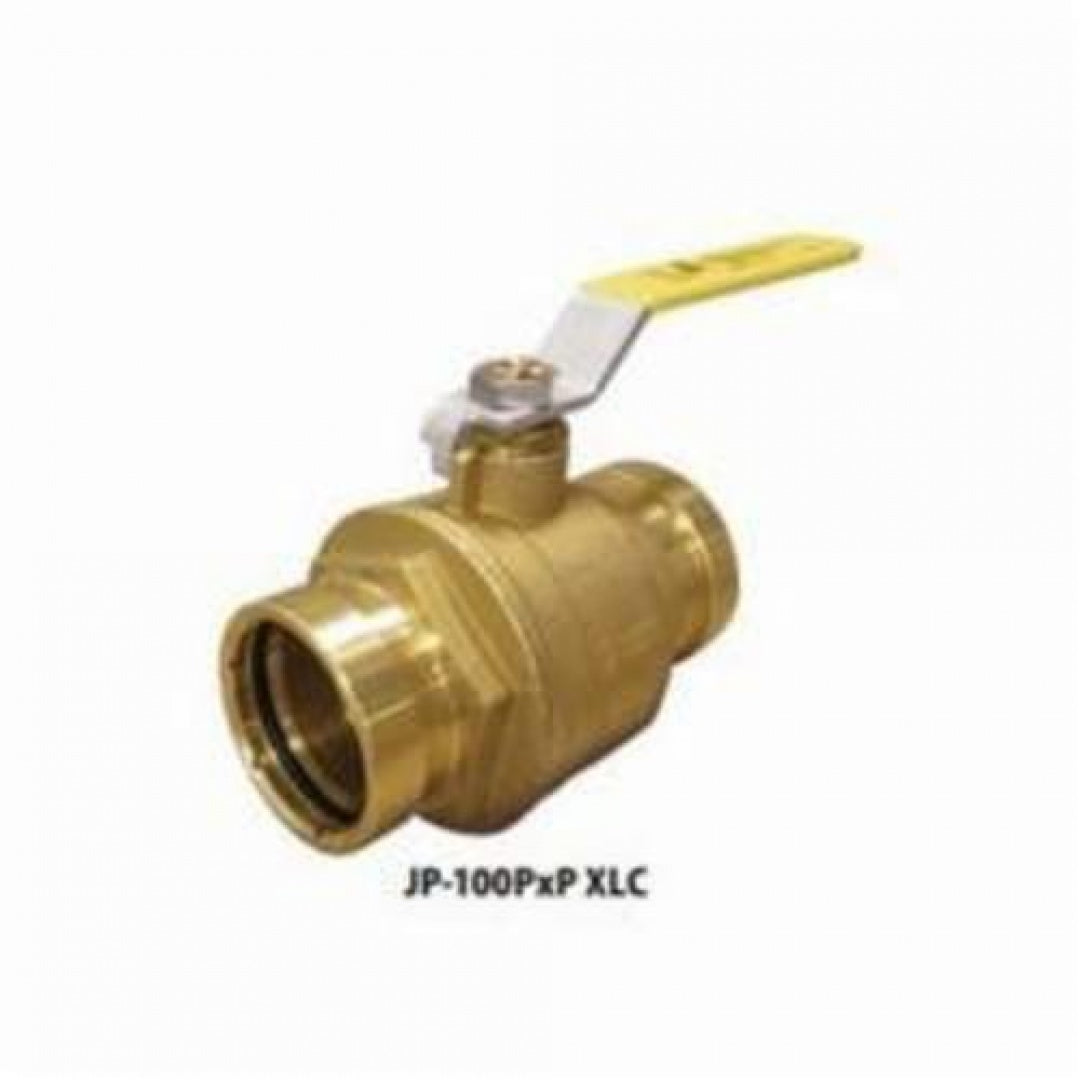

• Series: JP-100PxP XLC

Technical Specifications

• Nominal Size: 3 inches
• Orifice Size: 2.99 inches
• Inlet to Outlet Length: 8.49 inches
• Top to Inlet Center: 5.31 inches
• Body Material: Brass
• Ball Material: Brass
• End Style: Press
• Port Type: Full
• Pressure Rating: 200 psi
• Temperature Rating: 250 degrees Fahrenheit
• Softgoods Material: EPDM
• Specifications Met: IAPMO PS 117
