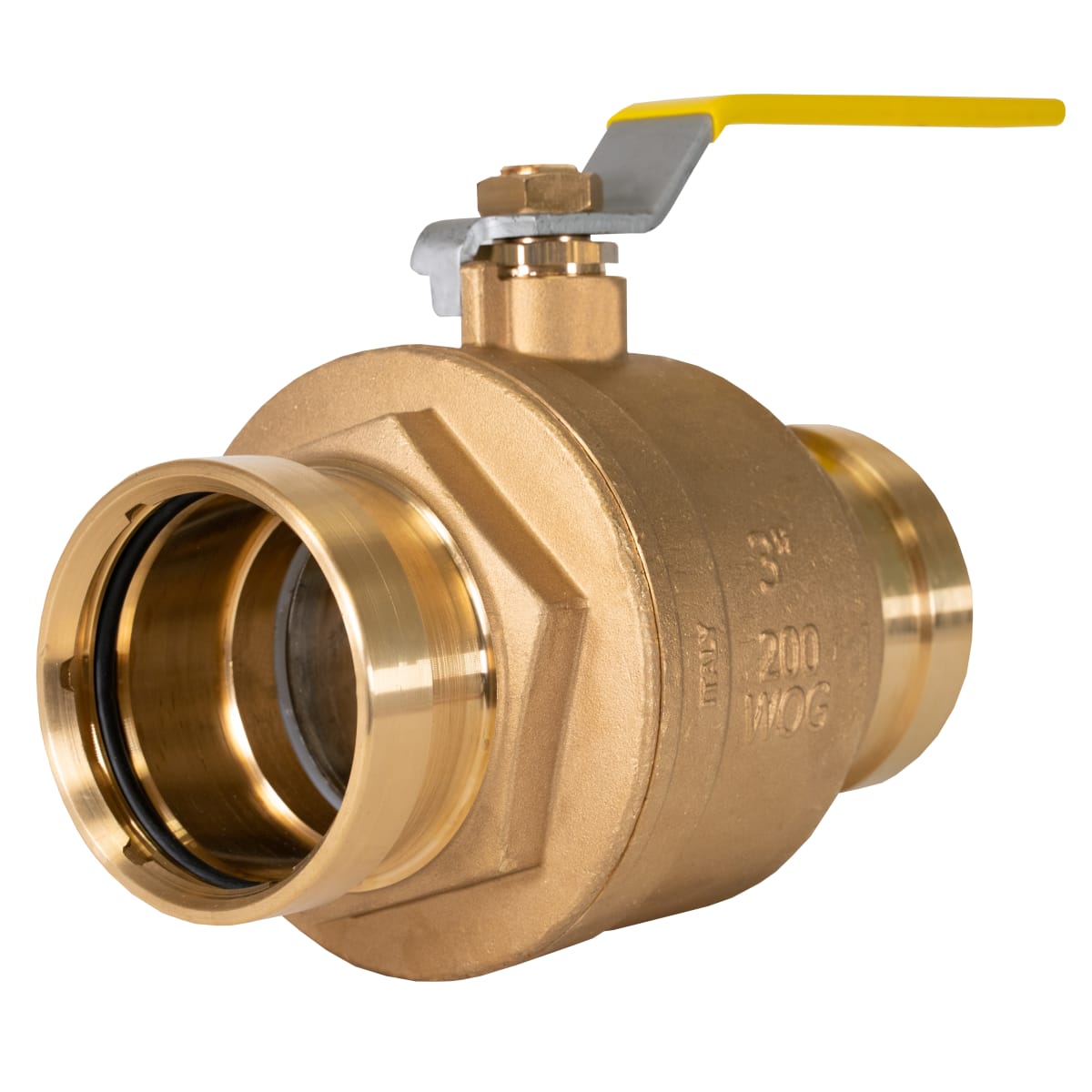

Jomar 100-209XLC Full Port, 2 Piece, Press XLC Connection, 200 WOG

Product Description

The Jomar valve, model 100-209XLC, is a two-piece ball valve designed for use in various piping systems. This full port valve features a press XLC connection and has a pressure rating of 200 WOG. It is suitable for media such as gas, oil, and water. With its lever-operated actuator and brass construction, it ensures efficient flow control.

• Industry-standard pressure rating of 200 psi.
• Compatible with gas, oil, and water media.
• Full port design allows for maximum flow.

Product Highlights

This product is built to withstand high temperatures up to 250 degrees Fahrenheit. It features a blow-out/leak proof system and corrosion-resistant brass materials for enhanced durability.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 100-209XLC

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Brass
• Body Material: Brass
• End Style: Press
• Inlet to Outlet Length: 7.13 inches
• Media: Gas/Oil/Water
• Nominal Size: 2-1/2 inches
• Orifice Size: 2.46 inches
• Port Type: Full
• Pressure Rating: 200 psi
• Series: JP-100PxP XLC
• Softgoods Material: EPDM
• Temperature Rating: 250 degrees Fahrenheit
• Top to Inlet Center: 4.72 inches
• Trim Material: Brass Stem and TFM Seat
• Type: 2-Piece
