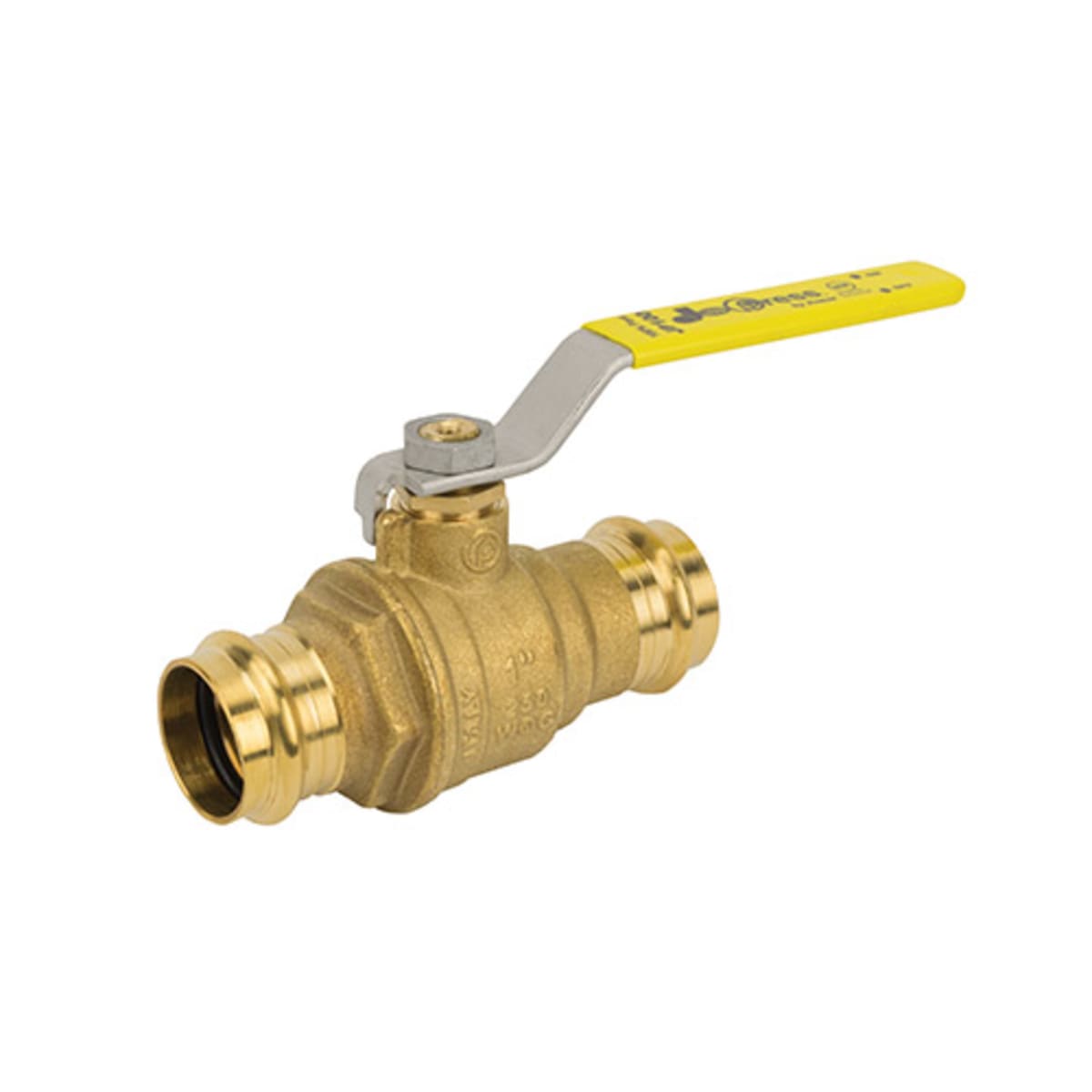

Jomar 100-207 Full Port, 2 Piece, Press Connection, 250 WOG

Product Description

The Jomar Valve 100-207 is a full port, two-piece ball valve designed for press connections. It is capable of handling a maximum pressure of 250 psi and a temperature of up to 250 degrees Fahrenheit. This valve is suitable for applications involving gas, oil, and water. The construction features brass materials, ensuring durability and resistance to corrosion.

• Press connection for easy installation
• Brass construction for long-lasting use
• Blow-out/leak proof system to ensure reliability

Product Highlights

This Jomar valve is an essential component for plumbing and HVAC professionals. It provides secure connections and is extensively tested for leaks.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 100-207

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Brass
• Body Material: Brass
• End Style: Press
• Inlet to Outlet Length: 5.61 inches
• Media: Gas/Oil/Water
• Nominal Size: 1-1/2 inches
• Orifice Size: 1.49 inches
• Port Type: Full
• Pressure Rating: 250 psi
• Series: JP-100PxP
• Softgoods Material: EPDM
• Temperature Rating: 250 degrees Fahrenheit
• Top to Inlet Center: 3.22 inches
• Trim Material: Brass Stem and TFM Seat
• Type: 2-Piece
