JOMAR 100-205 Full Port, 2 Piece, Press Connection, 250 WOG

Product Description

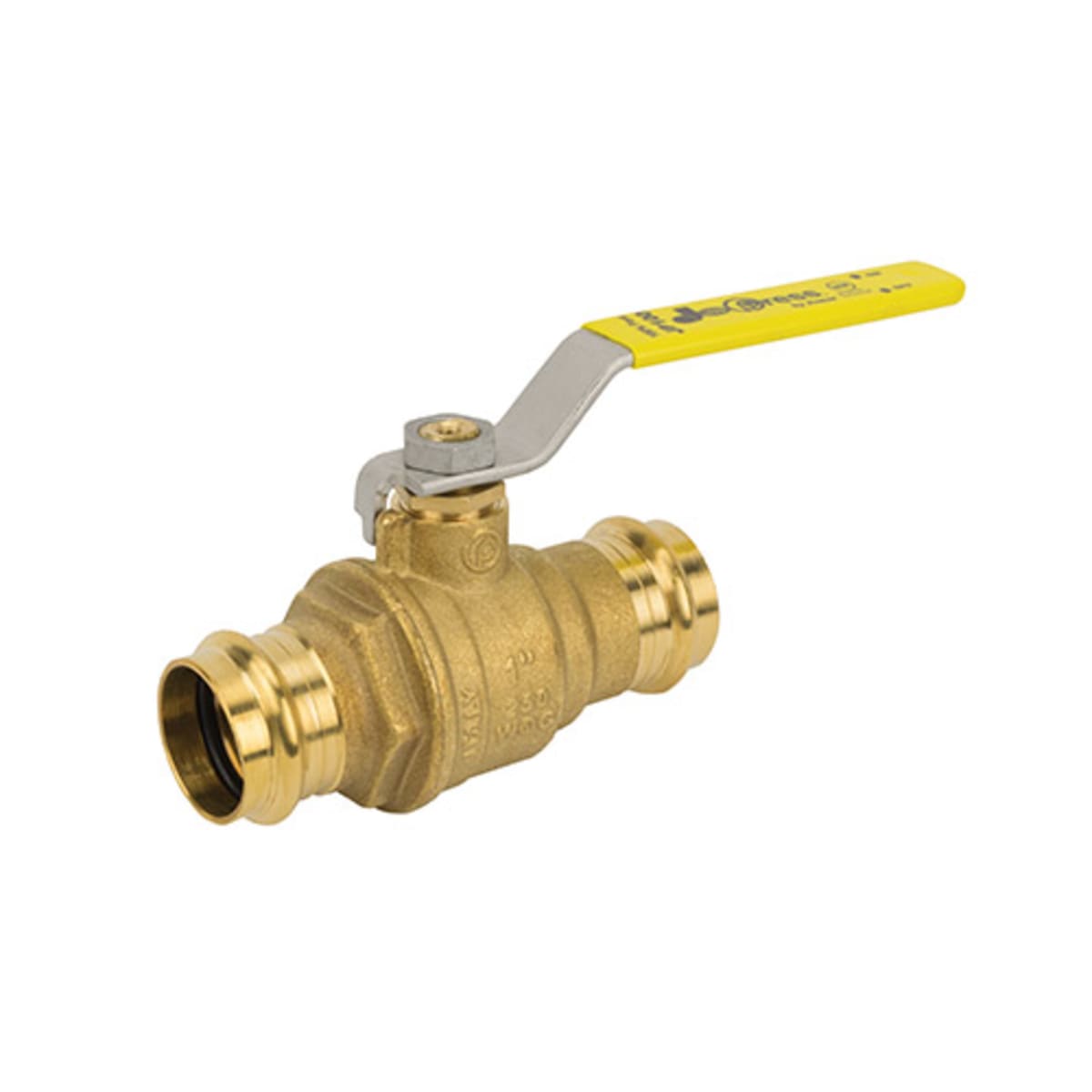

Jomar offers the 100-205, a reliable ball valve designed for efficient flow control. This is a two-piece, full port ball valve with a one-inch nominal size and a press connection. It operates at a pressure rating of 250 psi WOG and is suitable for temperatures up to two hundred fifty degrees Fahrenheit.

• Constructed with TEA coated brass for durability.
• Features a blow-out proof stem with triple sealing using two FKM O-rings and a PTFE seal.
• Leak tested to ensure reliability in every application.

Product Highlights

This valve is ideal for plumbing systems requiring a secure and efficient connection. It has a length of four point thirty-one inches from inlet to outlet and includes a hostaflon TFM 1600 seat trim using FKM and EPDM soft goods.

Product Information

Standard Information

• Brand: JOMAR
• MPN: 100-205

Technical Specifications

• Ball Material: TEA Coated Brass
• Body Material: Brass
• End Style: Press
• Inlet to Outlet Length: 4.31 inches
• Nominal Size: 1 inch
• Orifice Size: 0.97 inches
• Port Type: Full
• Pressure Rating: 250 psi WOG
• Softgoods Material: FKM/EPDM
• Temperature Rating: 250 degrees Fahrenheit
• Top to Inlet Center: 2.4 inches
• Trim Material: Brass Stem and Hostaflon TFM 1600 Seat
• Type: 2-Piece
