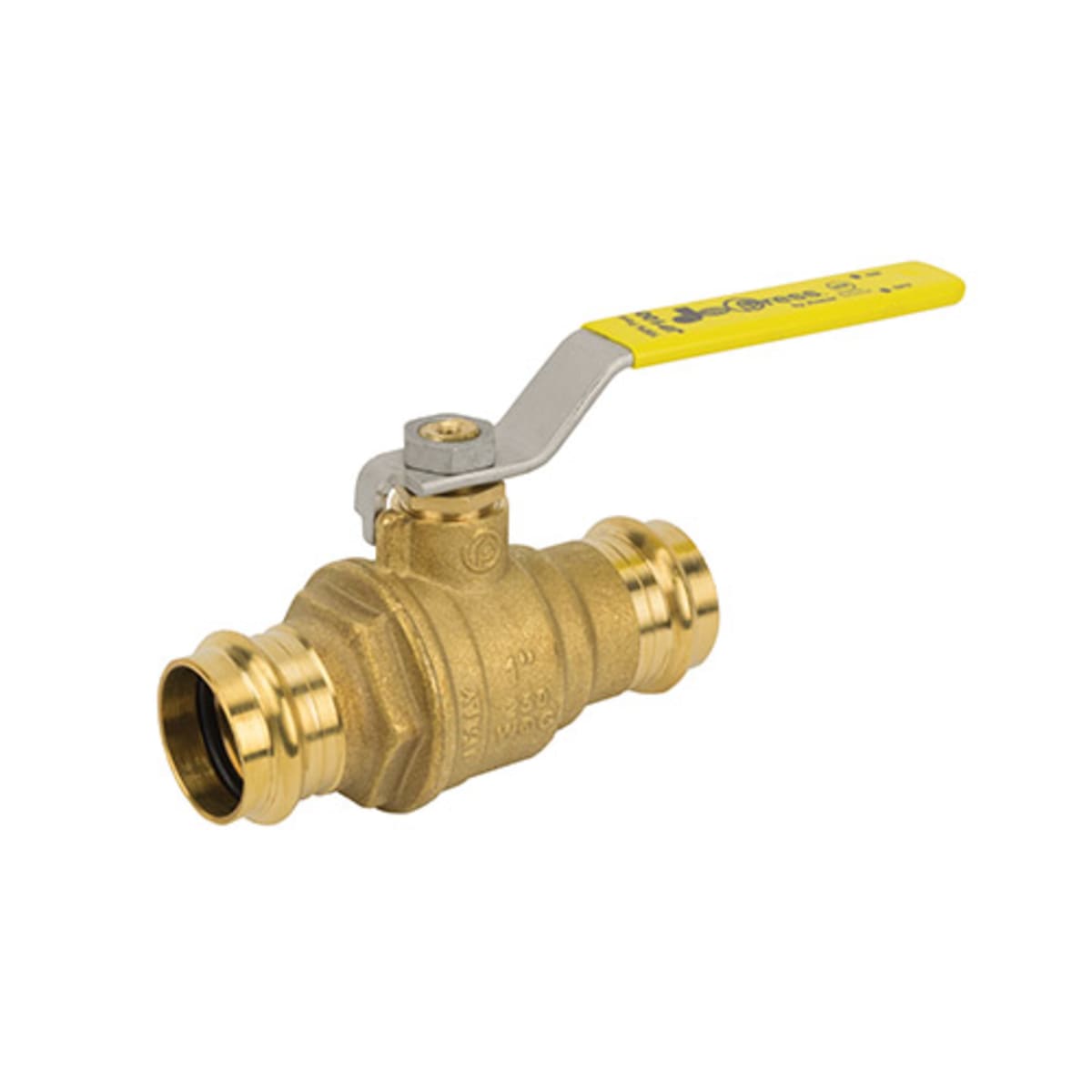

JOMAR 100-204 Full Port, 2 Piece, Press Connection, 250 WOG

Product Description

The JOMAR 100-204 is a full port, two-piece ball valve designed for press connections and rated for 250 psi WOG. This valve features a zero-leak design and is suitable for a variety of piping applications.

• Full port design for maximum flow
• Durable brass construction for improved longevity
• Blow-out proof stem for enhanced safety

Product Highlights

This valve is ideal for plumbing, heating, and HVAC systems. Its press connection design simplifies installation, while its robust materials ensure reliability in demanding environments.

Product Information

Standard Information

• Brand: JOMAR
• MPN: 100-204

Technical Specifications

• Material: Brass
• Nominal Size: 3/4 inches
• Orifice Size: 0.79 inches
• Pressure Rating: 250 psi WOG
• Temperature Rating: 250 degrees F
• Inlet to Outlet Length: 3.84 inches
• Top to Inlet Center: 1.95 inches
• End Style: Press
• Port Type: Full
• Softgoods Material: FKM/EPDM
• Trim Material: Brass Stem and Hostaflon TFM 1600 Seat
• Type: 2-Piece
