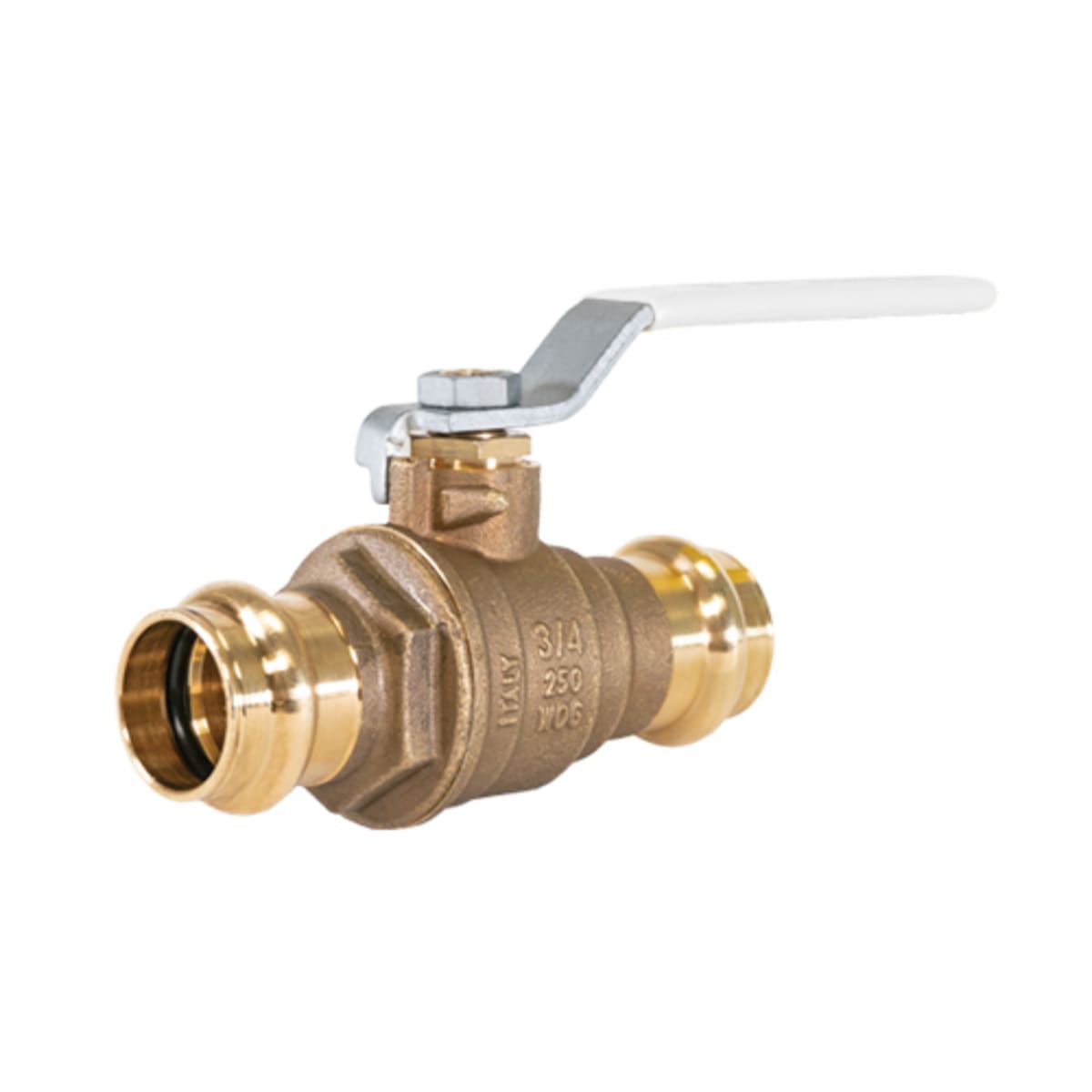

Jomar 100-203G Full Port, 2 Piece, Press Connection, Dezincification Resistant Brass, 250 WOG

Product Description

The Jomar 100-203G is a valve designed for efficient fluid control. This model features a two-piece construction with a full port design, making it suitable for various applications, including gas, oil, and water. It operates at a pressure of 250 psi and can handle temperatures up to 250 degrees Fahrenheit.

• Constructed from dezincification resistant brass
• Blow-out/leak proof design
• 100% leak tested for reliability

Product Highlights

The valve utilizes a lever-operated actuator for easy manipulation and includes a brass ball with a Teflon seat for durability.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 100-203G

Technical Specifications

• Nominal Size: 1/2 in
• Orifice Size: 0.59 in
• Pressure Rating: 250 psi
• Temperature Rating: 250 degrees Fahrenheit
• Actuator Type: Lever Operated
• Ball Material: Brass
• Body Material: Brass
• End Style: Press
• Series: JP-100GPXP
• Trim Material: Brass Stem and TFM Seat
• Softgoods Material: EPDM
• Inlet to Outlet Length: 3.54 in
• Top to Inlet Center: 1.53 in
