Jomar 100-203 Full Port, 2 Piece, Press Connection, 250 WOG

Product Description

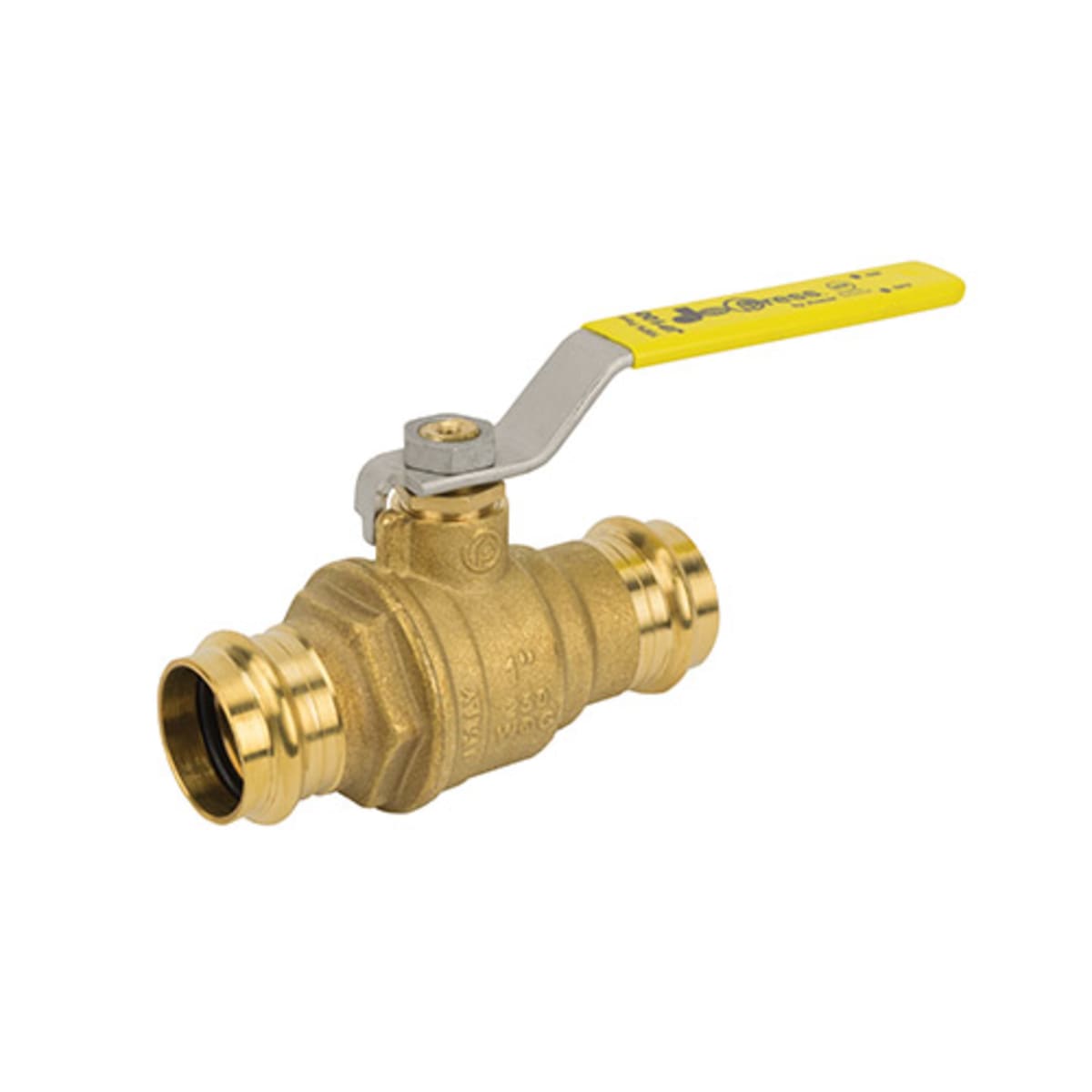

The Jomar Valve 100-203 is a two-piece ball valve designed for press connections. This valve has a full port design that allows for maximum flow with minimal pressure loss. The valve is rated for a pressure of 250 psi and a temperature of 250 degrees Fahrenheit, making it suitable for various media including gas, oil, and water.

• Constructed from durable brass materials
• Lever-operated actuator for easy operation
• Equipped with a blow-out/leak proof system for safety

Product Highlights

This product is ideal for plumbing installations where reliable and safe media flow is essential.

Product Information

Standard Information

• Manufacturer: JOMAR
• Part Number: 100-203

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Brass
• Body Material: Brass
• End Style: Press
• Inlet to Outlet Length: 3.54 inches
• Media: Gas/Oil/Water
• Nominal Size: 1/2 inches
• Orifice Size: 0.59 inches
• Port Type: Full
• Pressure Rating: 250 psi
• Series: JP-100PxP
• Softgoods Material: EPDM
• Temperature Rating: 250 degrees Fahrenheit
• Top to Inlet Center: 1.53 inches
• Trim Material: Brass Stem and TFM Seat
• Type: 2-Piece
