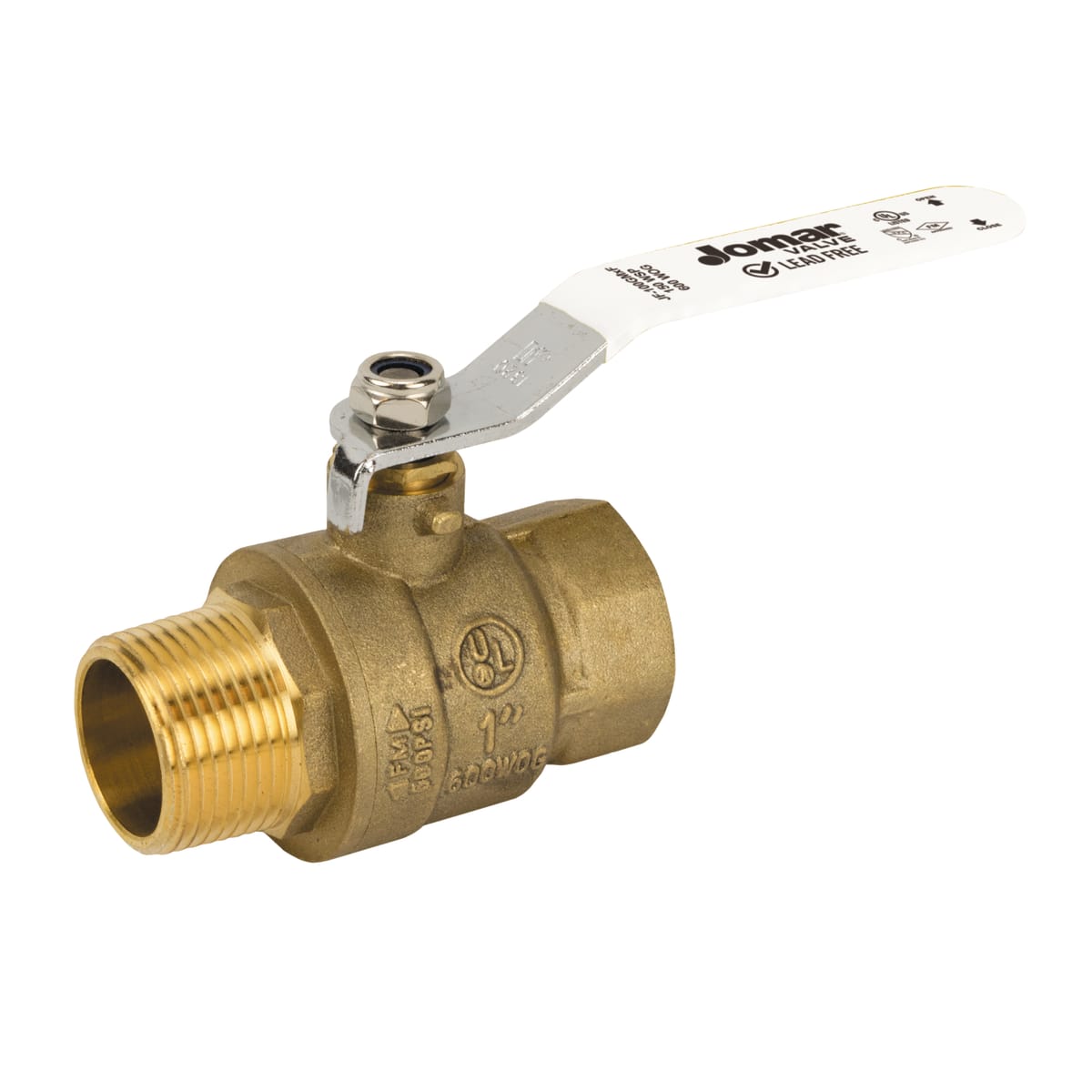

Jomar 100-131G Full Port, 2 Piece, Male x Female Connection, 600 WOG, Stainless Steel Ball

Product Description

The Jomar Valve 100-131G is a ball valve designed for efficient flow control. This two-piece valve features one-quarter inch nominal size and an MNPT x FNPT end style. It operates under a pressure rating of 600 WOG.

• Full port design for maximum flow.
• Constructed from durable 304 stainless steel and brass.
• Tested for leaks to ensure reliability.

Product Highlights

This Jomar valve suits various piping applications and is primarily used in water and gas systems. Its robust design includes a blow-out proof stem and is compliant with industry standards.

Product Information

Standard Information

• Manufacturer: JOMAR
• UPC: 662527298287

Technical Specifications

• Ball Material: 304 Stainless Steel
• Body Material: Brass
• End Style: MNPT x FNPT
• Inlet to Outlet Length: 2.05 inches
• Nominal Size: 1/4 inch
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: Buna-N/PTFE
• Top to Inlet Center: 1.41 inches
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Type: 2-Piece
