Jomar 100-121SSG Full Port, 2 Piece, Solder Connection, 600 WOG, Stainless Steel Ball and S

Product Description

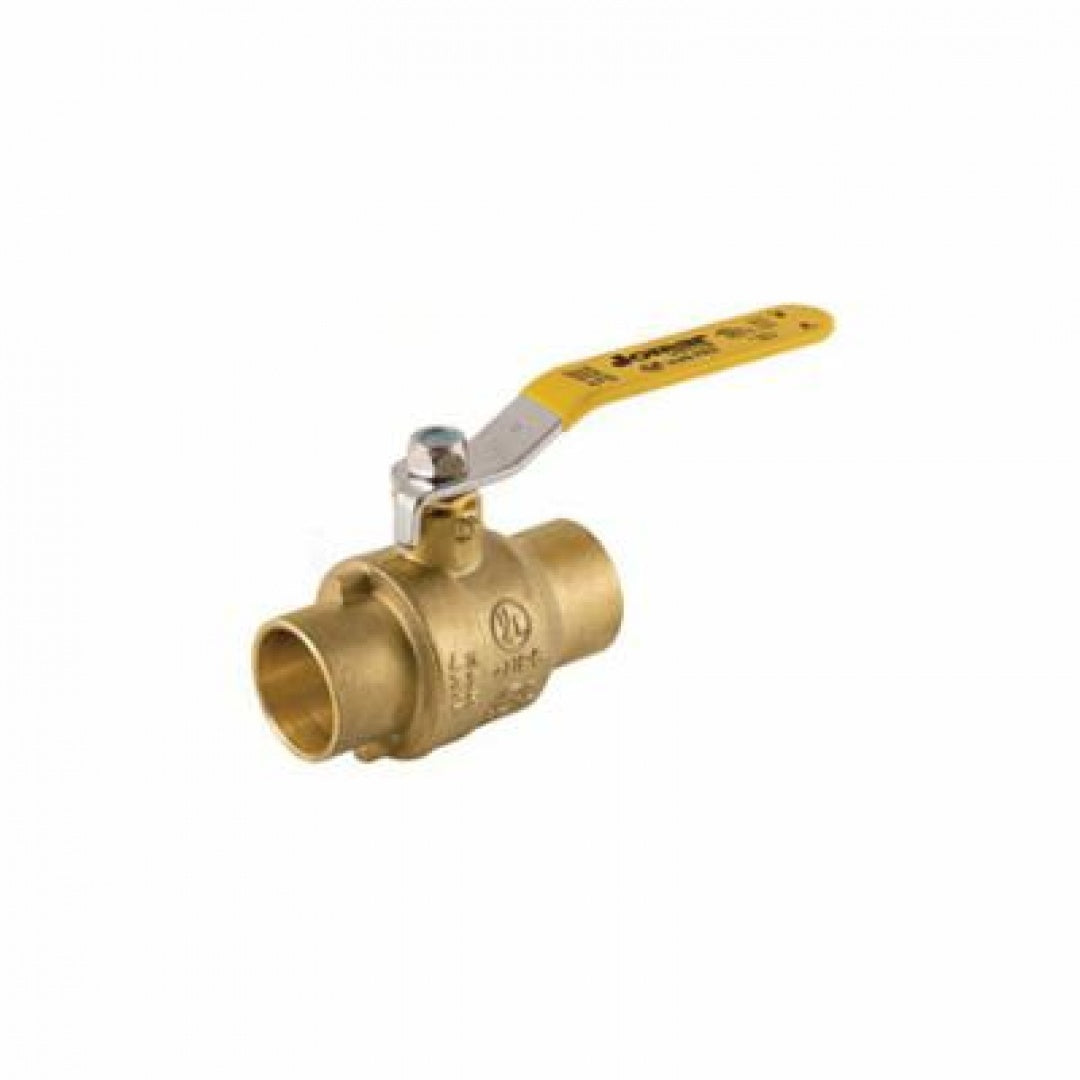

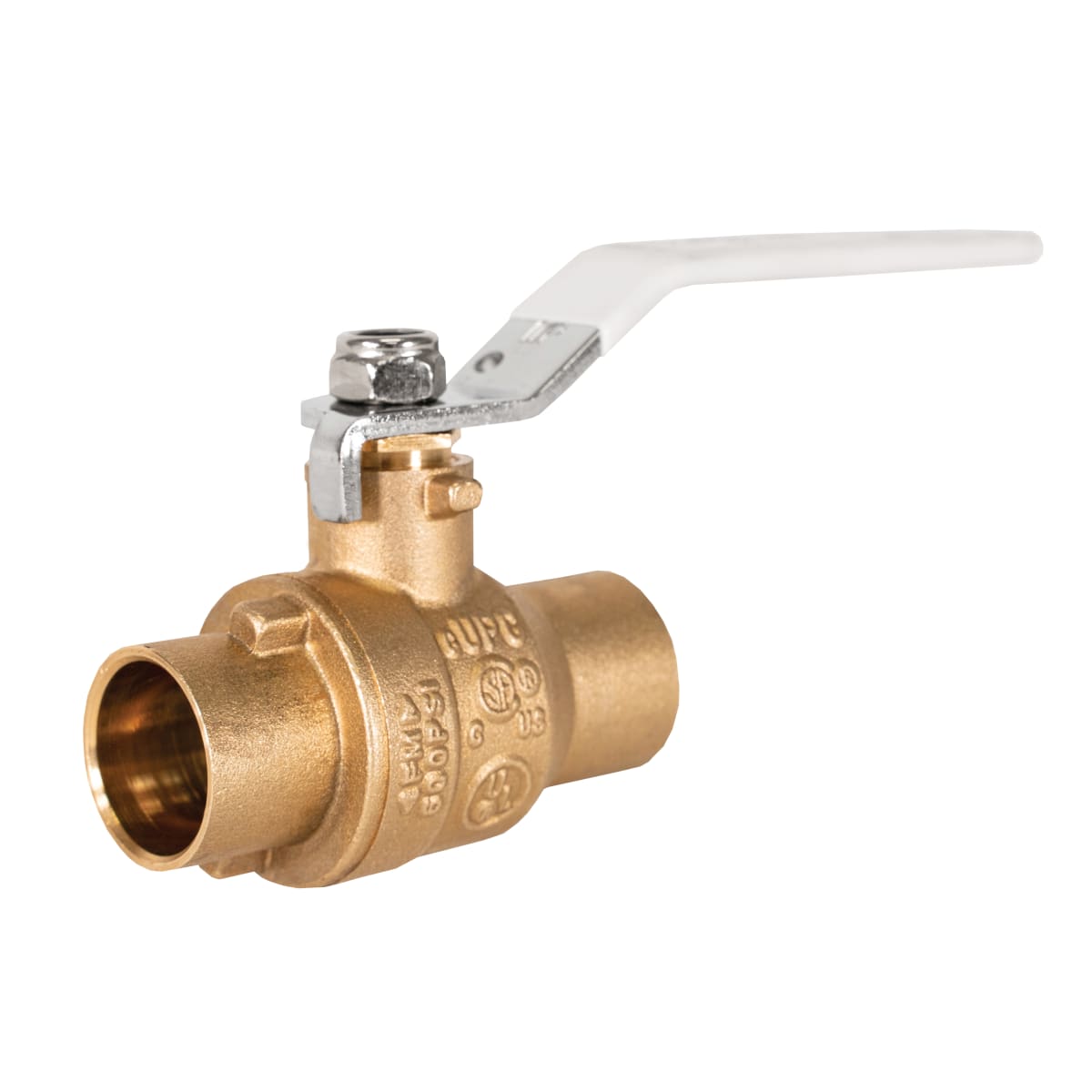

The Jomar 100-121SSG is a ball valve designed for plumbing applications. This two-piece valve features a full port design for maximum flow and is made from high-quality materials. With a pressure rating of six hundred psi, it is suitable for various fluid handling tasks. The solder connection ensures a secure fit for long-term use.

• Full port design allows maximum flow
• Constructed from brass and stainless steel for durability
• Meets multiple industry standards for safety and reliability

Product Highlights

This valve is ideal for HVAC, plumbing, and industrial applications where reliable flow regulation is essential.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 100-121SSG

Technical Specifications

• Ball Material: 304 Stainless Steel
• Body Material: Brass
• End Style: Solder
• Inlet to Outlet Length: 9.56 inches
• Nominal Size: 4 inches
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: Buna-N/PTFE
• Top to Inlet Center: 5.85 inches
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Type: 2-Piece
