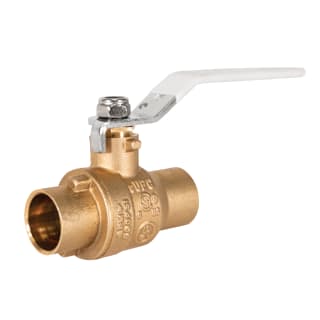

Jomar 100-120SSG Full Port, 2 Piece, Solder Connection, 600 WOG, Stainless Steel Ball and Stem

Product Description

The Jomar 100-120SSG is a full port, 2-piece ball valve designed for solder connections. This valve is built to withstand a pressure rating of six hundred WOG. It is made from durable materials including a stainless steel ball and brass body. The valve is ideal for various piping applications in plumbing and HVAC systems.

• Full port design allows for maximum flow
• Meets ASME and ANSI standards for safety
• NSF certified for drinking water applications

Product Highlights

This valve features a gland follower and single O-ring stem design, making it blow-out proof and leak tested.

Product Information

Standard Information

• Manufacturer: Jomar
• Type: 2-Piece

Technical Specifications

• Ball Material: 304 Stainless Steel
• Body Material: Brass
• End Style: Solder
• Inlet to Outlet Length: 7.1 inches
• Nominal Size: 3 inches
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: Buna-N/PTFE
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Top to Inlet Center: 4.92 inches
