Jomar 100-119SSG Full Port, 2 Piece, Solder Connection, 600 WOG, Stainless Steel Ball and S

Product Description

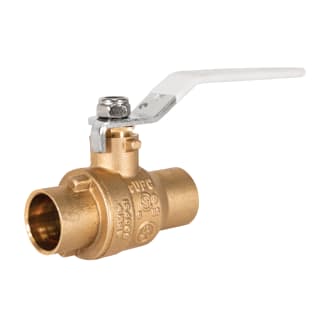

The Jomar Valve® Ball Valve, model 100-119SSG, features a two-piece design with a nominal size of two and a half inches. This solder valve operates at a pressure rating of six hundred psi WOG. It includes a full port for maximum flow and a two point five two inch orifice. The construction features a 304 stainless steel ball and is built to last with a brass body. The inlet to outlet length measures six point three nine inches with a top to inlet center distance of four and a quarter inches.

• Solder connection type
• Lead-free for safety
• Fully tested for leaks

Product Highlights

This valve is suitable for water, steam, and air applications. Its top features include a reliable gland follower and single O-Ring stem design, ensuring a strong and durable unit. With a sleek chrome-plated handle and robust rubber lock washer, this valve is engineered for ease of operation.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 100-119SSG

Technical Specifications

• Ball Material: 304 Stainless Steel
• Body Material: Brass
• End Style: Solder
• Inlet to Outlet Length: 6.39 inches
• Nominal Size: 2-1/2 inches
• Orifice Size: 2.52 inches
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE/Buna-N
• Top to Inlet Center: 4-1/4 inches
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Type: 2-Piece
