Jomar 100-118SSGLH 2 JF-100SG-LH FP BRZ C X C Ball Valve 2 IN

Product Description

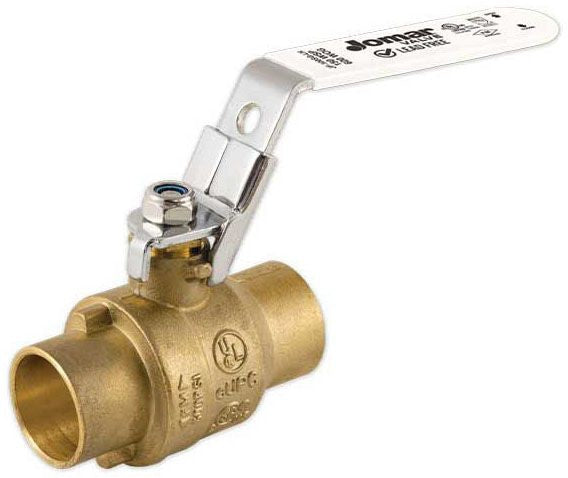

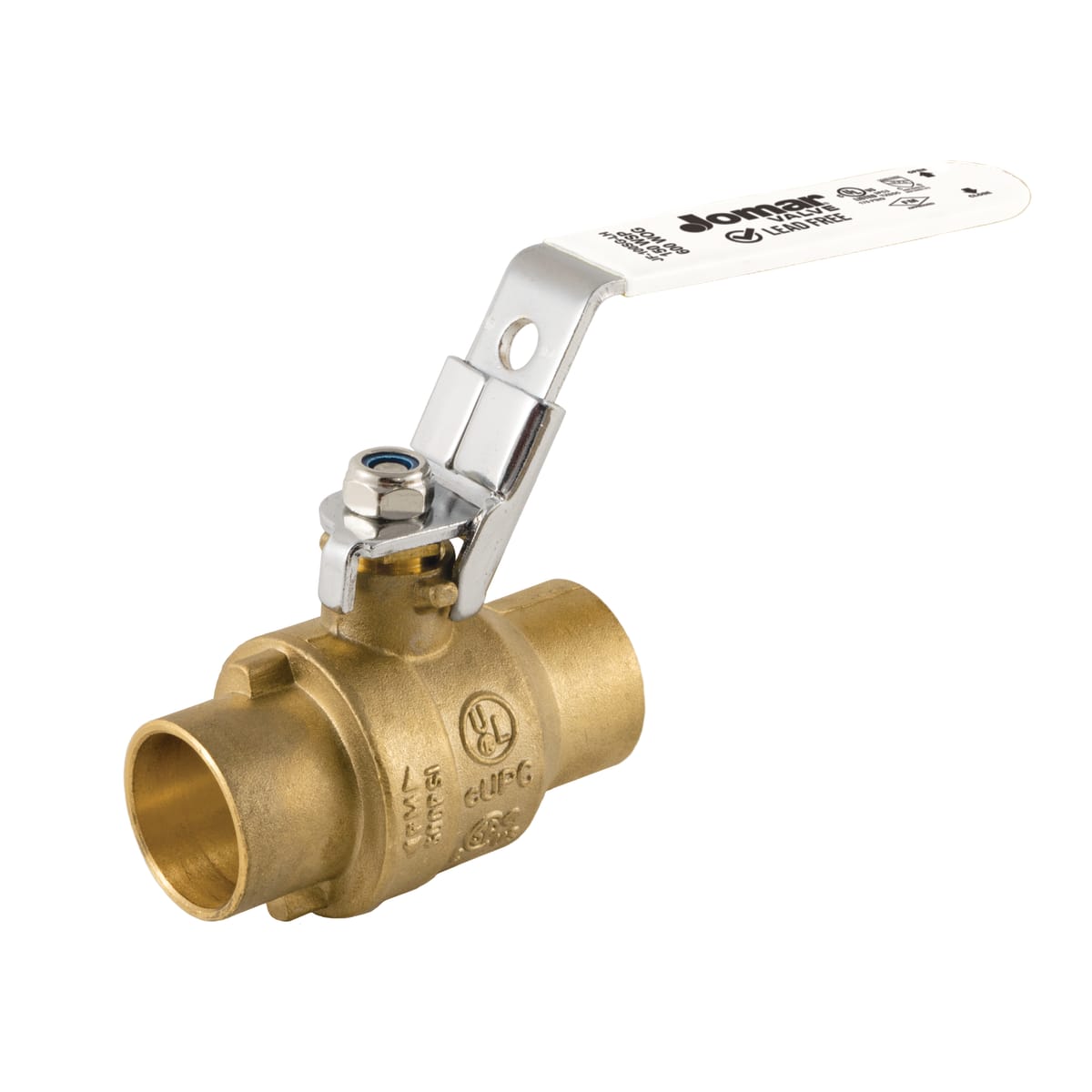

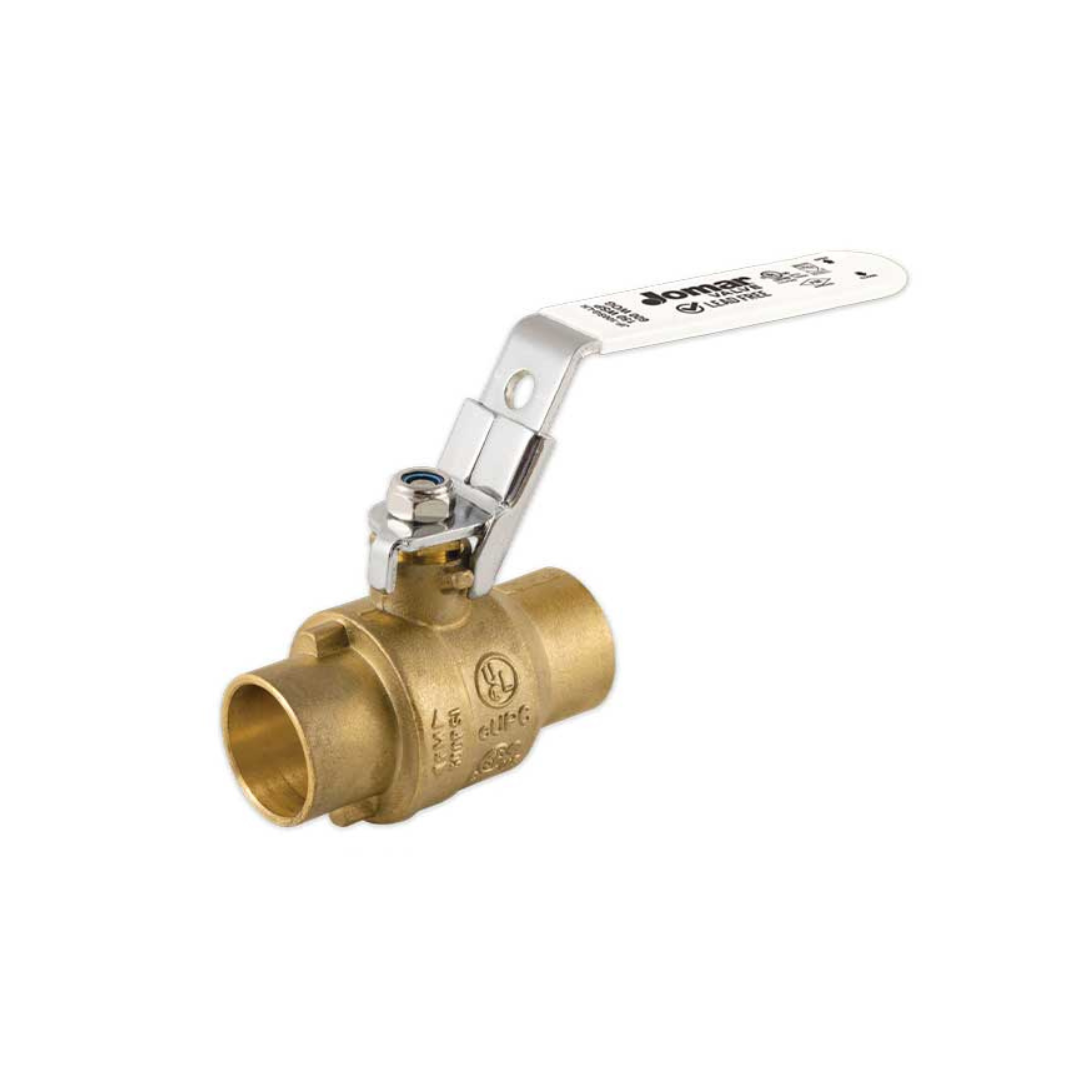

The JOMAR 100-118SSGLH 2 JF-100SG-LH FP BRZ C X C Ball Valve is a 2-piece full-port ball valve with a nominal size of 2 IN. It features a brass body and a locking lever handle. Designed for compression (solder) connection, it has a pressure rating of 600 PSI (WOG) and 150 PSI (SWP).

• Locking Lever Handle
• Lead Free
• Full Port

Product Highlights

This Jomar ball valve features a 2-piece design, full port, and solder connection, making it suitable for various plumbing applications requiring a reliable shut-off mechanism.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-118SSGLH

Technical Specifications

• Series/Model: Model JF-100SG-LH
• Nominal Size: 2 IN
• Connection Type: Compression (Solder)
• Pressure Rating: 600 PSI (WOG), 150 PSI (SWP)
• Body Material: Brass
• Handle Operator Type: Locking Lever Handle
• Handle Material: Steel
• Stem Material: 304 Stainless Steel
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Packing Material: PTFE
• Gland: Brass
• Seat Material: PTFE
• Material Specification: Body And Gland: UNS C46400
• Finish/Color: Chrome Plated Handle
• Industry Standards: C/US UL Listed, C/US CSA Certified, FM Approved, NSF 61-8, NSF 372, IAPMO, CUPC Certified
• Width: 5.34 IN
• Lead Free: Yes
• Other Physical Dimension: 3.97 IN Inlet Center To Top Of Handle, 5.59 IN Handle Length
• Actuator Type: Latch-Lock Handle
• Ball Material: 304 Stainless Steel
• End Style: Solder
• Inlet to Outlet Length: 5.34 in
• Port Type: Full
• Softgoods Material: PTFE/Buna-N
• Top to Inlet Center: 3.97 in
• Type: 2-Piece
• WOG: 600
• Material: Brass
• Port: Full Port
• Ball and Stem: Stainless Steel
• Sub Brand: Jo-Flo
• Item Name: Ball Valve
• Operator Type: Locking Lever Handle
• Gland Material: Brass
• Brand: Jomar Valve
• Size: 2 in
