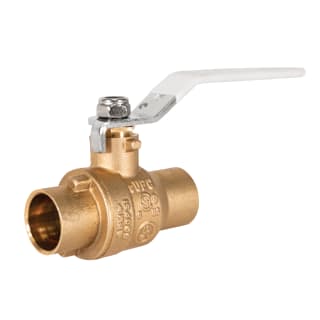

Jomar 100-118SSG Full Port, 2 Piece, Solder Connection, 600 WOG, Stainless Steel Ball and S

Product Description

The Jomar 100-118SSG is a reliable ball valve suitable for a variety of piping applications. This two-piece valve features a solder connection and is rated for 600 psi working pressure. It is designed with a full port which allows for maximum flow. The ball and stem are made from stainless steel, ensuring durability and resistance to corrosion.

• Two-piece valve design for easier installation and maintenance.
• Full port design allows for unrestricted flow.
• Leak-free operation with 100% leak testing performed.

Product Highlights

This Jomar valve is rated for 600 WOG and is ideal for both residential and commercial plumbing systems.

Product Information

Standard Information

• Brand: JOMAR
• MPN: 100-118SSG

Technical Specifications

• Ball Material: 304 Stainless Steel
• Body Material: Brass
• End Style: Solder
• Inlet to Outlet Length: 5.34 inches
• Nominal Size: 2 inches
• Orifice Size: 1.97 inches
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE/Buna-N
• Top to Inlet Center: 3.11 inches
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Type: 2-Piece
• Standards: ASME/ANSI B16.18, cULus Listed, cUPC Listed, FM Approved, IAPMO/ANSI Z1157-2014, NSF 61-8/372, NSF/ANSI 14-2014
