Jomar 100-117SSGLH JF-100SG-LH Ball Valve 1-1/2 IN

Product Description

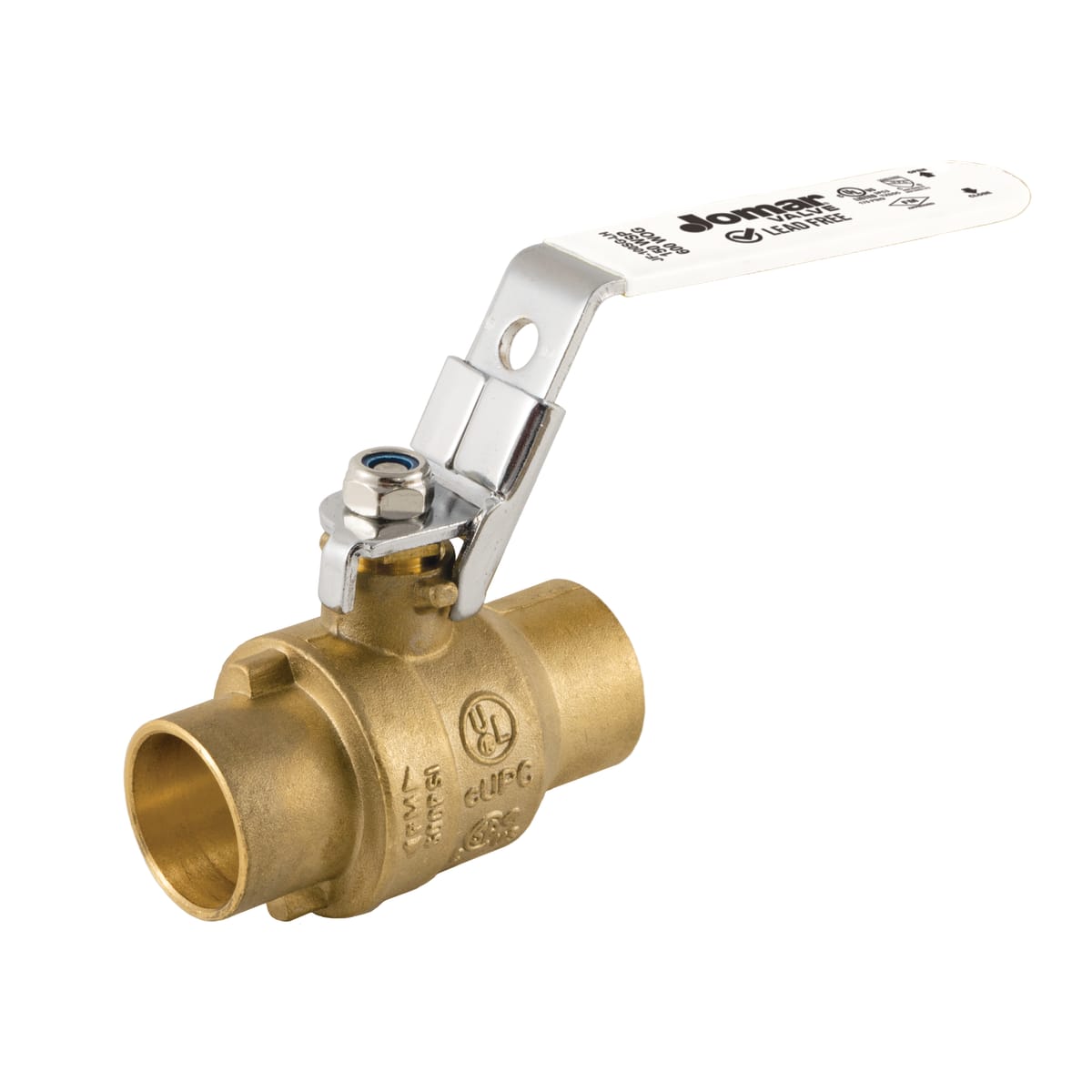

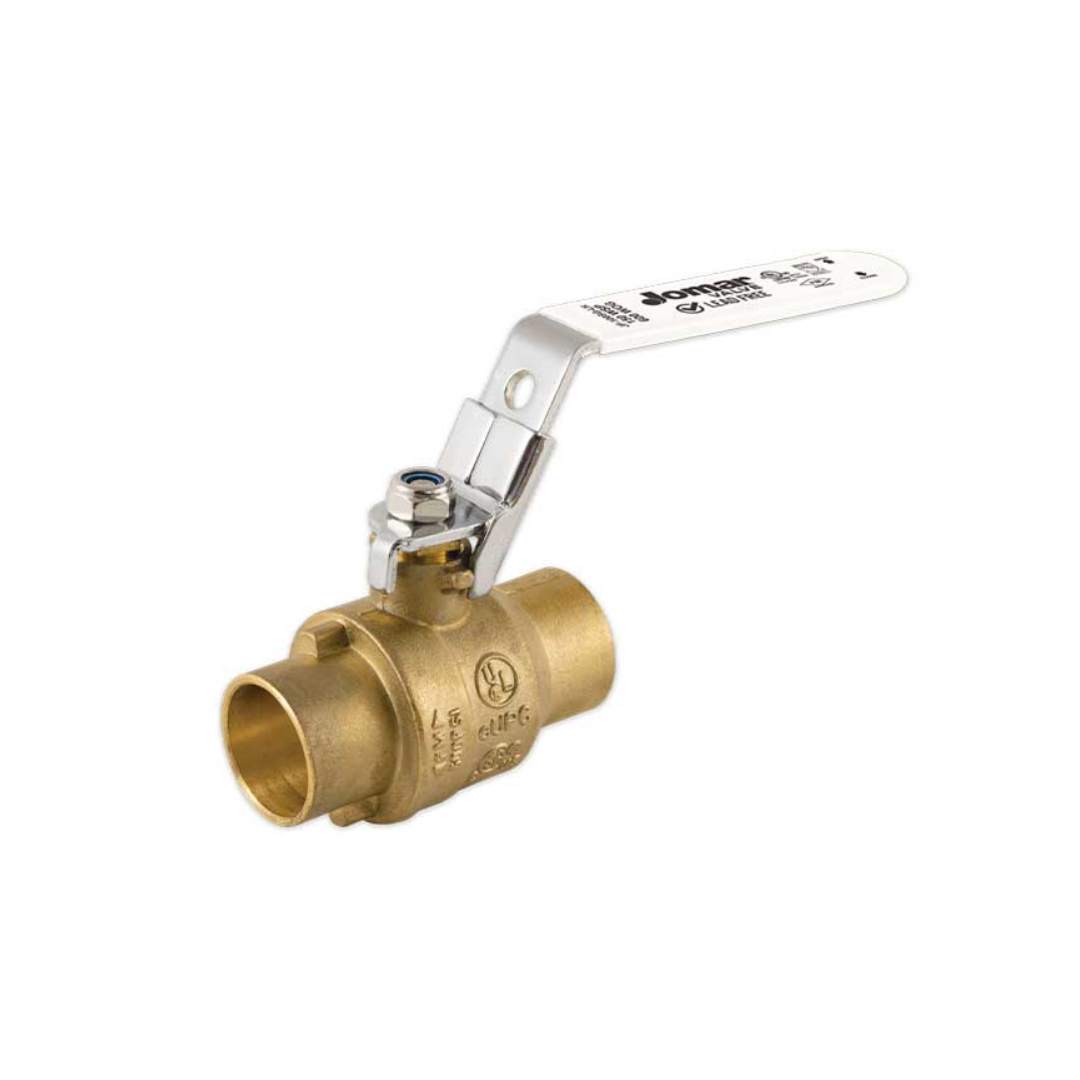

The JOMAR 100-117SSGLH is a Jo-Flo 2-Piece Full-Port Ball Valve, model JF-100SG-LH, with a nominal size of 1-1/2 IN. It features a compression (solder) connection type and a pressure rating of 600 PSI (WOG) and 150 PSI (SWP). The valve has a brass body and a locking lever handle made of steel. The stem and trim are constructed from 304 stainless steel.

• 2-Piece Full-Port Ball Valve
• Locking Lever Handle
• Lead Free

Product Highlights

This ball valve features a brass body, stainless steel trim, and a locking lever handle, making it suitable for various plumbing applications.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-117SSGLH

Technical Specifications

• Series/Model: Model JF-100SG-LH
• Nominal Size: 1-1/2 IN
• Connection Type: Compression (Solder)
• Pressure Rating: 600 PSI (WOG), 150 PSI (SWP)
• Body Material: Brass
• Handle Operator Type: Locking Lever Handle
• Handle Material: Steel
• Stem Material: 304 Stainless Steel
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Packing Material: PTFE
• Gland: Brass
• Seat Material: PTFE
• Material Specification (Body And Gland): UNS C46400
• Finish/Color: Chrome Plated Handle
• Width: 4.33 IN
• Lead Free: Yes
• Other Physical Dimension: 3.59 IN Inlet Center To Top Of Handle, 5.59 IN Handle Length
• Actuator Type: Latch-Lock Handle
• Ball Material: 304 Stainless Steel
• End Style: Solder
• Inlet to Outlet Length: 4.33 in
• Port Type: Full
• Softgoods Material: PTFE/Buna-N
• Top to Inlet Center: 3.59 in
• Type: 2-Piece
• Manufacturer: JOMAR
• WOG: 600
• Material: Brass
• Connection_Type: Sweat x Sweat
• Connection: Solder
• Size: 1-1/2 Inch
• Port: Full Port
• Valve Size: 1-1/2 in.
• Body Design: 2 Piece
• WOG Rating: 600 WOG
• Ball and Stem Material: Stainless Steel
• Handle Type: Latch Lock Handle
• Lead Content: Less than .25%
