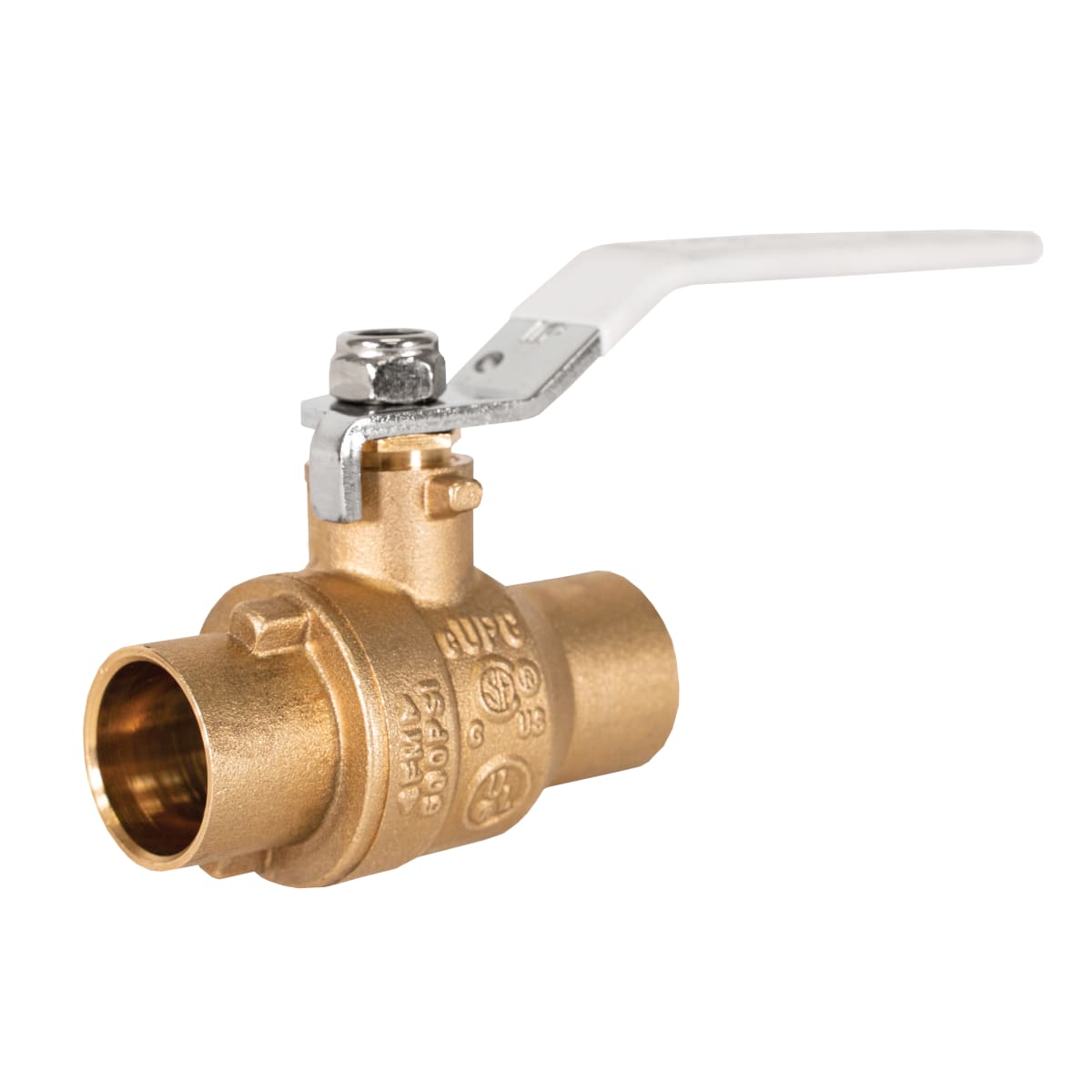

Jomar 100-117SSG Full Port, 2 Piece, Solder Connection, 600 WOG, Stainless Steel Ball and S

Product Description

The Jomar 100-117SSG is a reliable ball valve designed for various piping applications. This valve features a two-piece construction with a full port configuration, making it suitable for both residential and commercial use. It is built to handle a pressure rating of six hundred psi WOG with a solder connection.

• Constructed with durable brass and stainless steel materials
• Features a blow-out proof stem for added safety
• 100% leak tested for performance assurance

Product Highlights

This valve is ideal for use in plumbing systems where reliability is crucial. The lead-free brass end connection and PTFE/Buna-N soft goods ensure long-lasting performance in various environments.

Product Information

Standard Information

• Manufacturer: Jomar
• Type: 2-Piece

Technical Specifications

• Nominal Size: 1-1/2 inches
• Orifice Size: 1.57 inches
• Pressure Rating: 600 psi WOG
• Ball Material: 304 Stainless Steel
• Body Material: Brass
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• End Style: Solder
• Inlet to Outlet Length: 4.33 inches
• Top to Inlet Center: 2.8 inches
• Softgoods Material: PTFE/Buna-N
