Jomar 100-116SSGLH JF-100SG-LH Ball Valve 1-1/4 Inch

Product Description

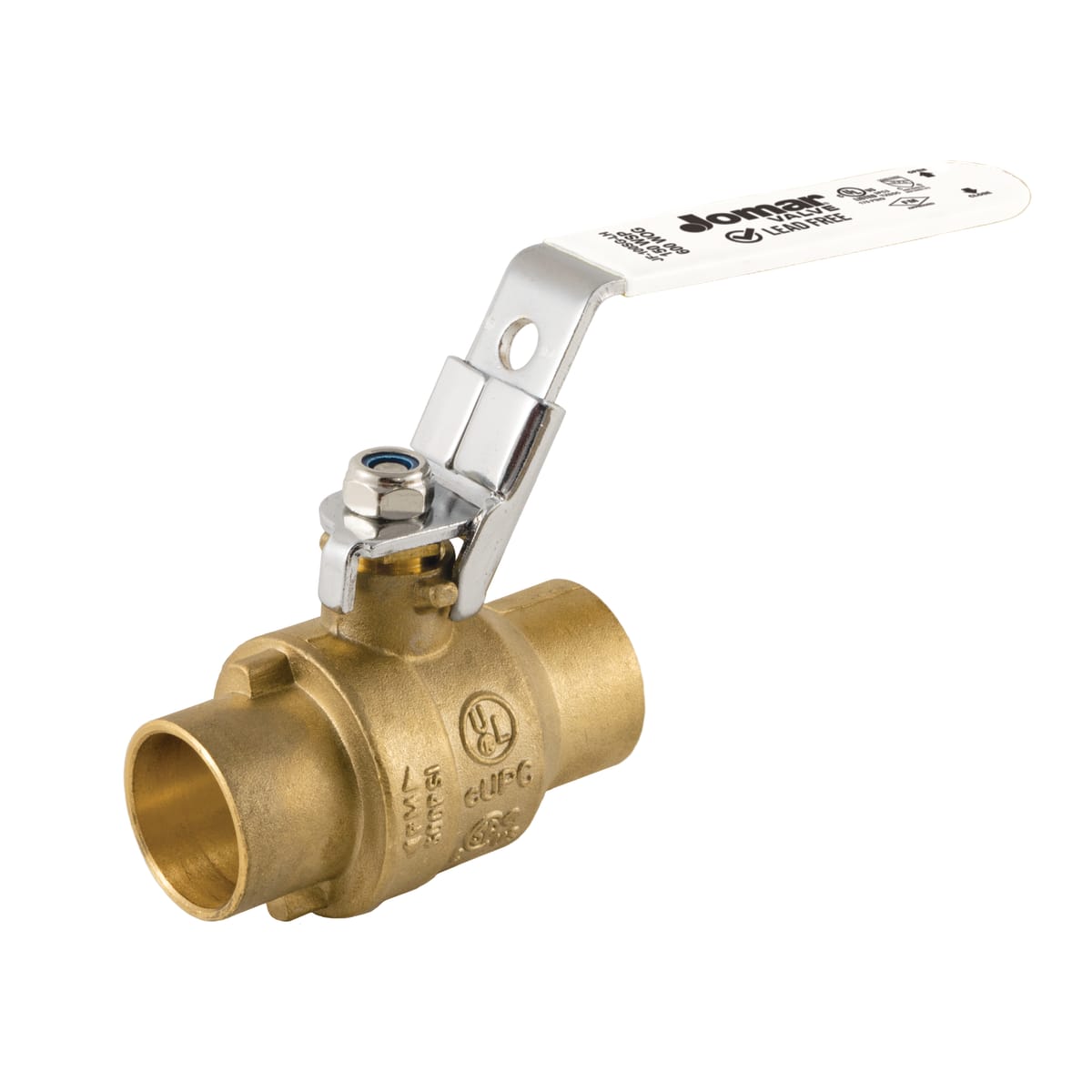

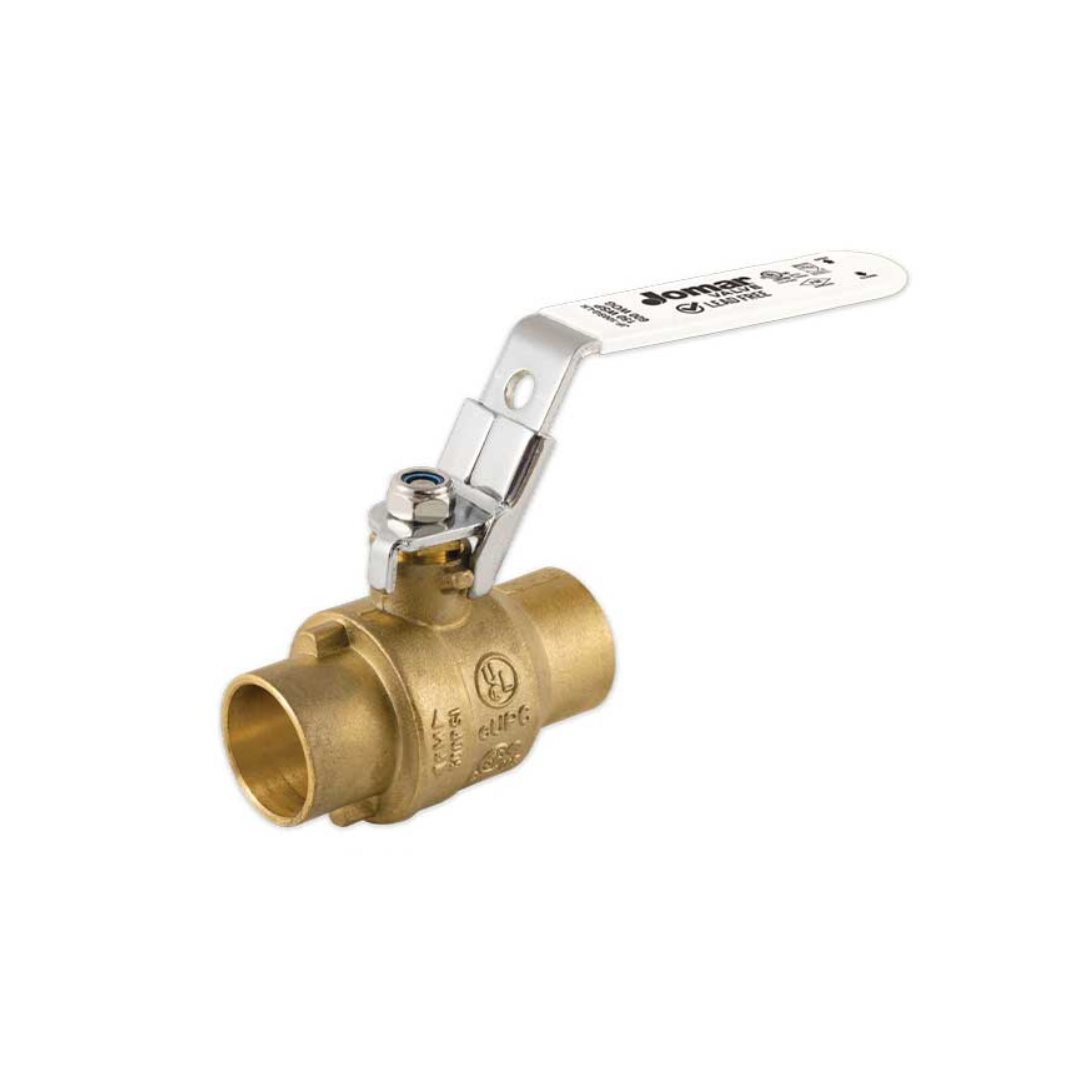

The JOMAR 100-116SSGLH JF-100SG-LH is a 2-piece full-port ball valve with a 1-1/4 inch nominal size. It features a brass body and a locking lever handle. Designed for solder connection, it has a pressure rating of 600 PSI (WOG) and 150 PSI (SWP). The valve is lead-free and complies with industry standards, including C/US UL, CSA, FM, NSF, IAPMO, and CUPC certifications.

• Jo-Flo 2-Piece Full-Port Ball Valve
• Locking Lever Handle
• Lead Free

Product Highlights

This JOMAR ball valve offers a reliable solution for various plumbing applications, ensuring safe and efficient operation with its robust construction and compliance with industry standards.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-116SSGLH

Technical Specifications

• Series/Model: Model JF-100SG-LH
• Nominal Size: 1-1/4 IN
• Connection Type: Compression (Solder)
• Pressure Rating: 600 PSI (WOG), 150 PSI (SWP)
• Body Material: Brass
• Handle Operator Type: Locking Lever Handle
• Handle Material: Steel
• Stem Material: 304 Stainless Steel
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Packing Material: PTFE
• Gland: Brass
• Seat Material: PTFE
• Material Specification: Body And Gland: UNS C46400
• Finish/Color: Chrome Plated Handle
• Width: 4.1 IN
• Lead Free: Yes
• Other Physical Dimension: 3.45 IN Inlet Center To Top Of Handle, 5.59 IN Handle Length
• Ball Material: 304 Stainless Steel
• End Style: Solder
• Inlet to Outlet Length: 4.1 in
• Port Type: Full
• Top to Inlet Center: 3.45 in
• Type: 2-Piece
