Jomar 100-116SSG Full Port, 2 Piece, Solder Connection, 600 WOG, Stainless Steel Ball and S

Product Description

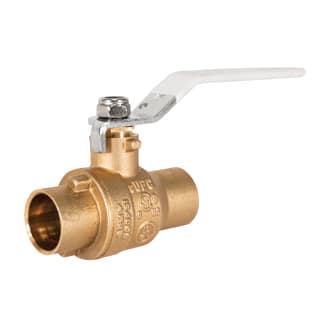

The Jomar 100-116SSG is a two-piece ball valve designed for solder connections. It supports a pressure rating of 600 WOG and features a full port design. This valve is made from durable materials to ensure reliable performance in plumbing applications.

• Full port design allows for maximum flow.
• Lead-free brass end connection ensures safety.
• Blow-out proof stem prevents leaks.

Product Highlights

This valve is ideal for applications requiring reliable and efficient flow control in plumbing systems. Its construction features stainless steel and brass components for durability.

Product Information

Standard Information

• Manufacturer: JOMAR
• Product Type: Ball Valve

Technical Specifications

• Ball Material: 304 Stainless Steel
• Body Material: Brass
• End Style: Solder
• Inlet to Outlet Length: 4.1 inches
• Nominal Size: 1-1/4 inches
• Orifice Size: 1.26 inches
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE/Buna-N
• Top to Inlet Center: 2.52 inches
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Type: 2-Piece
