Jomar 100-115SSGLH JF-100SG-LH Ball Valve 1 IN

Product Description

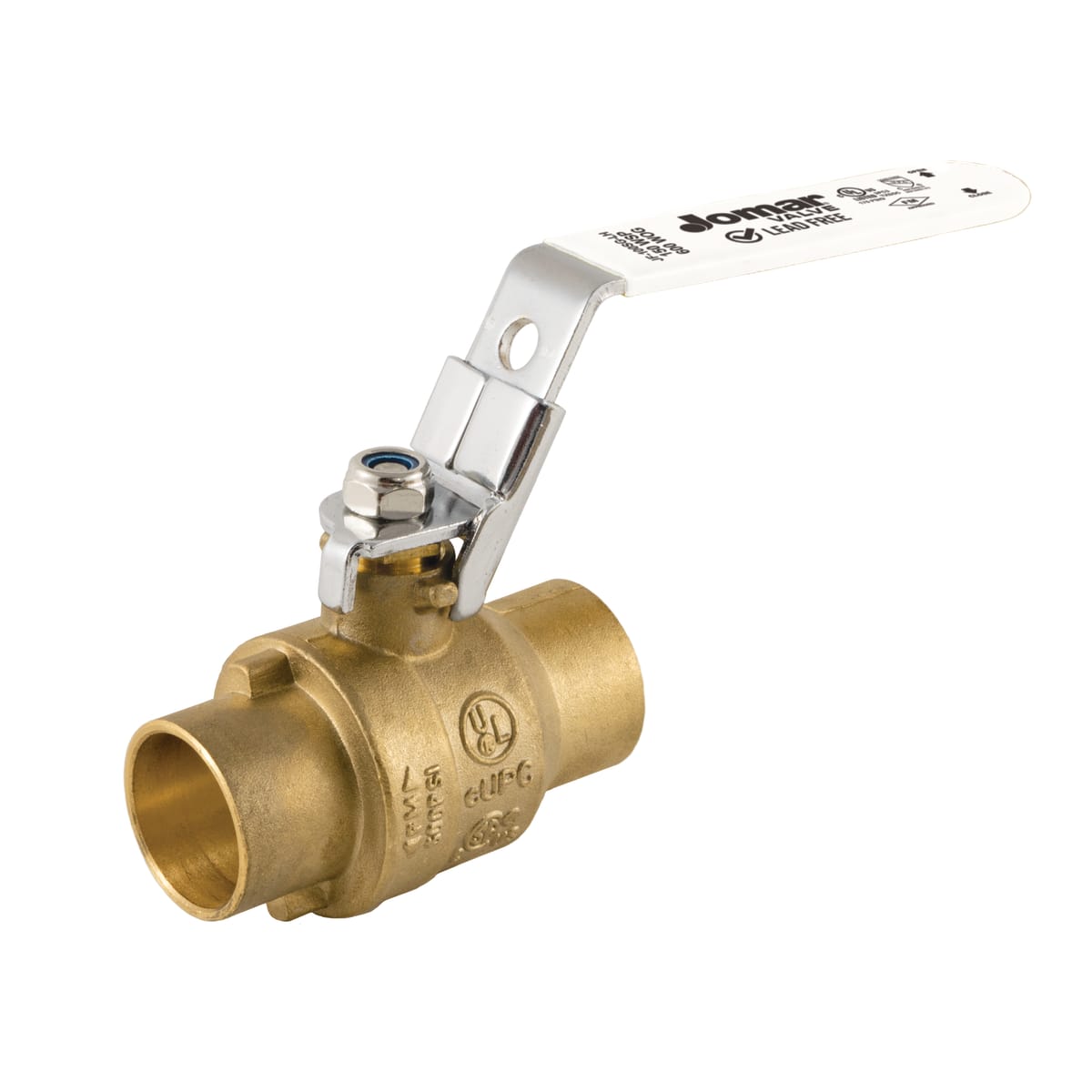

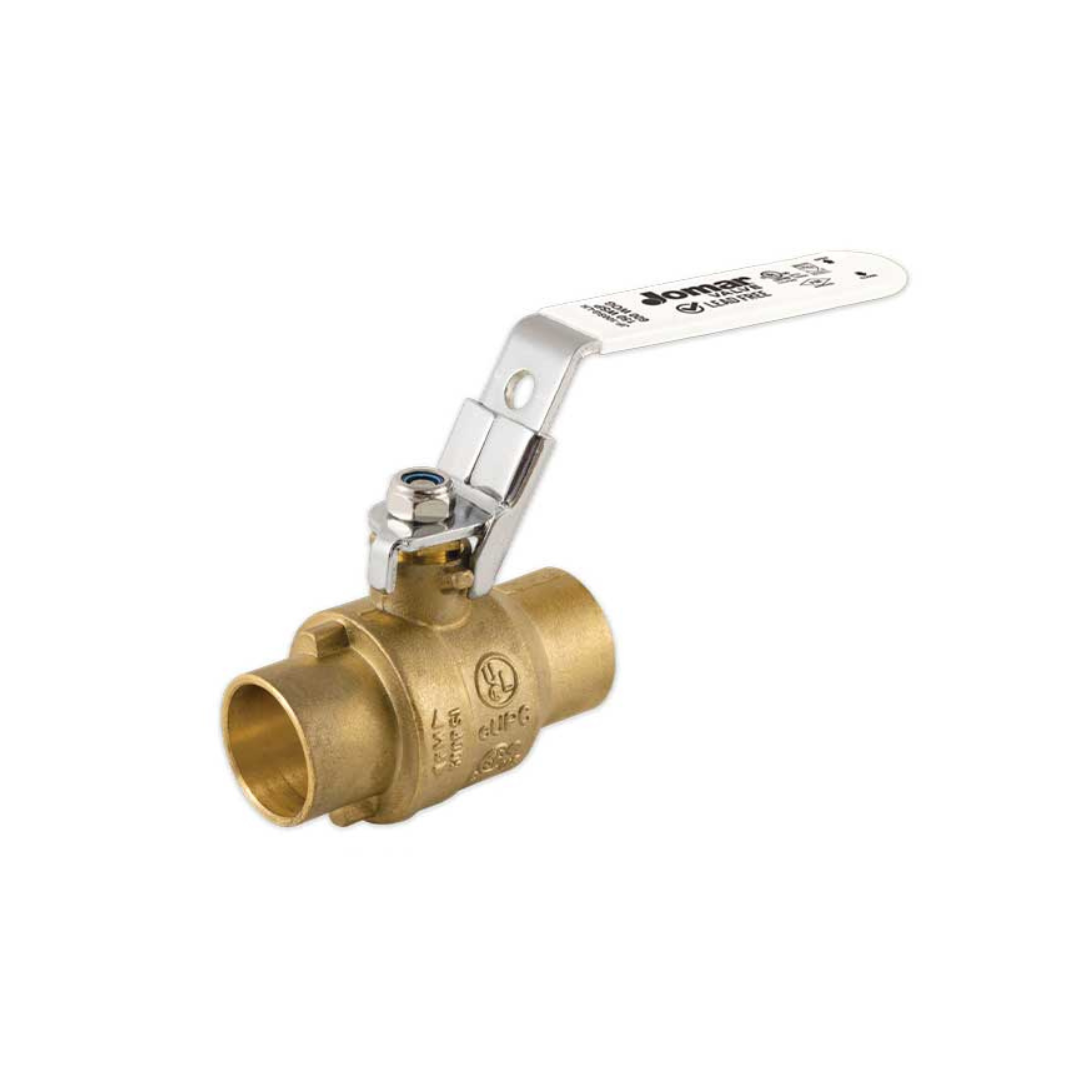

The JOMAR 100-115SSGLH JF-100SG-LH is a 2-piece full-port ball valve with a 1-inch nominal size. It features a compression (solder) connection type and a pressure rating of 600 PSI (WOG) and 150 PSI (SWP). The valve has a brass body and a locking lever handle. The stem and trim are made of 304 stainless steel.

• Jo-Flo 2-Piece Full-Port Ball Valve
• Locking Lever Handle
• Lead Free

Product Highlights

This JOMAR ball valve is ideal for applications requiring a reliable shutoff with a full-port design and secure locking mechanism.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-115SSGLH

Technical Specifications

• Series/Model: Model JF-100SG-LH
• Nominal Size: 1 IN
• Connection Type: Compression (Solder)
• Pressure Rating: 600 PSI (WOG), 150 PSI (SWP)
• Body Material: Brass
• Operator Type: Locking Lever Handle
• Handle Material: Steel
• Stem Material: 304 Stainless Steel
• Trim Material: 304 Stainless Steel Ball
• Packing Material: PTFE
• Gland: Brass
• Seat Material: PTFE
• Material Specification: Body And Gland: UNS C46400
• Finish/Color: Chrome Plated Handle
• Industry Standards: C/US UL Listed, C/US CSA Certified, FM Approved, NSF 61-8, NSF 372, IAPMO, CUPC Certified
• Width: 3.27 IN
• Lead Free: Yes
• Other Physical Dimension: 3.22 IN Inlet Center To Top Of Handle, 4.86 IN Handle Length
• Ball Material: 304 Stainless Steel
• End Style: Solder
• Inlet to Outlet Length: 3.27 in
• Port Type: Full
• Softgoods Material: PTFE/Buna-N
• Top to Inlet Center: 3.22 in
• Type: 2-Piece
• Manufacturer: JOMAR
