Jomar 100-115SSG Full Port 2 Piece Solder Connection 600 WOG

Product Description

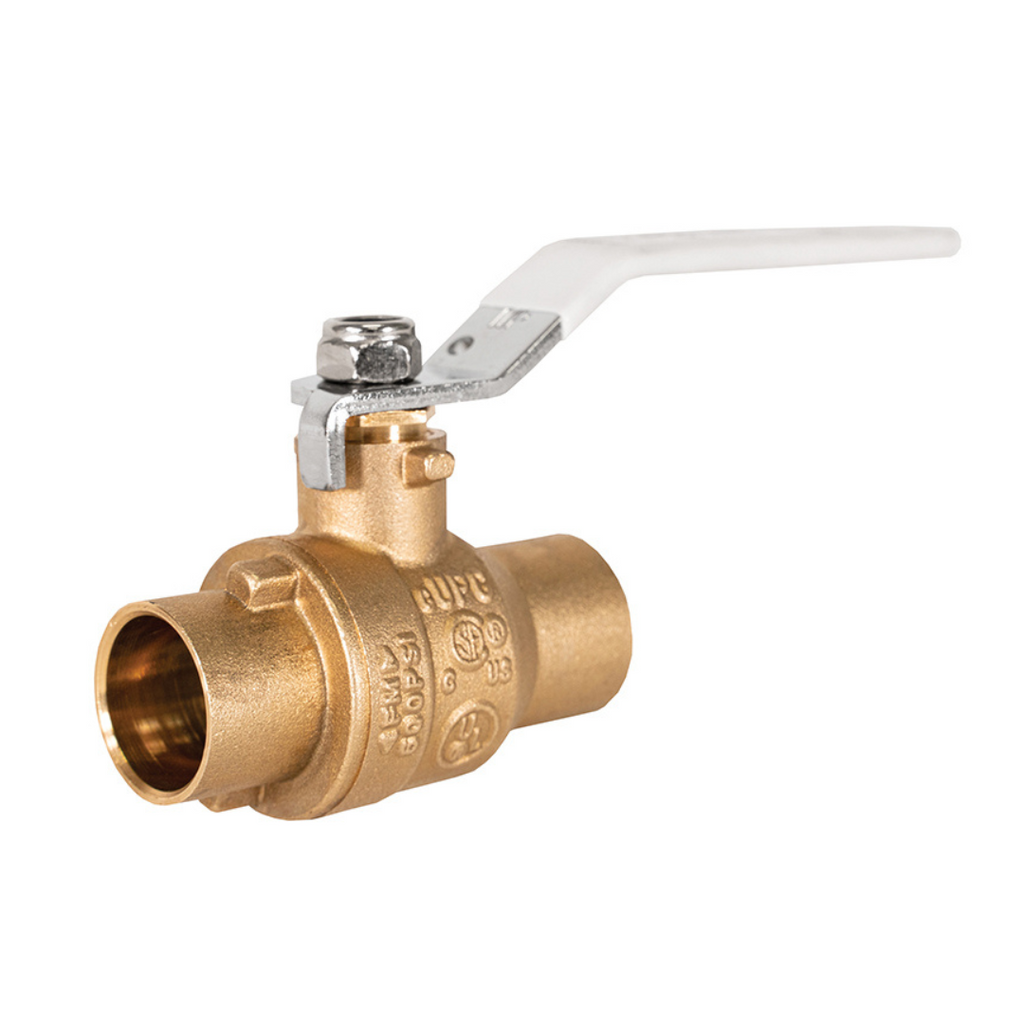

The Jomar 100-115SSG is a ball valve designed for solder connections. This 2-piece valve supports a full port design with a maximum pressure rating of 600 psi WOG. It features brass construction with a stainless steel ball and stem, ensuring durability and reliability. This valve is suitable for various piping applications where solder connections are required.

• Full port design for minimal flow restriction
• Made with lead-free brass and 304 stainless steel
• Blow-out proof stem design for safety

Product Highlights

The Jomar 100-115SSG provides a leak-tested solution for plumbing needs, ensuring compliance with industry standards.

Product Information

Standard Information

• Manufacturer: JOMAR
• Nominal Size: 1 inch

Technical Specifications

• Ball Material: 304 Stainless Steel
• Body Material: Brass
• Orifice Size: 0.98 inches
• Inlet to Outlet Length: 3.27 inches
• Top to Inlet Center: 2.52 inches
• Softgoods Material: PTFE/Buna-N
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Type: 2-Piece
