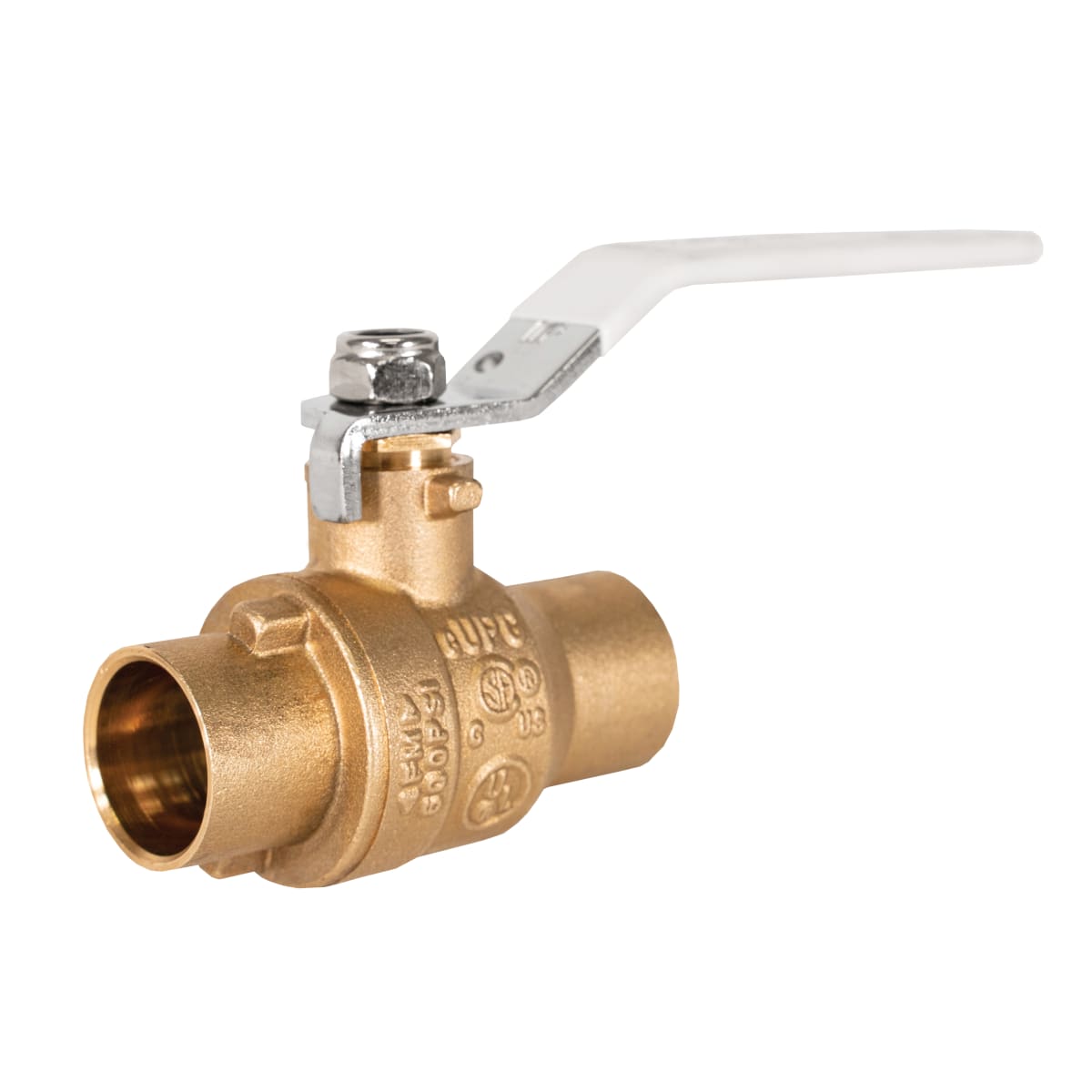

Jomar 100-114SSG Full Port, 2 Piece, Solder Connection, 600 WOG, Stainless Steel Ball and Stem

Product Description

The Jomar Valve® 100-114SSG is a ball valve designed for efficient flow control. This two-piece valve features a solder connection and is rated for 600 psi working pressure. Made from durable materials, it is suitable for various piping applications.

• Full port design allows maximum flow.
• Constructed with 304 stainless steel for corrosion resistance.
• PTFE/Buna-N soft goods ensure reliable sealing.

Product Highlights

This valve is ideal for both residential and commercial plumbing systems. It has been tested for leaks and complies with industry standards.

Product Information

Standard Information

• Manufacturer: Jomar
• MPN: 100-114SSG

Technical Specifications

• Ball Material: 304 Stainless Steel
• Body Material: Brass
• End Style: Solder
• Inlet to Outlet Length: 2.8 inches
• Nominal Size: 3/4 inches
• Orifice Size: 3/4 inches
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE/Buna-N
• Top to Inlet Center: 2.36 inches
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Type: 2-Piece
