Jomar 100-113SSGLH 1/2 jf-100sg-lh fp brz c x c ball valve

Product Description

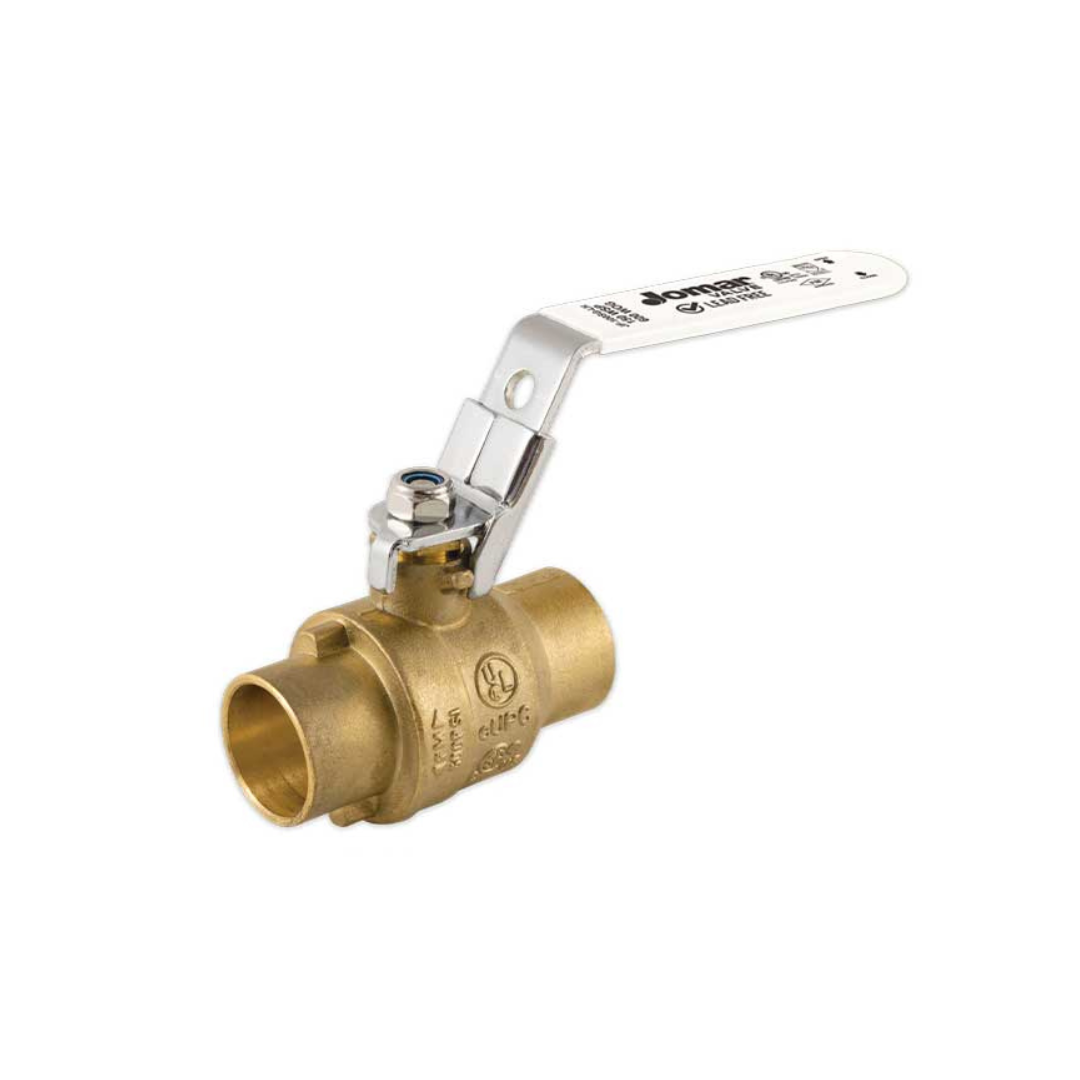

The JOMAR 100-113SSGLH is a Jo-Flo 2-Piece Full-Port Ball Valve, model JF-100SG-LH, with a 1/2 IN nominal size and compression (solder) connection type. It has a pressure rating of 600 PSI (WOG) and 150 PSI (SWP). The valve features a brass body, a locking lever handle, and a 304 stainless steel stem and ball. Suitable for various plumbing applications.

• Jo-Flo 2-Piece Full-Port Ball Valve
• Locking Lever Handle
• Lead Free

Product Highlights

Full port ball valve with brass body, stainless steel trim, and solder connection.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-113SSGLH

Technical Specifications

• Series/Model: JF-100SG-LH
• Nominal Size: 1/2 IN
• Connection Type: Compression (Solder)
• Pressure Rating: 600 PSI (WOG), 150 PSI (SWP)
• Body Material: Brass
• Handle Operator Type: Locking Lever Handle
• Handle Material: Steel
• Stem Material: 304 Stainless Steel
• Trim Material: 304 Stainless Steel Ball
• Packing Material: PTFE
• Gland Material: Brass
• Seat Material: PTFE
• Material Specification: Body And Gland: UNS C46400
• Industry Standards: C/US UL Listed, C/US CSA Certified, FM Approved, NSF 61-8, NSF 372, IAPMO, CUPC Certified
• Width: 2.17 IN
• Lead Free: Yes
• Other Physical Dimension: 2.69 IN Inlet Center To Top Of Handle, 4.06 IN Handle Length
• Ball Material: 304 Stainless Steel
• End Style: Solder
• Inlet to Outlet Length: 2.17 in
• Port Type: Full
• Softgoods Material: PTFE/Buna-N
• Top to Inlet Center: 2.69 in
• Type: 2-Piece
• Manufacturer: JOMAR
• WOG: 600
• Certifications: IAPMO: NSF 61-8 NSF 372 Uniform Plumbing Code (cUPC) IAPMO/ANSI Z1157-2014 NSF/ANSI 14-2014 FM Approval (1/2” - 1-1/2” 600 WOG, 2” 500 WOG) MSS SP-110 ASME/ANSI B16.18
• Sub Brand: Jo-Flo
• Item Name: Ball Valve
• Port: Full Port
• Connection: Solder Connection
• Ball and Stem: Stainless Steel
• Handle: Latch Lock Handle
• Body Style: 2 Piece
