Jomar 100-107SSGLH 1-1/2 IN JF-100TG-LH FP BRZ THRD Ball Valve

Product Description

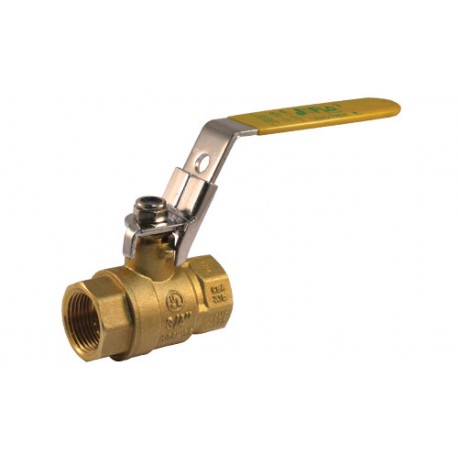

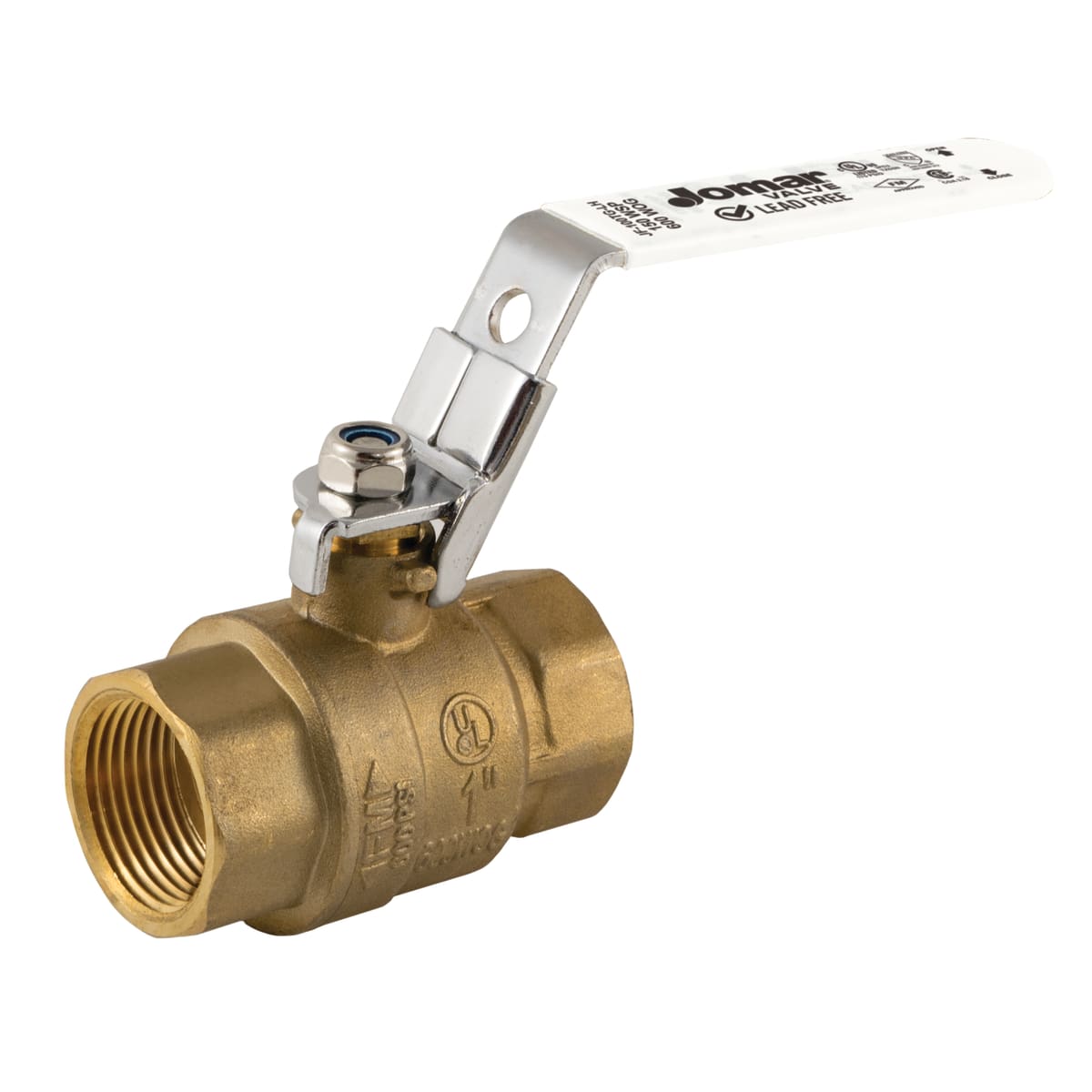

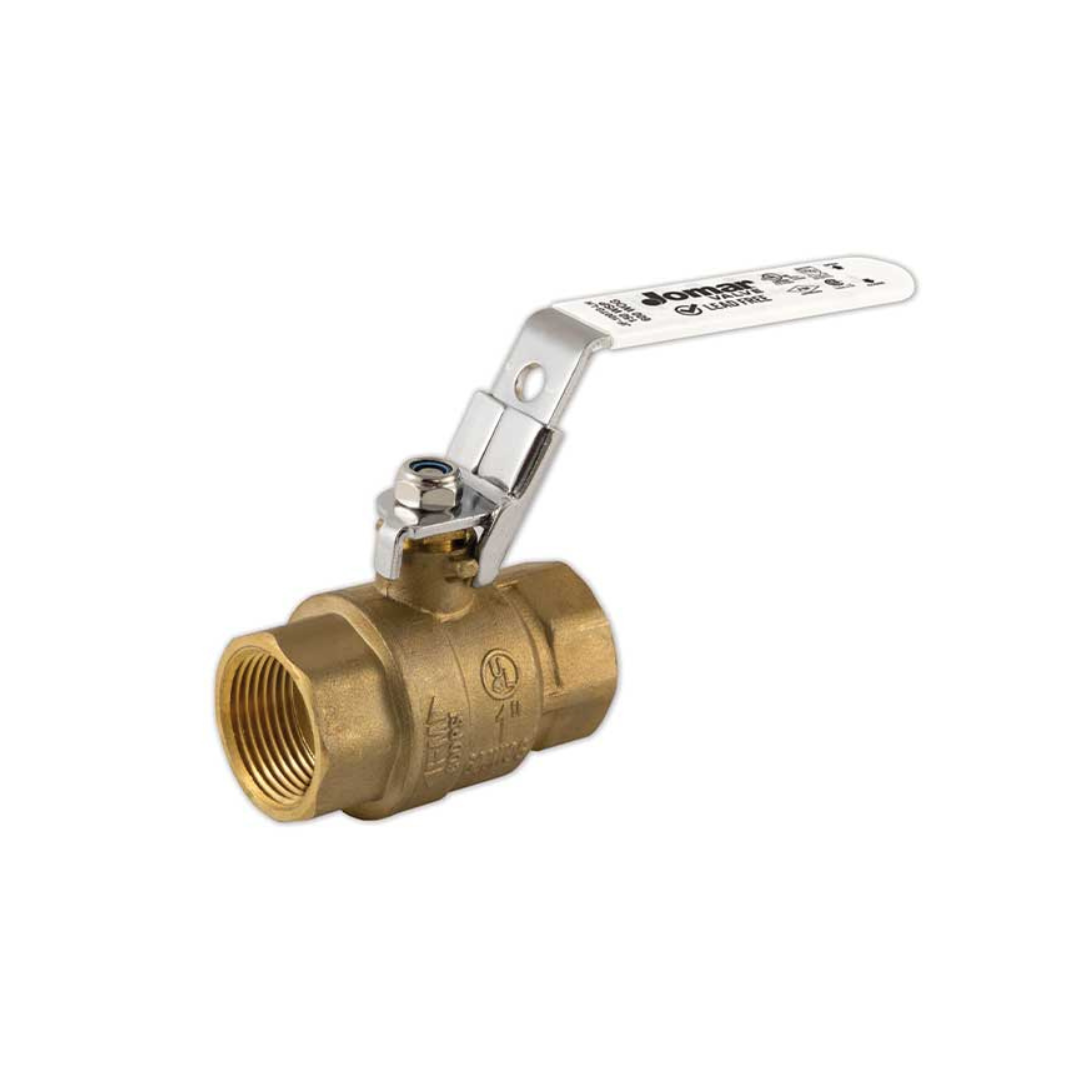

The JOMAR 100-107SSGLH is a 1-1/2 IN Jo-Flo 2-Piece Full-Port Ball Valve. This ball valve features a brass body material and a locking lever handle. It is designed with a 304 stainless steel stem and trim, and PTFE seats and packing. It has a pressure rating of 600 PSI (WOG) and 150 PSI (SWP).

• 2-Piece Full-Port Ball Valve
• Locking Lever Handle
• Lead Free

Product Highlights

Full port ball valve with brass body, stainless steel trim, and locking lever handle. Suitable for various applications requiring a reliable shutoff.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-107SSGLH

Technical Specifications

• Series/Model: Model JF-100TG-LH
• Nominal Size: 1-1/2 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (WOG), 150 PSI (SWP)
• Body Material: Brass
• Handle Operator Type: Locking Lever Handle
• Handle Material: Steel
• Stem Material: 304 Stainless Steel
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Packing Material: PTFE
• Gland: Brass
• Seat Material: PTFE
• Material Specification: Body And Gland: UNS C46400
• Width: 3.88 IN
• Lead Free: Yes
• Other Physical Dimension: 3.59 IN Inlet Center To Top Of Handle, 5.59 IN Handle Length
• Ball Material: 304 Stainless Steel
• End Style: NPT
• Inlet to Outlet Length: 3.88 in
• Port Type: Full
• Top to Inlet Center: 3.59 in
• Type: 2-Piece
• Manufacturer: JOMAR
• Reference: 100-107SSGLH
• Condition: New
• Sub Brand: Jo-Flo
• Item Name: Ball Valve
• Operator Type: Locking Lever Handle
• Gland Material: Brass
• Industry Standards: C/US UL Listed, C/US CSA Certified, FM Approved, NSF 61-8, NSF 372, IAPMO, CUPC Certified
• Stem Design: Gland follower and single o-ring stem design
• Stem: Blow-out proof stem
• Ball and Stem: Stainless steel ball and stem
• Testing: 100% leak tested
• Lead Content: Wetted surfaces contain less than .25% lead content
