Jomar 100-104SSGLH JF-100TG-LH Ball Valve 3/4 inches

Product Description

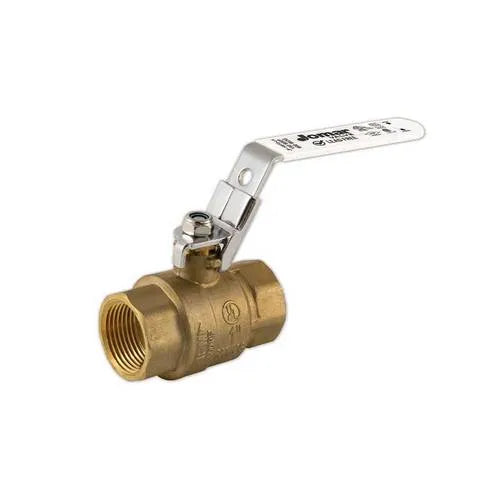

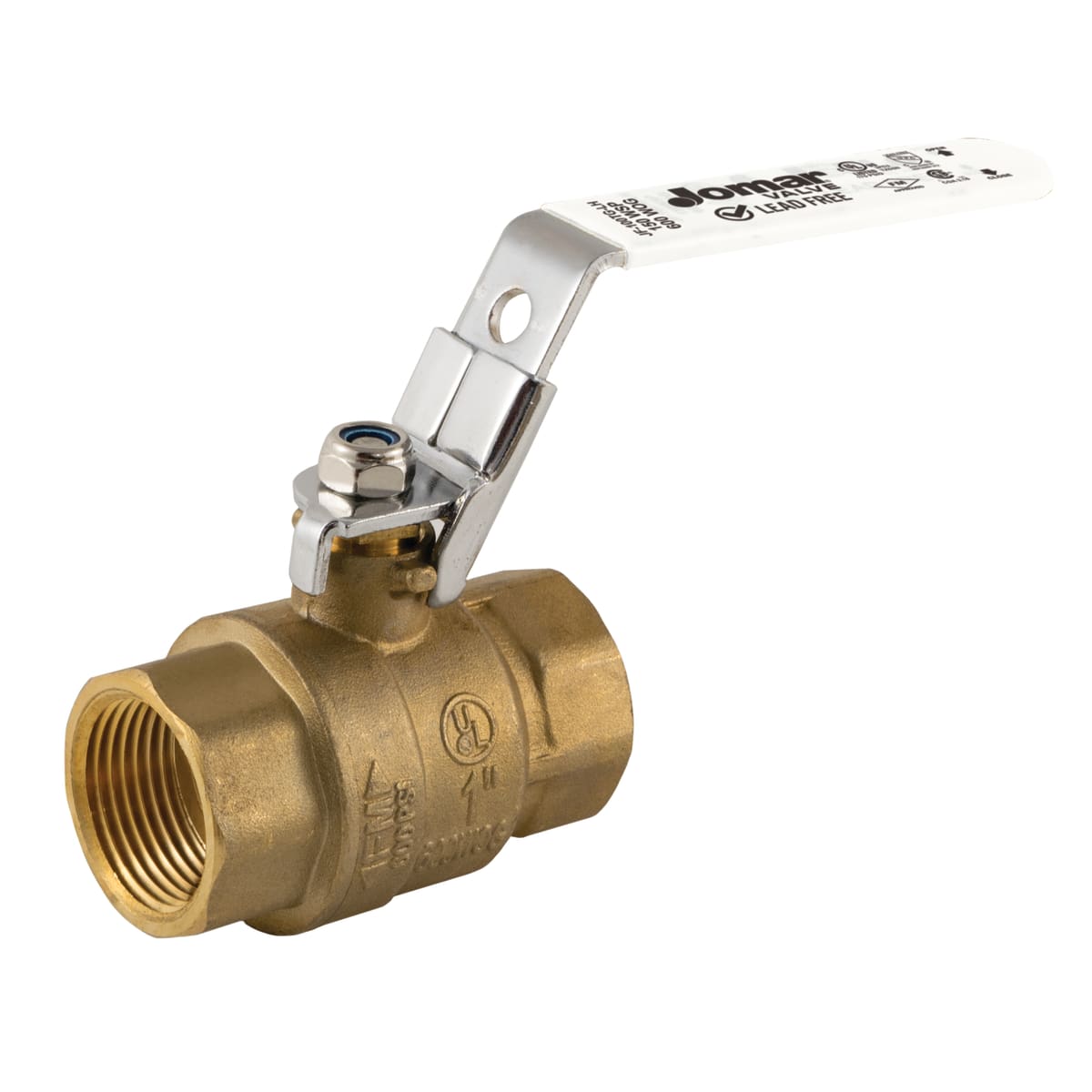

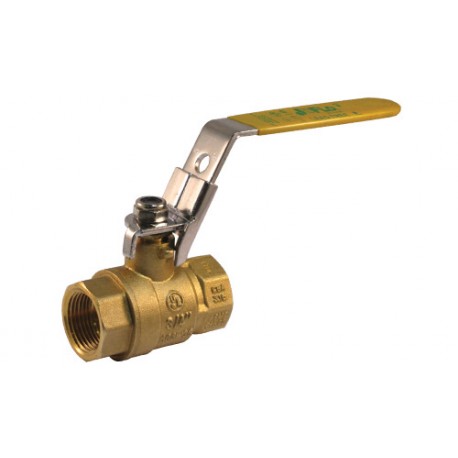

The JOMAR 100-104SSGLH JF-100TG-LH is a lead-free brass ball valve with a 2-piece, full port design and threaded connection. It features stainless steel trim and a locking handle, with a pressure rating of 600 WOG. The valve is constructed with dezincification-resistant brass alloy for enhanced durability.

• 2-Piece Full-Port Ball Valve
• Locking Lever Handle
• Lead Free

Product Highlights

This JOMAR ball valve offers reliable performance with its stainless steel ball and stem, blow-out proof stem, and 100% leak-tested design.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-104SSGLH
• Country of Origin: China

Technical Specifications

• Series/Model: Model JF-100TG-LH
• Nominal Size: 3/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (WOG), 150 PSI (SWP)
• Body Material: Brass
• Handle Operator Type: Locking Lever Handle
• Handle Material: Steel
• Stem Material: 304 Stainless Steel
• Trim Material: 304 Stainless Steel Ball
• Packing Material: PTFE
• Gland: Brass
• Seat Material: PTFE
• Body And Gland Material Specification: UNS C46400
• Finish/Color: Chrome Plated Handle
• Width: 2.52 IN
• Lead Free: Yes
• Inlet Center To Top Of Handle: 2.91 IN
• Handle Length: 4.86 IN
• Ball Material: 304 Stainless Steel
• End Style: NPT
• Inlet to Outlet Length: 2.52 in
• Port Type: Full
• Type: 2-Piece
• Manufacturer: JOMAR
• WOG: 600
• Model: 100-104SSGLH
• Nominal Pipe Size: 3/4"
• Thread Type: NPT
• Number of Ports: 2
• Condition: New
• Size: 3/4"
