Jomar 100-104-LH JF100T Ball Valve 3/4 inches 600 WOG

Product Description

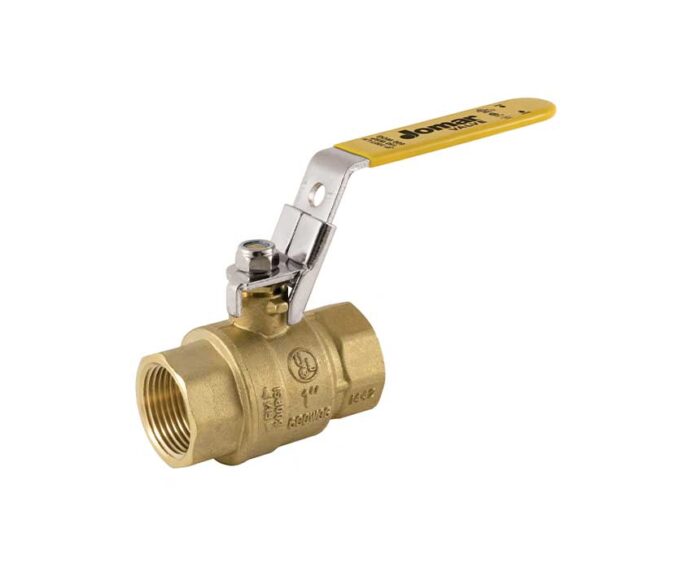

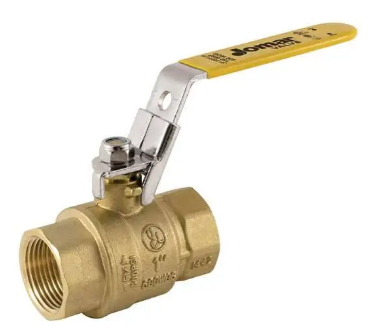

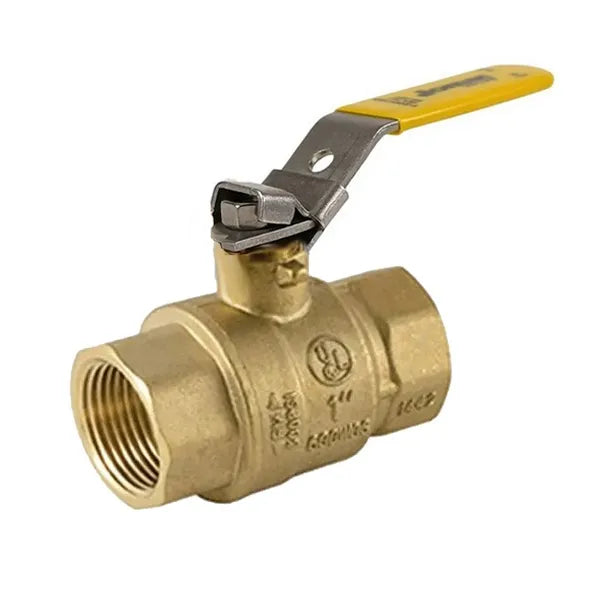

The JOMAR 100-104-LH JF100T ball valve is a 3/4" 2-piece full port valve with a threaded connection and a latch lock handle. It is designed for 600 WOG pressure. The valve features a gland follower, a single O-ring stem design, and a blow-out proof stem. It is 100% leak tested and has a 29 in-Hg vacuum rating.

• Gland Follower and Single O-Ring Stem Design
• Blow-Out Proof Stem
• 100% Leak Tested

Product Highlights

This Jomar ball valve features a brass body, a chrome-plated brass ball, and PTFE/Buna-N softgoods. It is suitable for various applications requiring a reliable shut-off.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-104-LH
• Country of Origin: United States

Technical Specifications

• Actuator Type: Latch-Lock Handle
• Ball Material: Chrome Plated Brass
• Body Material: Brass C37700
• End Connection: NPT Threaded
• Inlet to Outlet Length: 2.52 in
• Nominal Size: 3/4 In
• Orifice Size: 3/4 in
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE/Buna-N
• Top to Inlet Center: 2.91 in
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
• Brand: Jomar
• Model: JF-100T-LH
• MPN: 100-104LH
• UPC: 662527294234
• Country of Origin: United States
• Part Material Body: Brass C37700
• Ball: Chrome Plated Brass C37700
• Seat (2): PTFE
• Stem: Brass C37700
• Packing: PTFE
• Stem O-ring: Buna-N
• Packing Gland: Brass C37700
• Handle: Chrome-Plated Steel
• Lock Washer: Steel Chrome Plated
• Size: 3/4"
• Port: Full Port
• Design Type: 2-Piece
• Handle Type: Latch Lock Handle
• Seat Material: PTFE
• Stem Material: Brass
• Stem Design: Blowout Proof
• Max Pressure: 600 psi WOG, 150 psi steam
