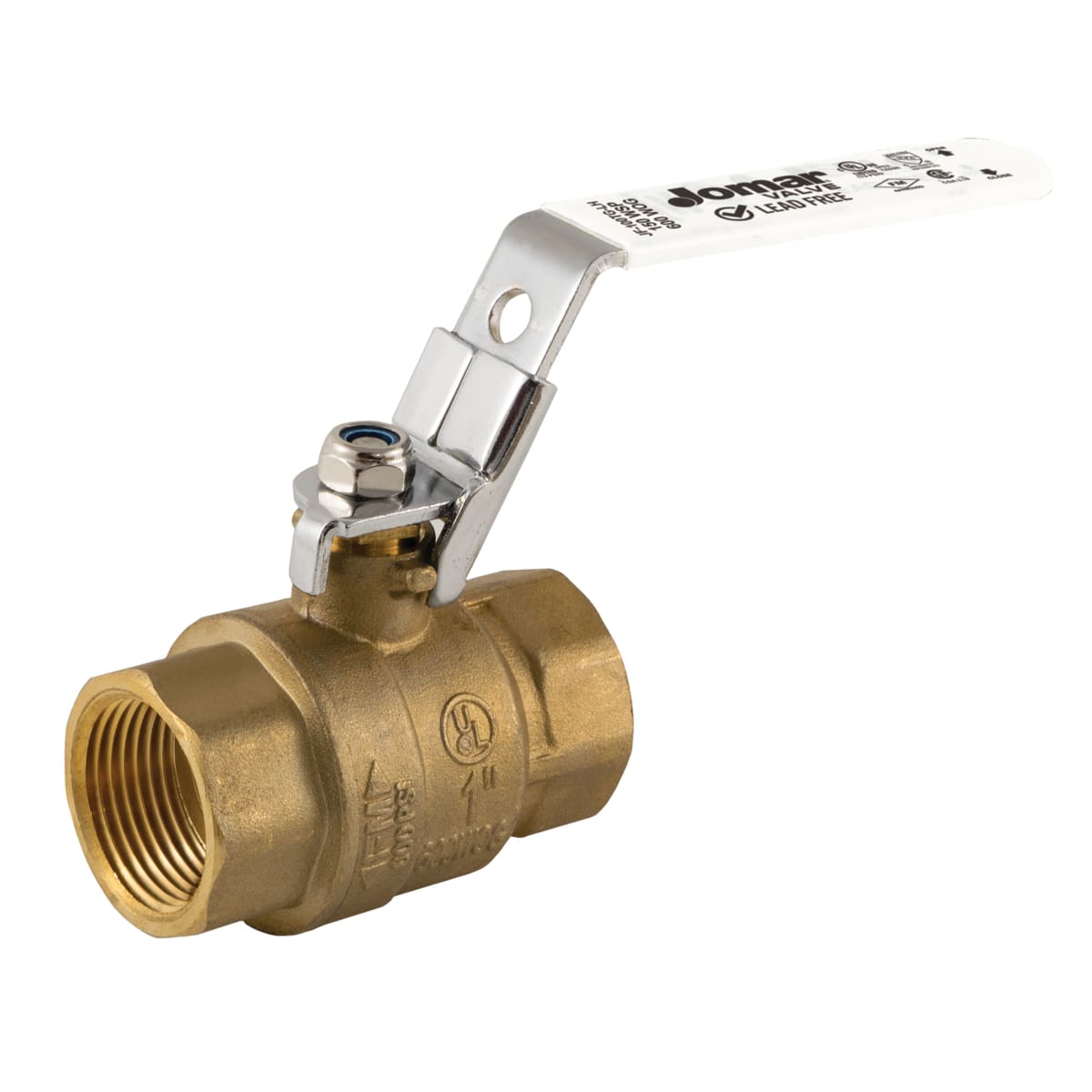

Jomar 100-103SSG-LH Full Port, 2 Piece, Threaded Connection, 60 WOG, Stainless Steel Ball and

Product Description

The Jomar Valve 100-103SSG-LH is a ball valve designed for professional plumbing and HVAC applications. This 2-piece valve features a full port design for maximum flow. With a threaded connection style and a pressure rating of six hundred psi working gauge (WOG), it is suitable for various fluid handling needs.

• Two-piece construction with brass body
• 304 stainless steel ball for enhanced durability
• Latch-lock handle actuator for effective control

Product Highlights

This valve offers a reliable solution for controlling and regulating fluid flow in piping systems.

Product Information

Standard Information

• Manufacturer: JOMAR
• Type: 2-Piece

Technical Specifications

• Actuator Type: Latch-Lock Handle
• Ball Material: 304 Stainless Steel
• Body Material: Brass
• End Style: NPT
• Inlet to Outlet Length: 2.28 inches
• Nominal Size: 1/2 inch
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: Buna-N/PTFE
• Top to Inlet Center: 2.69 inches
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
