Jomar 100-103SSG Full Port, 2 Piece, Threaded Connection, 600 WOG, Stainless Steel Ball and

Product Description

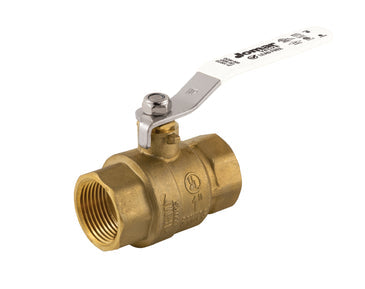

The Jomar 100-103SSG is a two-piece ball valve designed for threaded connections and intended for use in water applications. This valve features a full port design to provide maximum flow and is rated for 600 psi WOG. The valve is constructed with a stainless steel ball, ensuring durability and resistance to corrosion.

• Two-piece valve design
• Compatible with threaded connections
• Durable stainless steel construction

Product Highlights

This valve is suitable for various plumbing applications, including residential and commercial systems.

Product Information

Standard Information

• Manufacturer: Jomar
• MPN: 100-103SSG

Technical Specifications

• Ball Material: 304 Stainless Steel
• Body Material: Brass
• Orifice Size: 0.59 in
• Pressure Rating: 600 psi WOG
• Nominal Size: 1/2 in
• Softgoods Material: PTFE/Buna-N
• Inlet to Outlet Length: 2.28 in
• Top to Inlet Center: 1.81 in
• End Style: Thread
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
