Jomar 100-102SSGLH 3/8 jf-100tg-lh fp brz thrd ball valve

Product Description

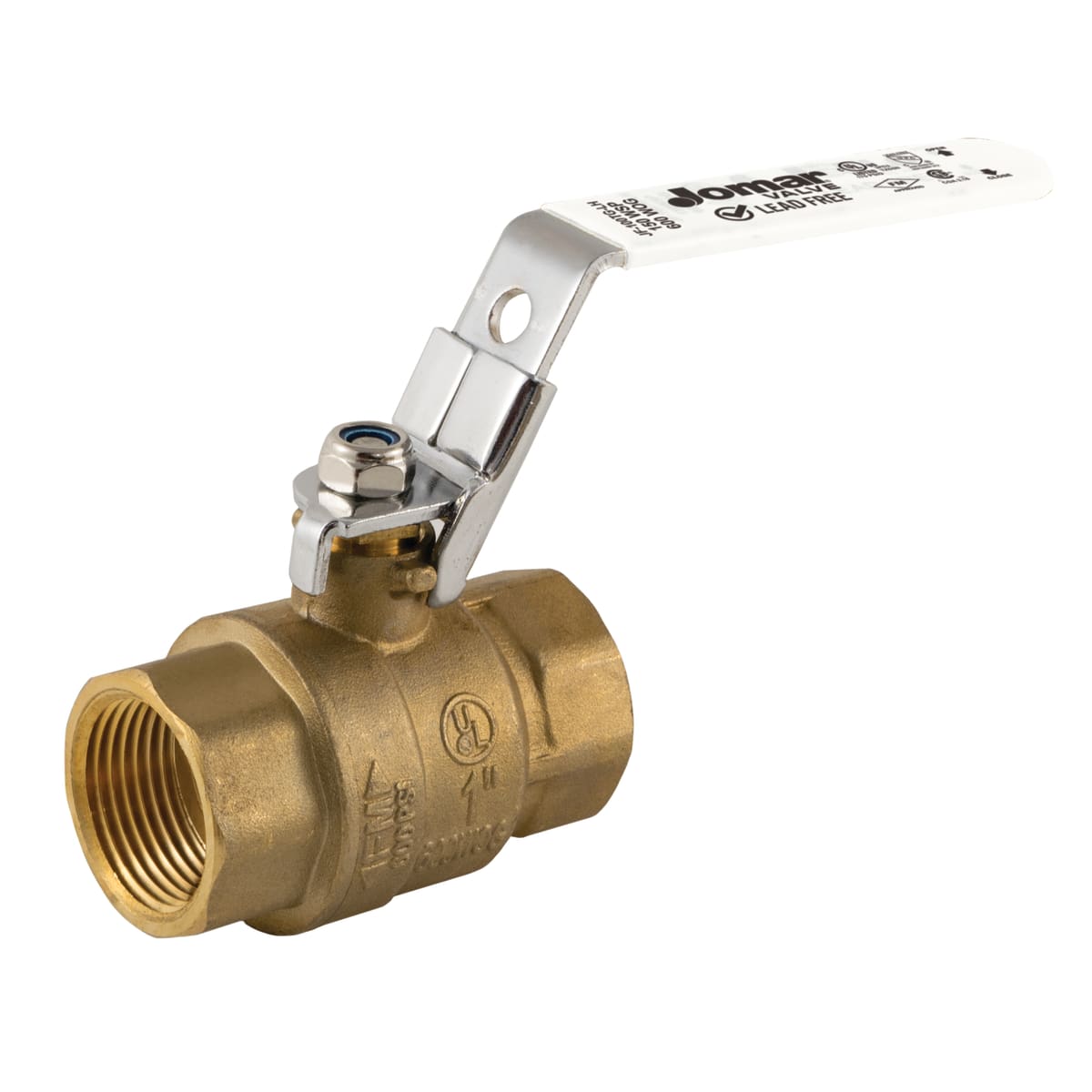

The JOMAR 100-102SSGLH is a Jo-Flo 2-Piece Full-Port Ball Valve, Model JF-100TG-LH, with a 3/8 IN nominal size and FNPT connection type. It has a pressure rating of 600 PSI (WOG) and 150 PSI (SWP). The valve features a brass body, a locking lever handle, and a 304 stainless steel ball and stem.

• Jo-Flo 2-Piece Full-Port Ball Valve
• Locking Lever Handle
• Lead Free

Product Highlights

This JOMAR ball valve features a brass body, stainless steel trim, and a locking handle. It is suitable for various applications requiring a reliable shut-off valve.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-102SSGLH

Technical Specifications

• Series/Model: Model JF-100TG-LH
• Nominal Size: 3/8 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (WOG), 150 PSI (SWP)
• Body Material: Brass
• Handle Operator Type: Locking Lever Handle
• Handle Material: Steel
• Stem Material: 304 Stainless Steel
• Trim Material: 304 Stainless Steel Ball
• Packing Material: PTFE
• Gland: Brass
• Seat Material: PTFE
• Body And Gland Material Specification: UNS C46400
• Finish/Color: Chrome Plated Handle
• Width: 1.73 IN
• Lead Free: Yes
• Other Physical Dimension: 2.63 IN Inlet Center To Top Of Handle, 4.06 IN Handle Length
• Ball Material: 304 Stainless Steel
• End Style: NPT
• Inlet to Outlet Length: 1.73 in
• Port Type: Full
• Top to Inlet Center: 2.63 in
• Type: 2-Piece
• Manufacturer: JOMAR
• MPN: JF-100TG-LH / 100-102SSGLH
• Brand: jomar
• Condition: New – Open box
