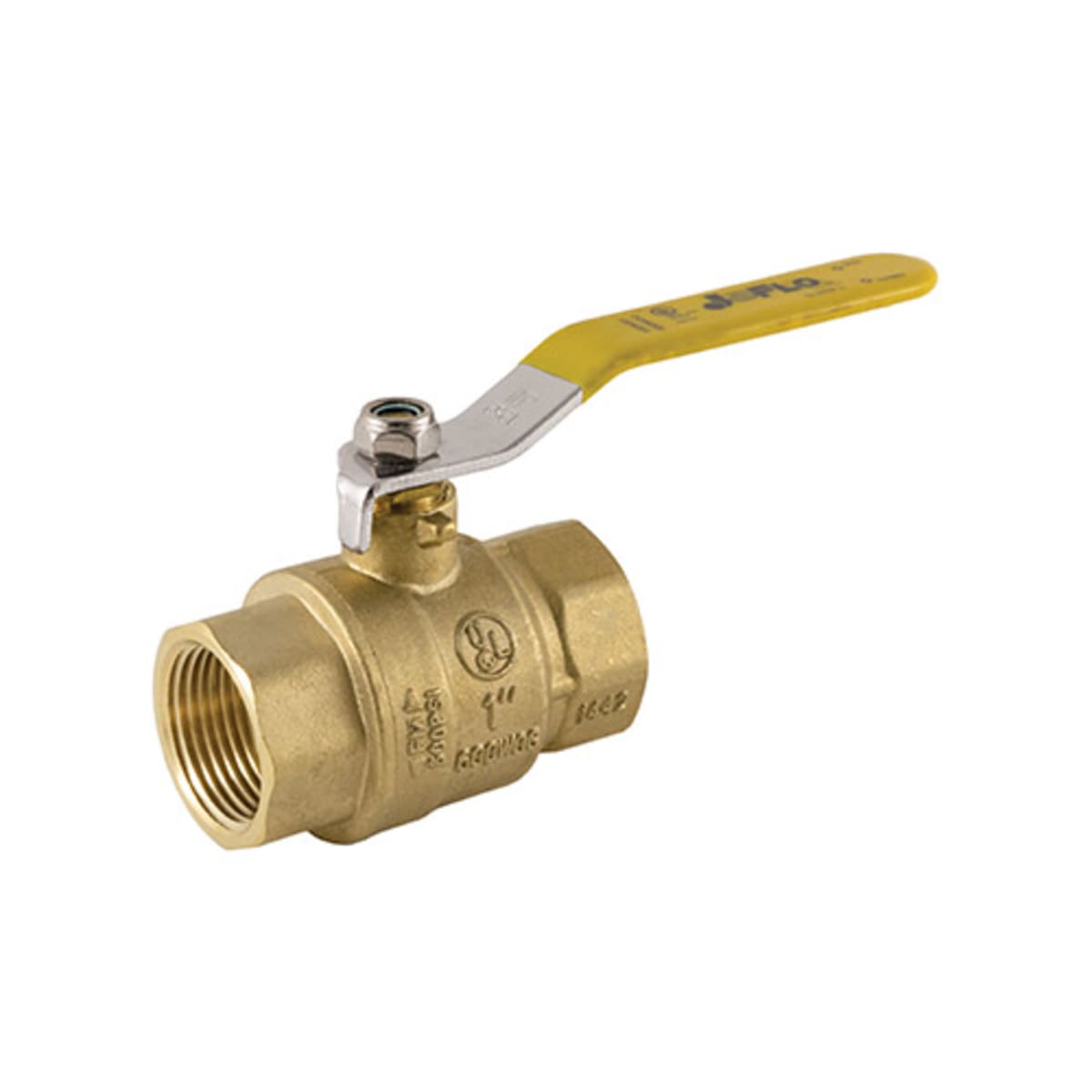

Jomar 100-102 Full Port, 2 Piece, Threaded Connection, 600 WOG

Product Description

The Jomar 100-102 is a two-piece ball valve designed for threaded connections. It supports a working pressure of up to six hundred psi WOG. This valve is constructed from chrome plated brass and features a full port design which allows for a smooth flow of fluids with minimal resistance.

• Two-piece construction for ease of installation
• Compatible with NPT threaded connections
• Leak tested for reliability

Product Highlights

This valve is ideal for applications requiring a reliable shut-off solution in piping systems.

Product Information

Standard Information

• Manufacturer: Jomar
• Model Number: 100-102

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: NPT
• Inlet to Outlet Length: 1.73 inches
• Nominal Size: 3/8 inches
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: Buna-N/PTFE
• Top to Inlet Center: 1.69 inches
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
