Jomar 100-101SSGLH JF-100TG-LH Ball Valve 1/4 IN

Product Description

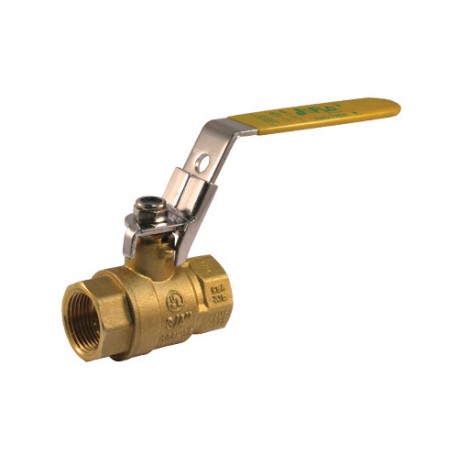

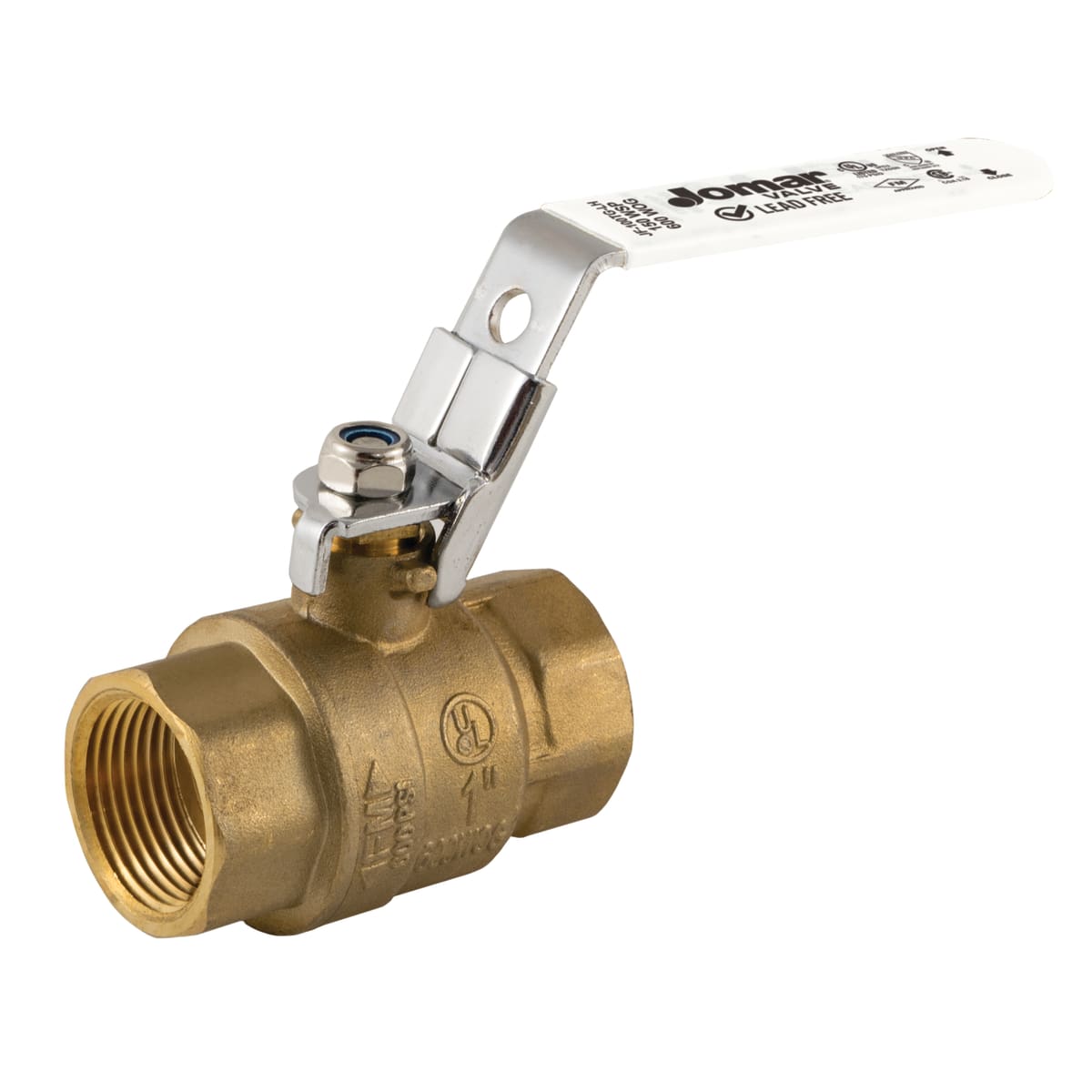

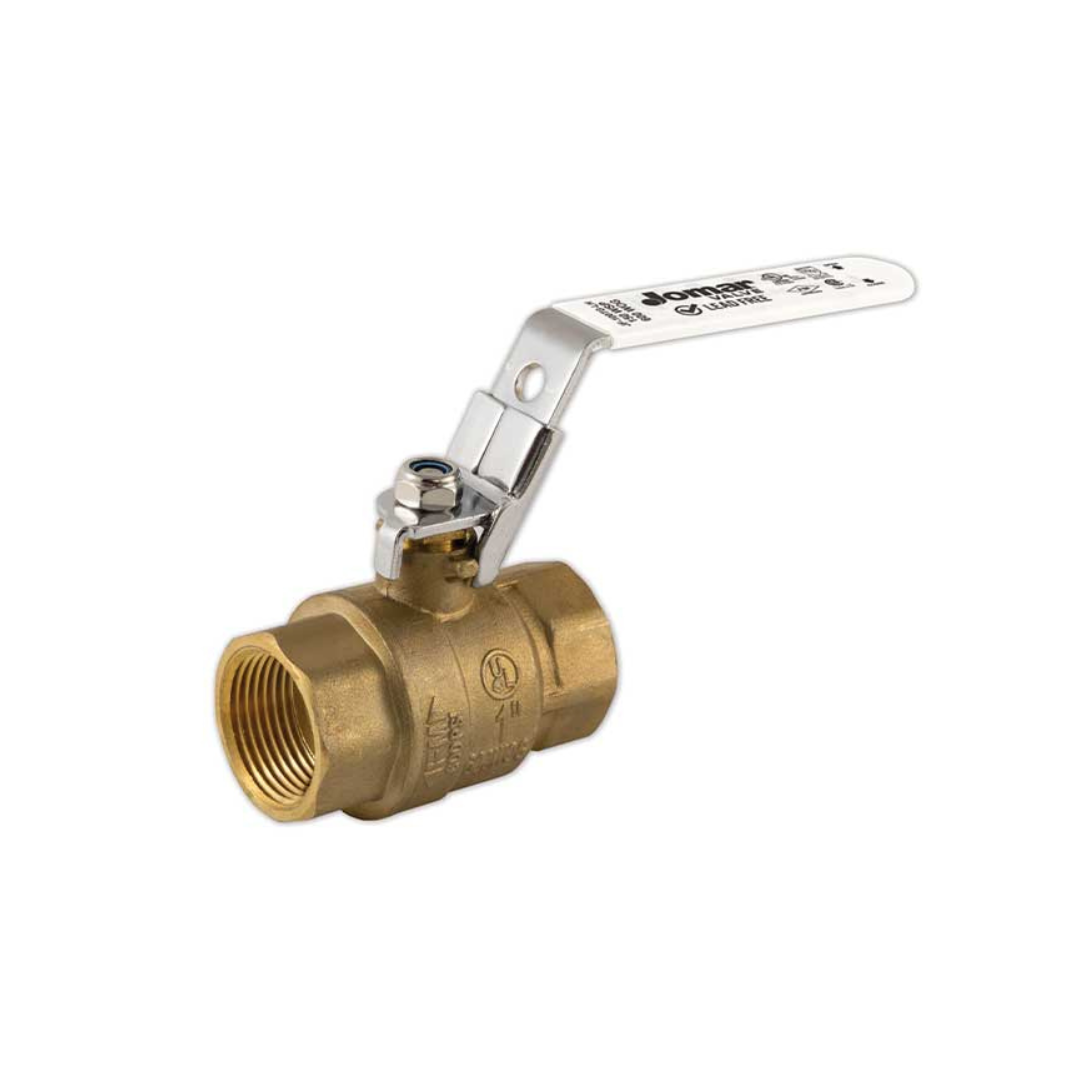

The JOMAR 100-101SSGLH JF-100TG-LH is a 1/4 IN lead-free brass ball valve. This two-piece, full-port valve features a threaded connection and stainless steel trim. Designed with a locking lever handle, it is rated for 600 PSI (WOG) and 150 PSI (SWP).

• Locking Lever Handle
• Lead Free
• Full Port

Product Highlights

This JOMAR ball valve features a dezincification resistant brass alloy and a blow-out proof stem. It is IAPMO certified and 100% leak tested.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-101SSGLH

Technical Specifications

• Series/Model: Model JF-100TG-LH
• Nominal Size: 1/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (WOG), 150 PSI (SWP)
• Body Material: Brass
• Handle Operator Type: Locking Lever Handle
• Handle Material: Steel
• Stem Material: 304 Stainless Steel
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Packing Material: PTFE
• Gland: Brass
• Seat Material: PTFE
• Body And Gland Material Specification: UNS C46400
• Finish/Color: Chrome Plated Handle
• Width: 1.73 IN
• Lead Free: Yes
• Other Physical Dimension: 2.63 IN Inlet Center To Top Of Handle, 4.06 IN Handle Length
• Ball Material: 304 Stainless Steel
• End Style: NPT
• Inlet to Outlet Length: 1.73 in
• Port Type: Full
• Top to Inlet Center: 2.63 in
• Type: 2-Piece
• WOG: 600
• Manufacturer: Jomar Valve
• Reference: 100-101SSGLH
• Condition: New
• Size: 1/4"
