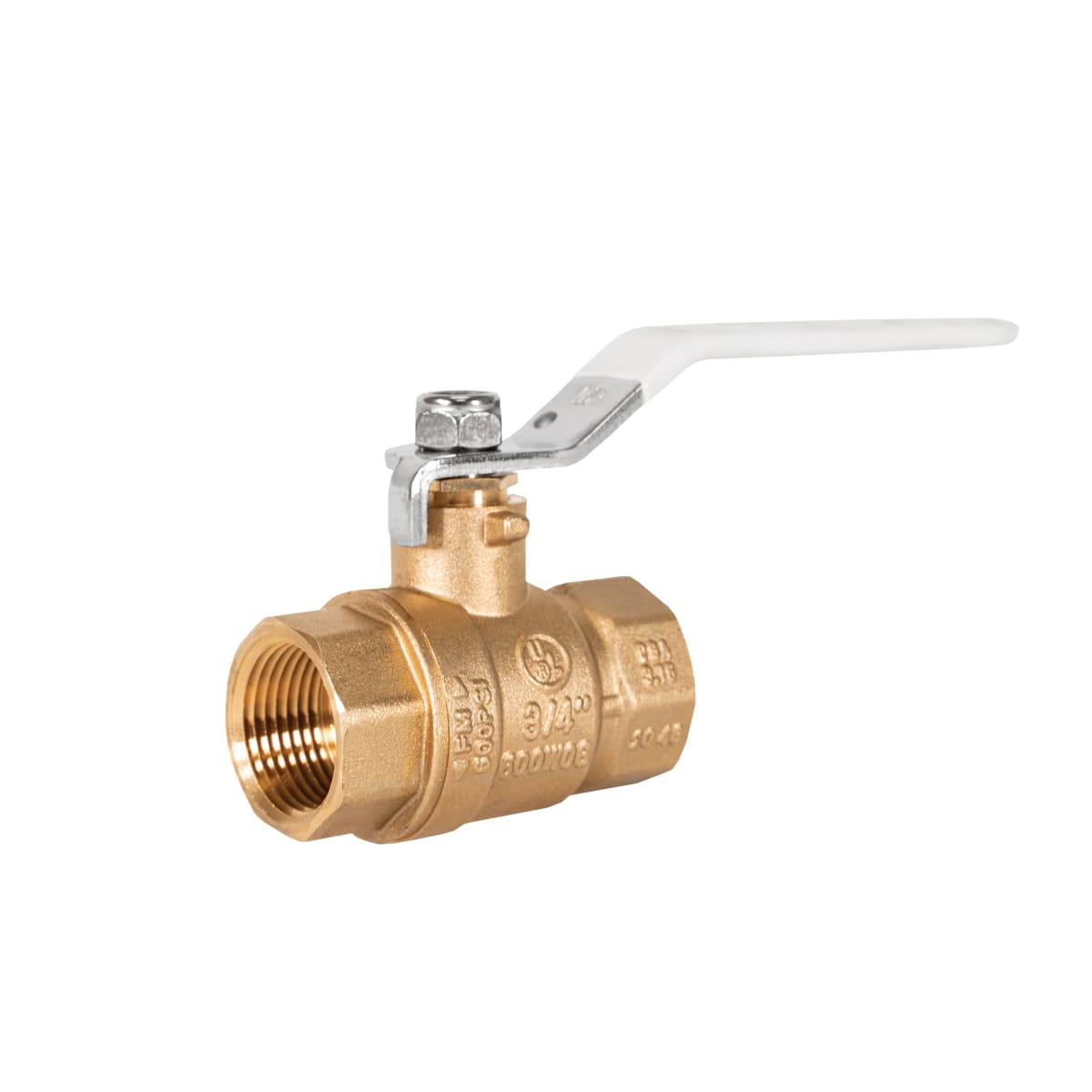

Jomar 100-101SSG Full Port, 2 Piece, Threaded Connection, 600 WOG, Stainless Steel Ball and

Product Description

The Jomar 100-101SSG is a ball valve designed for high-performance applications. It features a full port design with a two-piece construction ideal for various piping systems. This valve uses stainless steel for durability and resistance to corrosion.

• Constructed with 304 stainless steel ball for long-lasting performance.
• Brass body and PTFE seat trim ensure reliability under pressure.
• Designed for 600 psi WOG, suitable for water, oil, and gas applications.

Product Highlights

This valve is efficient for controlling flow with minimal pressure drop, making it suitable for HVAC, plumbing, and industrial settings.

Product Information

Standard Information

• Brand: Jomar
• MPN: 100-101SSG

Technical Specifications

• Ball Material: 304 Stainless Steel
• Body Material: Brass
• End Style: NPT
• Inlet to Outlet Length: 1.73 inches
• Nominal Size: 1/4 inches
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: Buna-N/PTFE
• Top to Inlet Center: 1.69 inches
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Type: 2-Piece
