Johnson Level Tool 700 Magnetic Protractor Angle Locator

Product Description

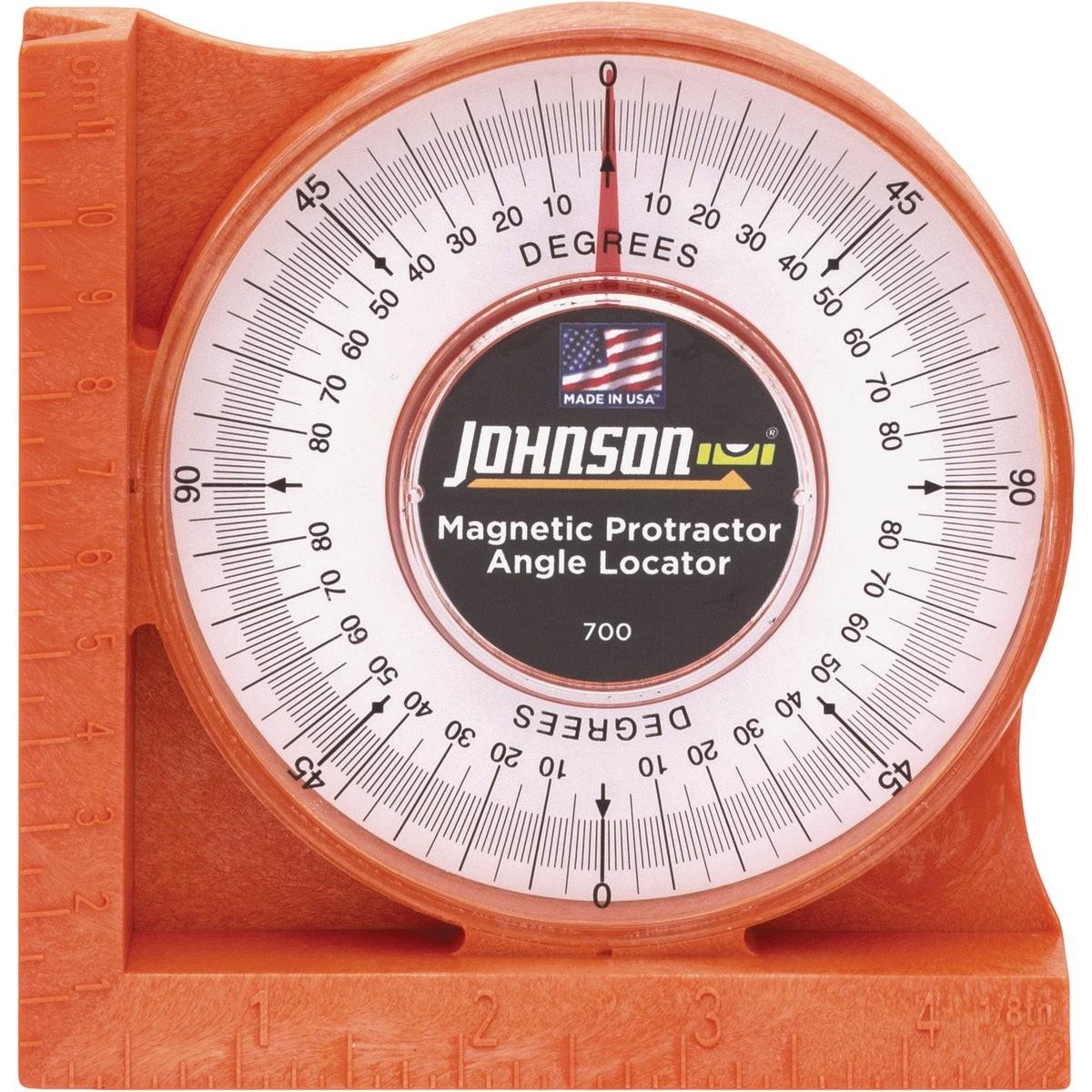

The JOHNSON LEVEL TOOL 700 is a plastic magnetic protractor angle locator designed for fast, accurate angle measurement on job sites and in the field. The body is constructed from high-impact molded plastic and features an easy-to-read acrylic lens printed with inch and metric graduations. The lens reads 0 degrees to 90 degrees across all four quadrants, giving tradespeople a clear reading regardless of orientation. An extra-strong ceramic magnet on one end holds the tool firmly to ferrous metal surfaces, while a V-groove edge on the opposite end seats cleanly over pipe and conduit for hands-free use. This tool weighs 0.506 pounds and measures 4.75 inches wide by 4.75 inches high.

The 700 angle locator suits a wide range of trade applications including plumbing, electrical, HVAC, and general construction. It is well suited for measuring pipe and conduit angles during layout and installation, checking surface pitch, and verifying angles on structural components. The magnetic base makes it a practical choice when working on metal ductwork, electrical enclosures, or any ferrous surface where hands-free measurement is needed. Both residential and light commercial installers will find it useful for everyday layout tasks.

Key Features

• Extra-strong ceramic magnet on one end for secure attachment to ferrous metal surfaces
• V-groove edge on opposite end seats over pipe and conduit without additional support
• Reads 0 degrees to 90 degrees in all four quadrants for versatile orientation
• High-impact molded plastic body resists jobsite wear
• Durable acrylic lens printed with both inch and metric graduations
• Compact 4.75 inch by 4.75 inch footprint fits in a tool pouch or bag

Compatibility

Designed as a general-purpose angle locator for use on pipe, conduit, flat surfaces, and ferrous metal components across plumbing, electrical, HVAC, and construction trades.

Installation Notes

No installation is required for this hand tool. Place the V-groove edge over pipe or conduit, or engage the ceramic magnet against any ferrous surface, then read the angle directly from the acrylic lens. Keep the lens clean and free of debris to ensure accurate readings. No calibration tools or fasteners are needed for standard use.

Technical Specifications

• Width: 4.75 inches
• Height: 4.75 inches
• Weight: 0.506 pounds
• Body Material: High-impact molded plastic
• Lens Material: Acrylic
• Magnet Type: Ceramic
• Graduation Scale: Inch and metric, 0 degrees to 90 degrees in 4 quadrants
• UPC: 00049448700004

Standard Information

• Brand: JOHNSON LEVEL TOOL
• Manufacturer Part Number: 700
