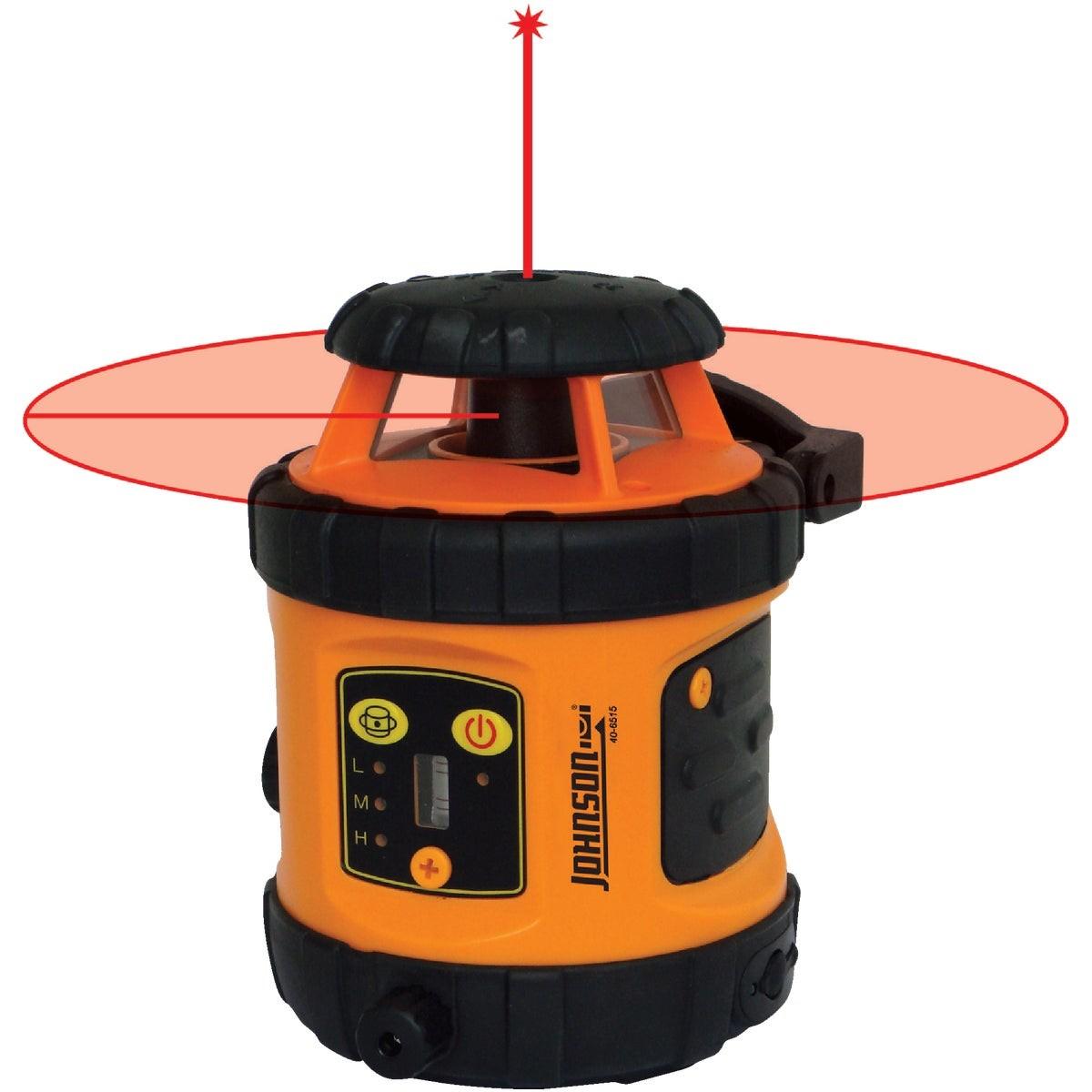

Johnson Level Tool 40-6517 Rotary Laser Level 800 Ft

Product Description

The JOHNSON LEVEL TOOL 40-6517 is a self-leveling rotary laser level designed for small to mid-size jobsite layout and leveling work. It self-levels in the horizontal plane and manually levels in the vertical plane, giving installers flexibility across a range of applications. An illuminated vertical vial aids alignment in low-light conditions. Rotational speed is adjustable at 200, 400, or 600 RPM to match the task at hand. Visual and audible out-of-level alarms trigger when the unit exceeds its self-leveling range. A locking compensator protects the internal pendulum during transport and storage.

This rotary laser level is suited for residential and light commercial construction tasks including concrete formwork, framing, drop ceiling layout, grading, and site leveling. The 800-foot operating range supports use across larger floor plates or outdoor grading work. The kit includes four AA alkaline batteries, a wall and ceiling mount, an 8-foot grade rod, a detector with two AAA alkaline batteries and clamp, tinted glasses, a magnetic target, an elevating tripod, and a hard-shell carrying case. Licensed contractors, framers, and finish carpenters are the primary installers of this equipment.

Key Features

• Self-levels in the horizontal plane for fast, accurate setup
• Manual leveling in the vertical plane for plumb line applications
• Adjustable rotational speed: 200, 400, or 600 RPM
• Illuminated vertical vial for visibility in dim conditions
• Visual and audible out-of-level alarms for accuracy assurance
• Locking compensator protects pendulum during transport
• Complete kit includes detector, grade rod, tripod, and hard-shell case

Compatibility

Designed for use as a standalone rotary laser leveling system for small jobsite applications. Included detector and clamp are matched to this unit as supplied in the kit.

Installation Notes

Setup and operation of this rotary laser level is typically performed by licensed contractors, framers, or survey technicians. Before use, ensure the unit is positioned on a stable, level surface or properly mounted to the included elevating tripod. Engage the locking compensator before moving or transporting the unit to prevent damage to the internal pendulum. Never look directly into the laser beam, and use the included tinted glasses when working in the beam path.

Technical Specifications

• Operating Range: 800 feet
• Rotational Speed: 200, 400, or 600 RPM (adjustable)
• Self-Leveling Plane: Horizontal (automatic); Vertical (manual)
• Battery Type (Unit): 4 AA alkaline
• Battery Type (Detector): 2 AAA alkaline
• Weight: 21.465 pounds
• Sold As: Each

Standard Information

• Brand: JOHNSON LEVEL TOOL
• Manufacturer Part Number: 40-6517
