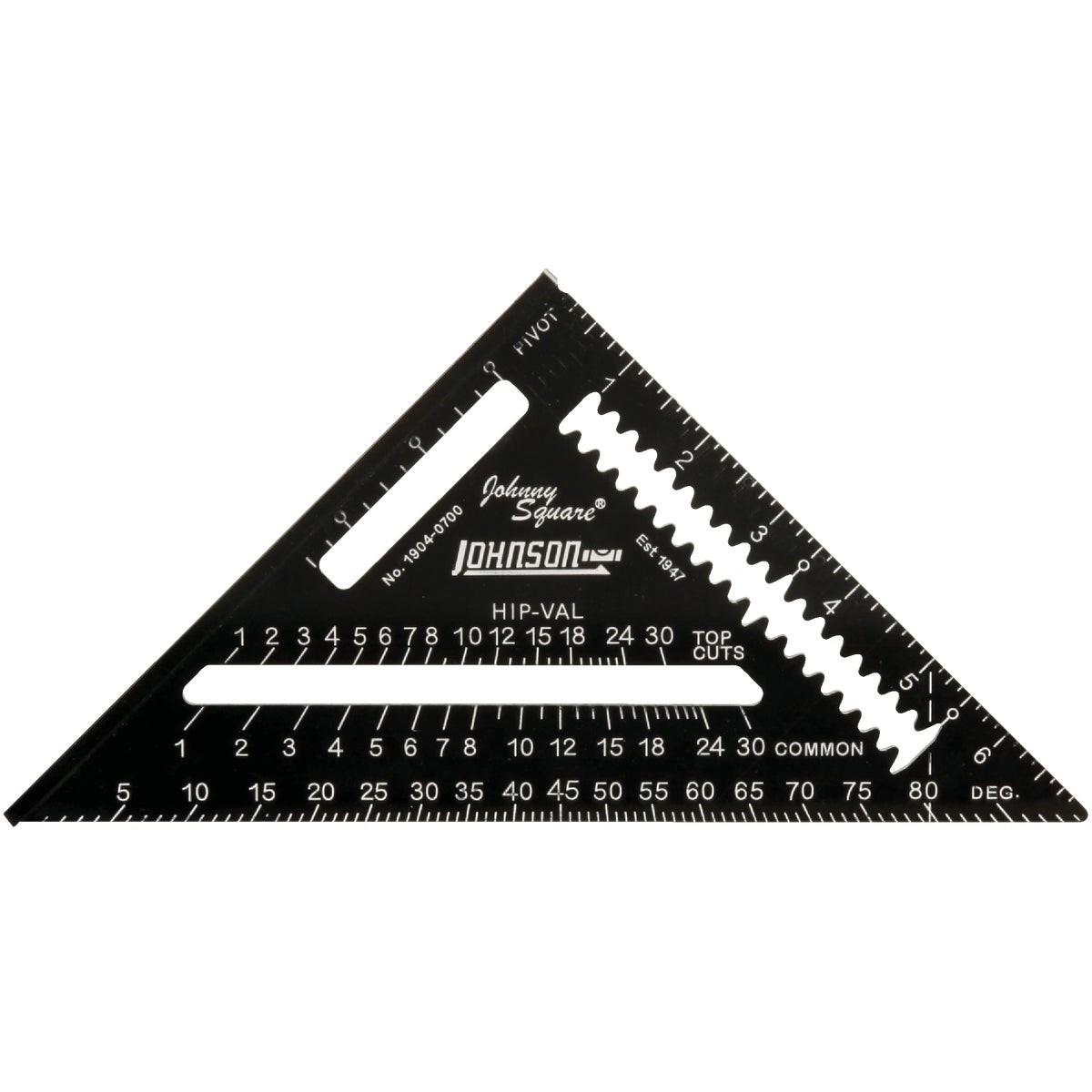

Johnson Level Tool 1904-0700 Aluminum Rafter Square 7 Inch

Product Description

The JOHNSON LEVEL TOOL 1904-0700 is a 7-inch aluminum rafter square designed for layout and angle work on job sites. The body is machined using CNC processes for consistent edge accuracy and long-term durability. A low-glare anodized finish protects the surface while keeping laser-etched graduations and numbers highly readable in variable lighting conditions. The thick edge doubles as a reliable saw guide, and continuous scribing notches along the body support rip-cut layout. Weighing 0.518 pounds, this square is light enough for all-day use without sacrificing rigidity. Carpenters, framers, and general contractors are the primary users.

The 1904-0700 is suited for residential and light commercial framing, roofing layout, stair work, and general carpentry. The 1/8-inch scale graduations and marked 45-degree miter lines make it practical for repetitive angle cuts and quick field measurements. Its compact 7-inch format fits easily in a tool pouch and is well suited for work in tight or elevated spaces where a full-size framing square is impractical.

Key Features

• CNC-machined aluminum body for consistent edge accuracy and durability
• Low-glare anodized finish reduces eye strain in bright job-site conditions
• Laser-etched EZ Read graduations in 1/8-inch scale for clear, lasting markings
• Thick edge functions as a saw guide for repeat cuts
• Continuous scribing notches designed for rip-cut layout
• Pre-marked 45-degree miter cut lines for fast angle layout

Compatibility

Designed as a general-purpose 7-inch aluminum rafter square for use in framing, roofing, and carpentry applications across residential and light commercial construction.

Installation Notes

No power source or mechanical installation is required for this tool. Inspect the edges for damage before use to ensure measurement accuracy. Keep the anodized surface clean and dry to prevent corrosion and maintain legibility of etched markings. Store flat to avoid bending the body over time.

Technical Specifications

• Body Material: Aluminum
• Size: 7 inches
• Scale Graduation: 1/8 inch
• Finish: Anodized low-glare
• Marking Method: Laser-etched
• Weight: 0.518 pounds
• UPC: 00049448190409

Standard Information

• Brand: JOHNSON LEVEL TOOL
• Manufacturer Part Number: 1904-0700
