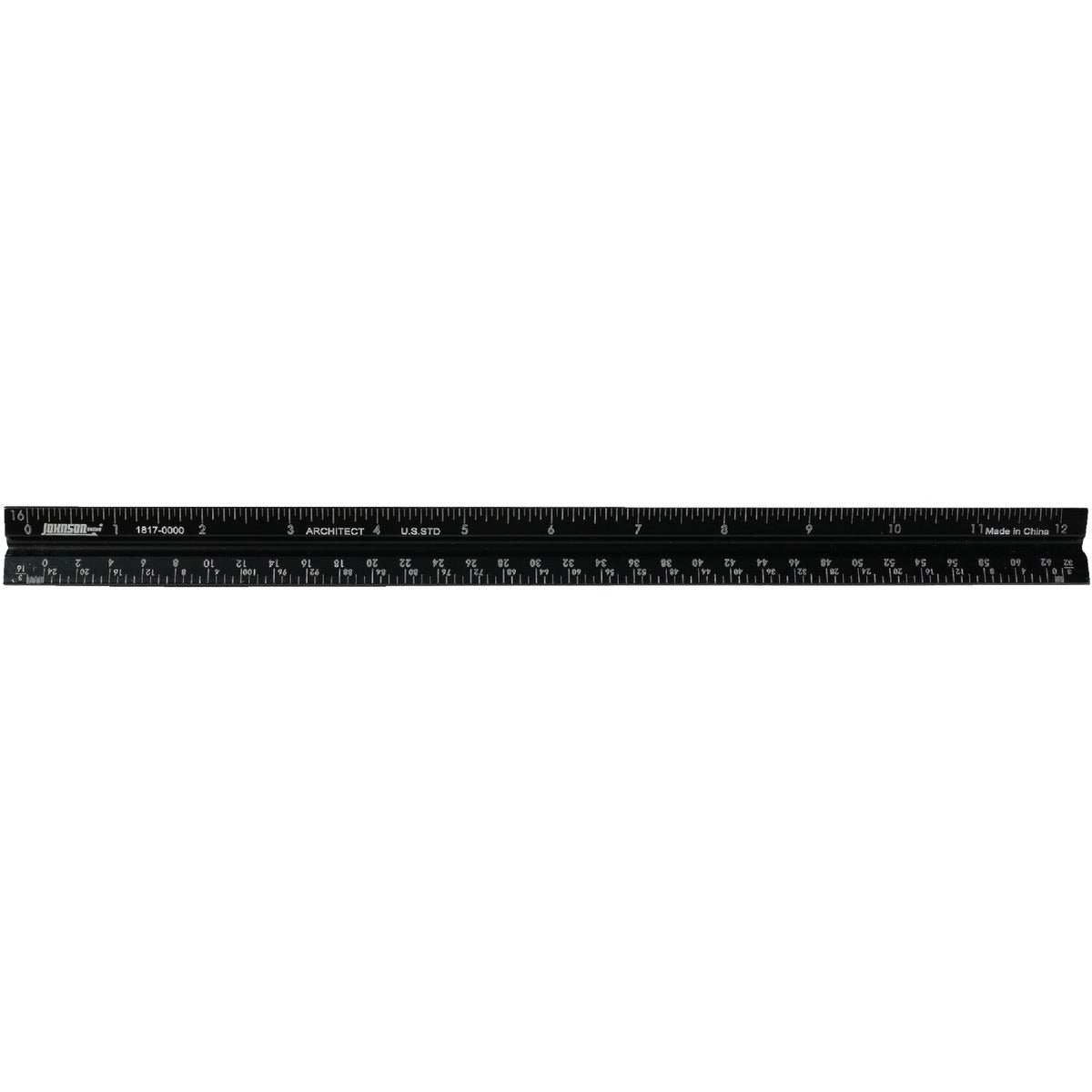

Johnson Level Tool 1817-0000 Architect Scale Ruler 12 in

Product Description

The JOHNSON LEVEL TOOL 1817-0000 is a 12-inch aluminum triangular scale ruler designed for architects, designers, and drafters who need accurate scaled measurements on plans and drawings. Constructed from extruded aluminum with an anodized finish, it resists wear and corrosion through regular job-site and office use. Graduations are laser etched for long-term legibility and precision. The ruler carries ten U.S. standard architectural scales on three faces, with individual divisions down to 1/16 inch, making it a reliable go-to instrument for reading and marking scaled construction documents.

This triangular scale is suited for residential and commercial architectural drafting, plan review, and field takeoffs. It covers a full set of common architectural ratios used in construction drawing sets. The anodized aluminum body keeps the tool lightweight while maintaining structural rigidity through repeated use. Architects, engineers, interior designers, and construction estimators will find it fits standard drafting workflows without modification.

Key Features

• Extruded aluminum body with anodized finish for durability and corrosion resistance
• Laser etched graduations for lasting, high-contrast readability
• 12-inch length covering ten U.S. standard architectural scales: 3, 1-1/2, 1, 3/4, 3/16, 3/32, 1/2, 1/4, and 1/8 inch per foot
• Individual scale divisions to 1/16 inch for fine measurement accuracy
• Triangular cross-section provides three working faces in one compact tool
• Lightweight at 0.278 pounds, easy to carry and handle on a drafting table or job site

Compatibility

Designed as a standard architectural triangular scale ruler compatible with typical drafting and plan-review workflows using U.S. standard inch-per-foot scale conventions.

Installation Notes

No installation is required for this hand tool. Store flat or in a protective sleeve to prevent graduation wear and surface scratching. Avoid using the edges as a cutting guide against utility knives or other sharp tools, as this can damage the etched graduations and deform the aluminum edge.

Technical Specifications

• Length: 12 inches
• Material: Extruded aluminum with anodized finish
• Graduation Method: Laser etched
• Scales Included: 3, 1-1/2, 1, 3/4, 3/16, 3/32, 1/2, 1/4, 1/8 inch per foot
• Smallest Division: 1/16 inch
• Weight: 0.278 pounds
• Unit of Measure: Each

Standard Information

• Brand: JOHNSON LEVEL TOOL
• Manufacturer Part Number: 1817-0000
