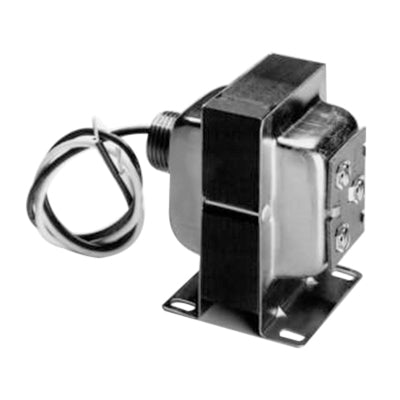

Johnson Controls Y66T12-0 Transformer 120/208/240V Primary 24V Secondary

Product Description

The Johnson Controls Y66T12-0 Class 2 Transformer efficiently steps down primary voltage from 120/208/240V to a 24V secondary voltage, making it highly suitable for 24 VAC HVAC/R control systems. This multi-tap primary transformer is designed to provide power for loads of 40 VA through 300 VA by utilizing its split-bobbin design for superior primary/secondary isolation.

• Split-bobbin design for optimal electrical isolation.
• Multi-tap primaries for versatile application and reduced inventory needs.
• Flexible mounting options, including foot, plate, or conduit hub mounting.

Product Highlights

This transformer is compliant with UL 1585, CSA C22.2 No. 66 standards in both the United States and Canada, making it a reliable choice for digital controllers, gas controls, motor actuators, and other systems requiring 24 VAC.

Product Information

Technical Specifications

• Primary Voltage: 120/208/240V
• Secondary Voltage: 24V
• VA Rating: 75VA
• Compliance: UL 1585, CSA C22.2 No. 66
• Mounting Options: Foot, Plate, or Conduit Hub
