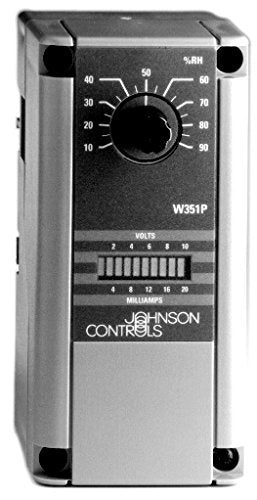

Johnson Controls W351PN-2C Series W351P Electronic Proportional Plus Integral Humidity Control 10 to 90 Percent RH with HE-67S3-0N00P Humidity Transmitter

Product Description

The Johnson Controls W351PN-2C Series W351P Electronic Proportional Plus Integral Humidity Control with HE-67S3-0N00P Humidity Transmitter offers accurate humidity control for diverse environments. It features proportional outputs of 0 to 10 VDC and 0 to 20 mA, and includes an option for Proportional Plus Integral control to maintain setpoints despite load shifts.

• Field selectable proportional only or proportional plus integral control
• Surface or DIN rail mounting
• Ten segment LED displays percent of output signal

Product Highlights

This device supports both humidification and dehumidification modes with an adjustable range of 10 to 90 percent RH. It integrates seamlessly with the HE-67S3-0N00P series of humidity transmitters and can be paired with various modules for enhanced functionality.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: W351PN-2C

Technical Specifications

• Humidity Range: 10 to 90 percent RH
• Throttling Range: 2 to 20 percent RH
• Proportional Outputs: 0 to 10 VDC, 0 to 20 mA
• Mounting: Surface or DIN rail
• Display: Ten segment LED
